Alemite 339413 Service Manual

Description and Operation
"RAM" air motor model 339413 series power a
variety of fluid and material reciprocating pumps.
The pump tube assembly is secured to the motor
with the nuts and bolts equipped with the motor. This
hardware utilizes keepers (part of the pump) that hold
the body of the pump tube to the motor. See Figure 3.
Models 339413 and 339413-A1
The difference between these models is the standard
of thread for the air inlet. Refer to Figure 1.
Installation Operation
IMPORTANT: A moisture separator/fil-
ter should be used to prevent contamina-
tion and the washout of lubricant.
The motor is packed with Teflon lubricant and
requires no additional lubrication except during service.
Lubricator
Alemite, LLC recommends to operate the motor
without an air line lubricator.
CAUTION
Should an air line lubricator be installed, never
allow the motor to operate without lubrication
(minimum 10W oil) or the warranty will be void.
Motor Operation
WARNING
Read the label on the motor prior to
operation. Personal injury can occur.
Pneumatically actuated pilot valves (one set at each
end of a directional spool) cause the directional spool to
shift. The directional spool directs air pressure to one
side of the motor's piston and allows air to exhaust
from the opposite side.
670782
and is not to be copied, used, or disclosed to others without express written permission.
Service Guide
Air Motor
167 Roweland Avenue, Johnson City, Tennessee 37601
www.alemite.com
Copyright
This document contains confidential information that is the property of Alemite, LLC
Piston Diameter x Stroke
Air Motor
Model
Inches
339413
3 x 3-5/16
339413-A1
* For information on the maximum air pressure for the air motor,
please refer to the pump's Service Guide.

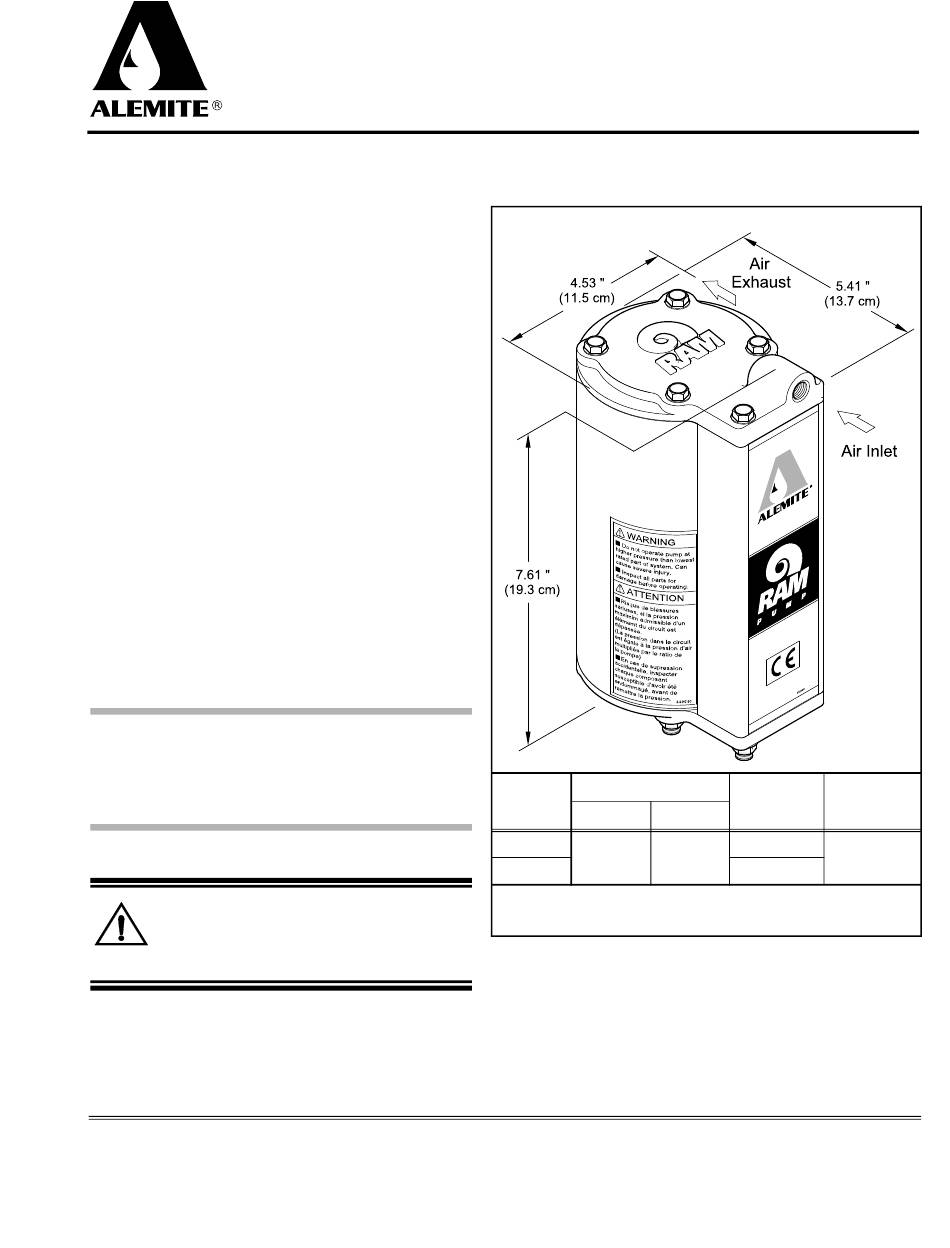

Figure 1 Air Motor Model 339413 Series
Pilot ports in the cylinder control the pilot valves as the
ports are uncovered by the piston.
NOTE: These air motors are not available to be
purchased separately. However, a kit can be pur-
chased that includes the entire motor. See Figure 3.
