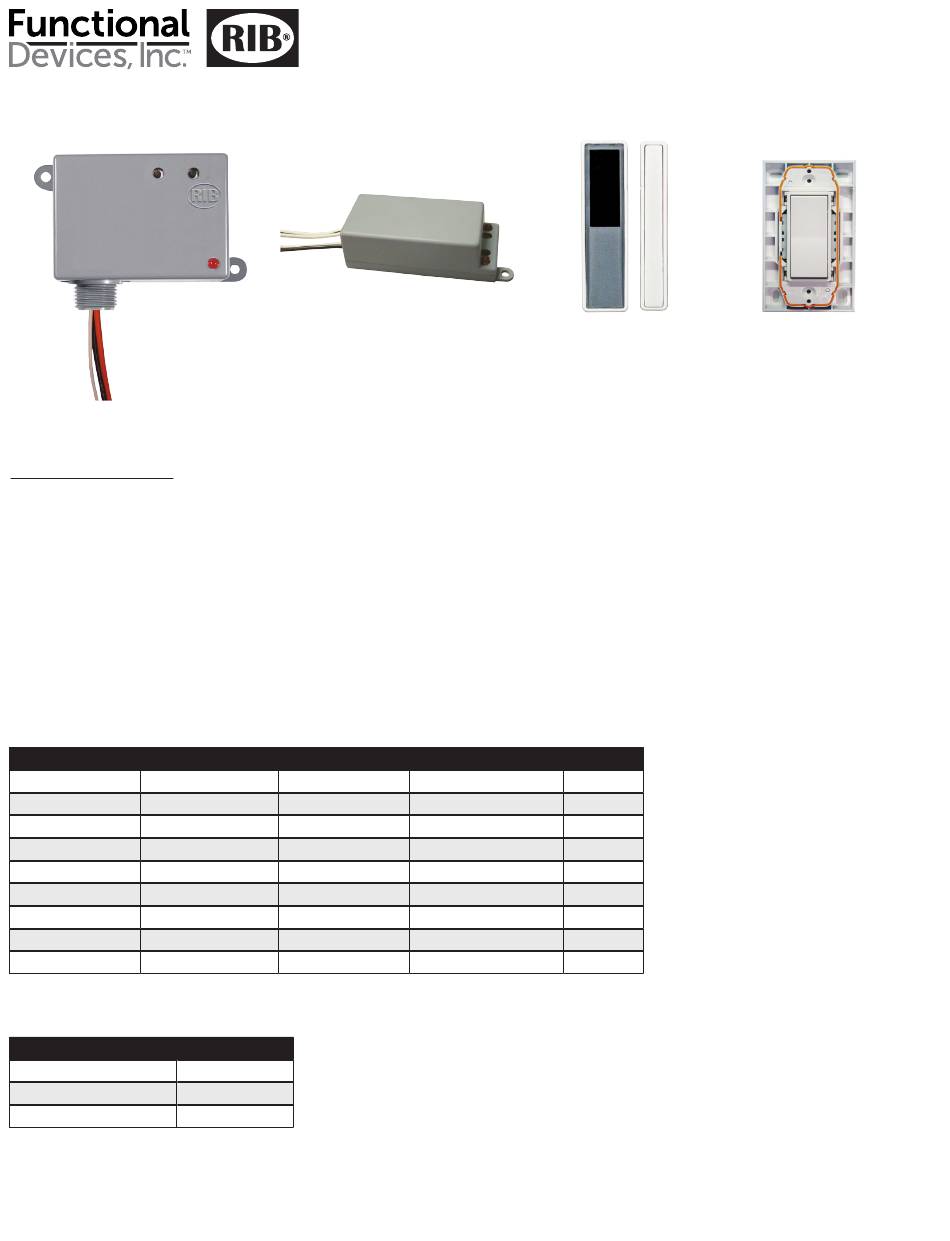

Functional Devices RIBW24B-EN3 Manual

RIBWxxxB-EN3
Getting Started
• Plan where you will mount each receiver and transmitter.
• Avoid transmitting along a length of wall, sharp angles and large obstructions.
• Avoid mounting inside a metal enclosure.
• Typical range is 100' line of sight.
• Link devices to each other before installing.
• All RIBs must be powered during Link.
• RIBWxxxB-EN3 is both a transmitter and a receiver.
• RIBWxxC-EN3 is only a receiver.
• Linking a RIB with another RIB puts the pair in Bi-directional mode.
• PHC Gateway Controller can also link with a RIB and be Bi-directional.
• Relay output state is saved at power loss. Relay output is restored when power is recovered.
(Exception: RIBW24B-EN3 will not save last state when powered from 24Vdc).
• Each Relay can be Linked to up to 30 transmitters of any combination.
902 MHz Model Power Input (Vac)
RIBW24B-EN3 24 ac/dc
RIBW01B-EN3 120
RIBW208-EN3 208
RIBW240B-EN3 240
RIBW277B-EN3 277
RIBW01C-EN3 120
RIBW02C-EN3 208-277
WDWS-EN3 None
WWS-EN3 None
Compatible Devices from other Manufacturers
Device EEP
PHC Gateway Controller A5-38-08
Keycard F6-02-02
Occupancy Sensor A5-07-01
393231
902 MHz Wireless Relays Application Manual
Bulletin B1867
RIBWxxC-EN3
Contact Rating (A) Transmission Source
20 Dry-Contact
20 Dry-Contact
20 Dry-Contact
20 Dry-Contact
20 Dry-Contact
5 NA
5 NA
NA Contact Closure
NA Button Press
WDWS-EN3
EEP
A5-30-02
A5-30-02
A5-30-02
A5-30-02
A5-30-02
A5-30-02
A5-30-02
D5-00-01
F6-02-02
WWS-EN3
