Operating Manual
TRACSCAN 2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRACSCAN 2.0 and is the answer not in the manual?

Questions and answers

Summary of Contents for SIMTEC TRACSCAN 2.0

  • Page 1 Operating Manual TRACSCAN 2.0...
  • Page 2 Operating Manual TRACSCAN 2.0 V2.0, 2022-05 2 / 36...

  • Page 3: Table Of Contents

    Operating Manual TRACSCAN 2.0 Table of Contents Safety Instructions ..........................5 Introduction ............................6 Quick Guide ............................7 Instrument .............................. 8 4.1. Overview .............................. 8 4.1.1. Control Panel ........................... 9 4.1.2. Case ..............................9 4.2. Licensing ............................. 10 4.3. Charging ............................. 10 4.4.
  • Page 4 Operating Manual TRACSCAN 2.0 8.7. Connection Settings ........................... 31 8.8. Options ............................... 32 Technical Data............................33 Glossary ................................. 34 References ..............................35 V2.0, 2022-05 4 / 36...

  • Page 5: Safety Instructions

    Operating Manual TRACSCAN 2.0 1. Safety Instructions To reduce the risk of injury or damage, read these safety instructions carefully and keep them at hand when setting up, using, and maintaining this instrument. • The instrument weighs about 7.5 kg. Always use the handle to carry the instrument. When transporting the instrument longer distances, use the case.

  • Page 6: Introduction

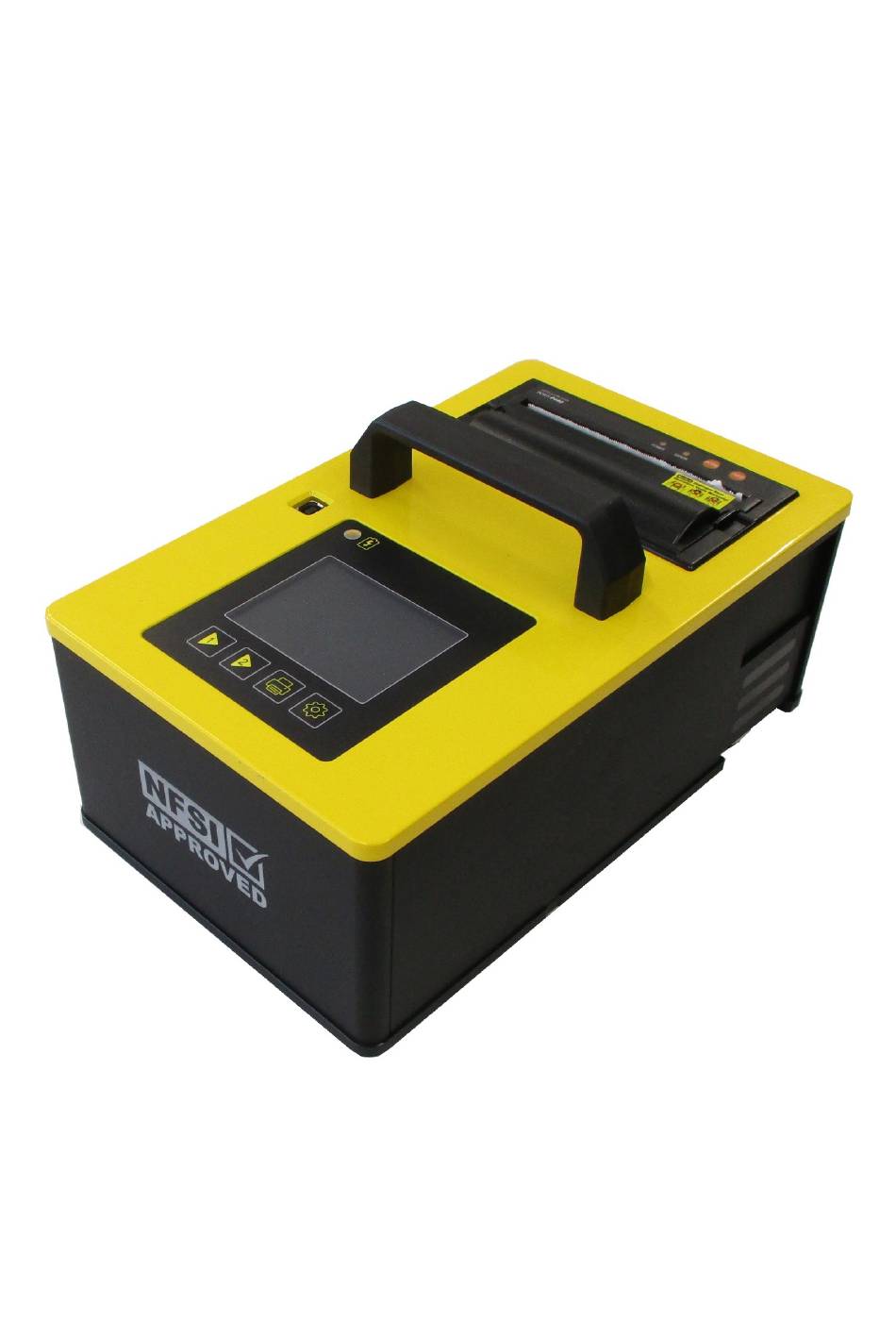

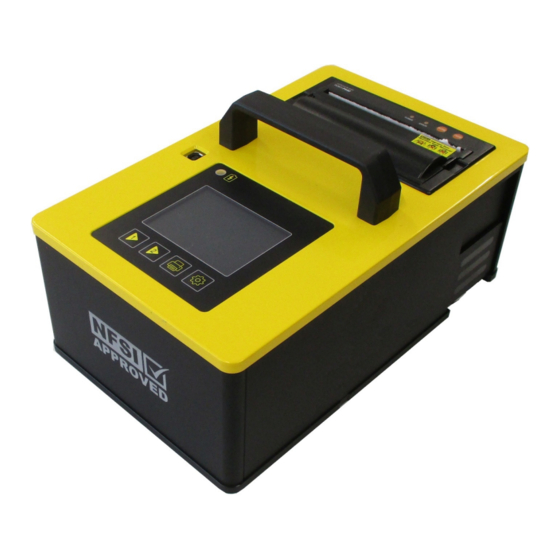

    Operating Manual TRACSCAN 2.0 2. Introduction The TRACSCAN 2.0 instrument is a measuring instrument for precise testing of the static (SCOF) and dynamic coefficient of friction (DCOF) of walkway surfaces. The instrument supports a range of methods for both wet and dry testing. It is equipped with a thermal printer that can be used to print out measurement results and all parameters.

  • Page 7: Quick Guide

    Operating Manual TRACSCAN 2.0 3. Quick Guide 1. Select Measurement Location and Prepare Instrument Choose your location based on the measurement task. Ensure that all drive wheels are dry and free of dust or sand. Clean the wheels with a damp cloth and dry them before staring a measurement.

  • Page 8: Instrument

    Operating Manual TRACSCAN 2.0 4. Instrument 4.1. Overview Figure 1: TRACSCAN Top View V2.0, 2022-05 8 / 36...

  • Page 9: Control Panel

    During operation, the functions of the buttons depend on the current context, i.e., will have different functions. For details, see section [3.6.1]. 4.1.2. Case The TRACSCAN 2.0 is shipped in a robust case. The case offers space for the instrument and all accessories. Figure 2: TRACSCAN Case V2.0, 2022-05...

  • Page 10: Licensing

    Contact your distributor to obtain a license key for unlimited operation. 4.3. Charging The TRACSCAN 2.0 is fitted with a rechargeable battery. A standard USB A/B cable and charger is included for recharging the battery, see section [9] for technical data.

  • Page 11: Location Code

    Operating Manual TRACSCAN 2.0 Overview of supported stand- Open Instrument Menu and navigate to ards and scales Settings … / Program Settings … Select Print Safety Limit Values All instrument and program Open Instrument Menu and navigate to settings Printout …...

  • Page 12: Menu System

    Operating Manual TRACSCAN 2.0 4.6. Menu System 4.6.1. Operation The instrument offers a menu system for programming, maintenance and diagnostics. To open the menu system, press the gear button for at least 2 seconds while the instrument is off. Open the main menu for program and instrument settings.

  • Page 13: Content

    Operating Manual TRACSCAN 2.0 4.6.2. Content The main menu (top level menu) comprises the following sub-menus: Main Menu Info General information about the instrument (e.g., serial num- ber, date of calibration) Settings Access to all program and instrument settings. See sections [3.6.4] and [3.6.5] for details.
  • Page 14 Operating Manual TRACSCAN 2.0 Parameter Description Type Ramp Defines if the test may be performed on a level surface or an inclined surface, i.e., ramp. The instrument uses the built-in in- clination sensor to detect the slope. Possible settings are Auto Detect, Level Only or Ignore.
  • Page 15 Operating Manual TRACSCAN 2.0 Test Program NFSI B101.3-2020 Parameter Name Default Value Can be altered Distance 15 cm  Required Test Foot Type SBR, see section [4]. Table 6: Test Program NFSI B101.3-2020 Test Program NFSI B101.1-2020 Parameter Name Default Value...
  • Page 16 Operating Manual TRACSCAN 2.0 Test Program German Ramp Parameter Name Default Value Can be altered COF Type SCOF Wet Measurement  Ramp Level, Only  Residence Time 0.1 s  Number of Samples  Discard 1 Sample  Lift / Lower Between Samples ...

  • Page 17: Instrument Settings

    Operating Manual TRACSCAN 2.0 Table 11: Test Program James Machine Modified program settings are saved automatically when the instrument shuts down. 4.6.5. Instrument Settings Parameter Description Basic Settings Language Selects the language for Operation and Menu. Currently, German and English are supported.

  • Page 18: Archive

    Operating Manual TRACSCAN 2.0 Parameter Description never shown for ANSI and NFSI measurements, despite of the set- ting of this parameter. The Bluetooth Controller of the instrument can be Disabled, can be Bluetooth turned on if the instrument is turned on (value On Demand) or can be turned on if the instrument is turned on or is powered by USB (value Always On).

  • Page 19: Operating Data

    Operating Manual TRACSCAN 2.0 With menu Archive → Measurements, all archived measurements can be accessed. The menu shows the method and the average COF of the selected measurement; both a short and a long report can be printed. 4.8. Operating Data 4.8.1.

  • Page 20: Events

    Operating Manual TRACSCAN 2.0 Traction Motor Run time of traction motor Table 13: Operating Data 4.8.3. Events The instrument stores up to 128 event records. If the event log reaches its maximum size, a new event will overwrite the oldest event record.

  • Page 21: Test Foot

    Operating Manual TRACSCAN 2.0 5. Test Foot 5.1. General Figure 7: Test Foot Top View Figure 8: Test Foot Bottom View The test foot consists of the Base and the Liner. A Memory Chip and two Magnetic Stubs are embedded in the base. The liner basically models a sole. Various liner materials are supported, see below.

  • Page 22: Preparation

    Operating Manual TRACSCAN 2.0 All test feet must be stored and handled appropriately. Do not store them near substances that evaporate (oil, any solvents). Test feet must never come into contact with oil or solvents. 5.2. Preparation As already mentioned, it must be ensured that the test foot is clean and free from any con- taminants or deep surface abrasions.

  • Page 23: Test Foot Preparation Tool

    The Test Foot Preparation Tool is a hand-operated, sanding tool specially designed for use with the TRACSCAN 2.0 test foot. It makes the task of sanding the test foot quick and easy and always precise, matching the exact curve of the test foot.
  • Page 24 Operating Manual TRACSCAN 2.0 The tool shall be used as follows: 1. Depending on the test method, ensure that the tool has 400 or 600 grit sandpaper in- stalled. 2. Take off the circular cover by pulling up on the red knob and black handle at the same time.

  • Page 25: Troubleshooting

    Operating Manual TRACSCAN 2.0 7. Troubleshooting If a measurement or a printout cannot be started or successfully completed, an error message is displayed. Figure 14: Error Message The following table lists all error types, the probable error cause and how the error could be fixed.
  • Page 26 Operating Manual TRACSCAN 2.0 Error Description How to fix Invalid License Entered License Key is not valid. Contact service. License has expired and must be License Expired Contact service. renewed. Limited Operat- Instrument is for trial use, only. Contact service.
  • Page 27 Operating Manual TRACSCAN 2.0 Error Description How to fix Cannot Access Archive busy or not available. Contact service. Archive Drive motor should start but in- Drive Motor Fault Contact service. strument does not move. Printer is out of paper or paper roll...

  • Page 28: Tracman

    Start the installation by double-clicking on the installer file and follow the instructions dis- played by the installer. 8.4. Start Center Connect the TRACSCAN 2.0 instrument using an USB cable (USB-B on the instrument’s side). Open TracMan. The Start Center will be displayed. V2.0, 2022-05...
  • Page 29 Operating Manual TRACSCAN 2.0 Figure 15: TracMan Start Center TracMan scans the USB port(s) for an instrument. If an instrument is connected but is not found, open Connection Settings (see below). Once an instrument has been found, basic data of the connected instrument are displayed: •...

  • Page 30: Manage Measurement Reports

    Operating Manual TRACSCAN 2.0 8.5. Manage Measurement Reports Figure 16: TracMan Measurement Report Management With this view, the report data are managed. The view has three elements: • Toolbar: Select instrument, synchronise data, delete report, print report, save report as PDF.

  • Page 31: Update Firmware

    Operating Manual TRACSCAN 2.0 8.6. Update Firmware With this view, the firmware of the connected instrument can be updated. Select either the firmware provided by TracMan or select a firmware file stored on the computer’s file system. Click “Load this firmware into the device” and follow the instructions.

  • Page 32: Options

    Operating Manual TRACSCAN 2.0 Figure 20: TracMan Connection Settings • If no device (instrument) is displayed, press Refresh to re-scan the USB ports. If an instru- ment is found, it will be shown in the drop-down list. • If a device (instrument) is shown but was not displayed in the Start Center, select the de- vice in the drop-down list and press Apply.

  • Page 33: Technical Data

    Capacity 2.0 Ah The battery cannot be accessed by the user. It can be replaced by Replacement the manufacturer, if required. Table 16: Technical Data TRACSCAN 2.0 Charger Input 110 / 230 V, 50 / 60 Hz Output USB A, 5 V, 1.5 A or greater Table 17: Battery Charger V2.0, 2022-05...

  • Page 34: Glossary

    Operating Manual TRACSCAN 2.0 Glossary Coefficient of Friction, µ COF Type The COF type. Supported types are DCOF, SCOF and TCOF. DCOF Coefficient of Dynamic Friction; also known as coefficient of kinetic fric- tion µ Method The instruction or procedure, how the COF shall be measured. Often published as standard.

  • Page 35: References

    Operating Manual TRACSCAN 2.0 References ANSI A326.3-2017 American National Standard Test Method for Measuring Dynamic Co- efficient of Friction of Hard Surface Flooring Materials NFSI B101.0-2021 National Floor Safety Institute B101.0 Walkway Surface Auditing Procedure for the Measurement of Walkway Surface Traction NFSI B101.1-2020...
  • Page 36 Operating Manual TRACSCAN 2.0 V2.0, 2022-05 36 / 36...
