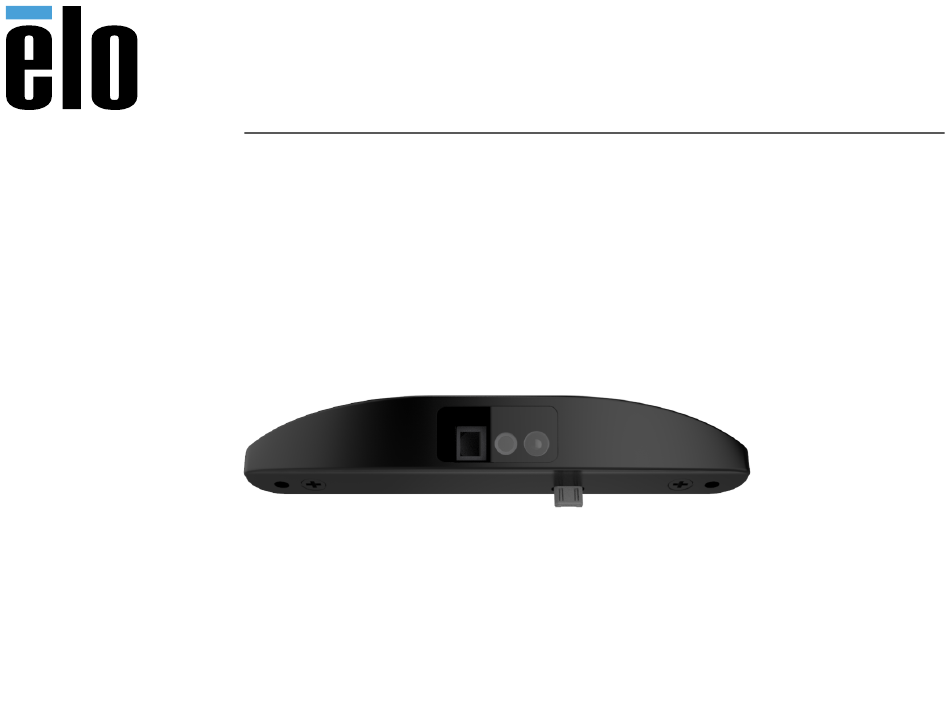

- Page 1 USER MANUAL Elo Touch Solutions Elo Kit, 2D Barcode Scanner, Edge Connect...
- Page 2 Disclaimer The information in this document is subject to change without notice. Elo Touch Solutions, Inc. and its Affiliates (collectively “Elo”) makes no representations or warranties with respect to the contents herein, and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose. Elo reserves the right to Revise this publication and to make changes from time to time in the content hereof without obligation of Elo to notify any person of such revisions or changes.
-
Page 3: Table Of Contents
Table of Contents Contents Section 1: Introduction ........................................5 Product Description ....................................... 5 Precautions ........................................5 Features ........................................6 Supported Symbolgies ....................................6 Imager Aiming Element specifications ................................7 Trigger Level Mode Working Decode Ranges .............................. 8 Presentation Mode Working Decode Ranges ............................... 8 Manual Trigger Button .................................... - Page 4 Report Scan Engine Manufacturing Information ............................17 Setting to Default Parameters ..................................18 USB Interface Parameters: ..................................19 Reader Interface .................................... 19 Symbol Native API (SNAPI) Status Handshaking .......................... 20 USB Country Keyboard Types - Country Codes ..........................21 User Preferences Parameter: ..................................24 Illumination Brightness ...................................
-
Page 5: Section 1: Introduction
Installation, configuration, and Operation chapters. On this user manual only the most common parameters settings will be covered. For additional parameter and symbologies settings, please download the User Guide (SE2707 & PL5000 Decoder for SE4720) from the Zebra website. -
Page 6: Features
SE2707 Not supported • SE4720 with PL50000 Supported Supported Symbolgies For symbologies settings, please download the User Guide (SE2707 & PL5000 Decoder for SE4720) from the Zebra website. Linear Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93... -
Page 7: Imager Aiming Element Specifications
Imager Aiming Element specifications Skew, Roll, and Pitch Measured on a 20 mil Code 39 symbol at distance of 5 inches. Tolerance for skew and pitch is reduced at extreme ends of the working range. User Manual – 2D Barcode Scanner (Zebra) UM600xxx Draft, page 7 of 40... -
Page 8: Trigger Level Mode Working Decode Ranges
Trigger Level Mode Working Decode Ranges Note: Photographic quality bar code at 15° tilt pitch angle under 30fcd ambient illumination. ( * ) Limited by width of bar code in field of view. Near Distance Far Distance Bar Code Type Typical Typical 5 mil Code 39... -
Page 9: Section 2 Unpacking
Section 2 Unpacking Unpacking the 2D Barcode Scanner Verify that the box contains: 2D Barcode scanner • 2 mounting screws • 2 screw covers • Quick Install Guide • Remove all protective material from the device. Inspect the device for damage. Report immediately if 2D Barcode scanner is damage and with missing items as listed above. -
Page 10: Section 3: Installation
Section 3: Installation Attaching the 2D Barcode Reader Note: The peripheral image below may appear different. Step 1: Select the location to mount the 2D barcode reader. Some systems have more than one mounting option. Step 2: Remove the selected peripheral cover from the touch monitor or computer. User Manual –... - Page 11 Step 3: Gently insert the fingerprint reader into the peripheral bay making sure the connector mates properly. Step 4: Install the 2 flat head screws included with the kit. Step 5: Cover the head screws with the adhesive mylar covers included from the kit. User Manual –...
- Page 12 User Manual – 2D Barcode Scanner (Zebra) UM600xxx Draft, page 12 of 40...
-
Page 13: Installing The Software Drivers
Installing the Software Drivers For use with Windows Systems: • Visit Zebra website to download 123Scan configuration utility application. • For more information on 123Scan, including training tutorial videos go to http://www.zebra.com/123Scan • For use in CDC COM port emulation mode, please download the driver from the https://www.zebra.com/us/en/support-downloads/software/drivers/usb-cdc- following link: driver.html... -
Page 14: Section 4: Default Settings
Only the most common settings will be covered in this manual. For additional settings, please download the User Guide (SE2707 & PL5000 Decoder for SE4720) from the Zebra website. -
Page 15: Usb Host Parameter Defaults
Barcodes with Unknown Characters Unknown Characters Convert Case None USB Convert Unknown to Code 39 Disable USB Static CDC Enable SE2707- Honor USB Fast HID Disable TGCS (IBM) USB Beep Directive SE4720 - Ignore TGCS (IBM) USB Barcode SE2707- Honor USB Polling Interval... -
Page 16: Image Capture Preferences Default
Image Capture Preferences Default SE2707 SE4720 SE2707 SE4720 Parameter Parameter Default Default Default Default Operational Modes JPEG Image Options Quality Aim Brightness 2 (High) 2 (High) JPEG Quality Value Illumination Brightness JPEG Size Value 160K Frame Rate Auto Image File Meta Data... -
Page 17: Section 5: Configuration
Section 5: Configuration Note: Only the most common settings will be covered in this manual. For additional settings, please download the Zebra User Guide (SE2707 & PL5000 for SE4720) from the Zebra website. Send Versions Report Version Scan the bar code below to report the version of software currently installed in the decoder. -
Page 18: Setting To Default Parameters
Setting to Default Parameters Scan one of the following bar codes to reset the engine to its default settings as follows: Restore Defaults resets all default parameters as follows: • If you configured custom default parameter values via the Write to Custom Defaults bar code, scanning the Restore Defaults bar code restores these custom values. -
Page 19: Usb Interface Parameters
USB Interface Parameters: Reader Interface Scan one of the following barcodes to select the USB device type. To select a country keyboard type for the USB Keyboard HID host, see USB Country Keyboard Types - Country Codes. NOTES: • When changing USB Device Types, the decoder resets and issues the standard startup beep sequences. •... -
Page 20: Symbol Native Api (Snapi) Status Handshaking
Symbol Native API (SNAPI) Status Handshaking After selecting a SNAPI interface as the USB device type, scan one of the following barcodes to select whether to enable or disable status handshaking. This is the default setting for the scanner out of the box. User Manual –... -
Page 21: Usb Country Keyboard Types - Country Codes
USB Country Keyboard Types - Country Codes Scan the barcode corresponding to the keyboard type. This setting applies only to the USB HID Keyboard Emulation device. NOTE: When changing USB country keyboard types, the decoder automatically resets and issues the standard startup beep sequences. - Page 22 User Manual – 2D Barcode Scanner (Zebra) UM600xxx Draft, page 22 of 40...
- Page 23 User Manual – 2D Barcode Scanner (Zebra) UM600xxx Draft, page 23 of 40...
-
Page 24: User Preferences Parameter
User Preferences Parameter: Trigger Mode Settings Parameter # 138 SSI # 8Ah Scan one of the following bar codes to select a trigger mode for the engine: Standard (Level) A trigger press activates decode processing. Decode processing continues until the barcode decodes, you release the trigger. This is the default setting for the scanner out of the box. - Page 25 Auto Aim with Illumination The engine turns on the aiming pattern and internal illumination LEDs when it senses motion. A trigger press activates decode processing. After two seconds of inactivity the aiming pattern and internal illumination LEDs automatically shut off. User Manual –...
-
Page 26: Illumination Brightness
Illumination Brightness Parameter # 669 SSI # F1h 9Dh This parameter sets illumination brightness by altering LED power. The default is 7. For values from 1 to 10, LED brightness varies from lowest to highest level. To program Illumination Brightness, scan (Illumination Brightness) barcode followed by two numeric bar codes below that correspond to the value of desired illumination brightness. - Page 27 Cancel To correct an error or change a selection, scan the bar code below. User Manual – 2D Barcode Scanner (Zebra) UM600xxx Draft, page 27 of 40...
-
Page 28: Aim Brightness
Aim Brightness Parameter # 668 SSI # F1h 9Ch Scan one of the following bar codes to set the aim pattern brightness or power. Options are low, medium, and high. This is the default setting for the scanner out of the box. User Manual –... -
Page 29: Usb Keystroke Delay
USB Keystroke Delay Scan one of the following barcodes to set the delay, in milliseconds, between emulated keystrokes. Select a longer delay for hosts that require slower data transmission. This is the default setting for the scanner out of the box. User Manual –... -
Page 30: Beeper Volume
Beeper Volume Parameter # 140 SSI # 8Ch Scan one of the following bar codes to select a beeper volume. This is the default setting for the scanner out of the box. User Manual – 2D Barcode Scanner (Zebra) UM600xxx Draft, page 30 of 40... -
Page 31: Beeper Tone
Beeper Tone Parameter # 145 SSI # 91h Scan one of the following bar codes to select a beeper tone for the good decode beep. This is the default setting for the scanner out of the box. User Manual – 2D Barcode Scanner (Zebra) UM600xxx Draft, page 31 of 40... -
Page 32: Beeper Duration
Beeper Duration Parameter # 628 SSI # F1h 74h Scan one of the following bar codes to select the duration for the good decode beep. This is the default setting for the scanner out of the box. User Manual – 2D Barcode Scanner (Zebra) UM600xxx Draft, page 32 of 40... -
Page 33: Mobile Phone/Display Mode
Mobile Phone/Display Mode Parameter # 716 SSI # F1h CCh This mode improves bar code reading performance off mobile phones and electronic displays. Scan one of the following bar codes to select the desired mode. This is the default setting for the scanner out of the box. User Manual –... -
Page 34: Section 6: Technical Support
Section 6: Technical Support Technical Assistance Technical Specifications Online Self-Help Technical Support visit www.elotouch.com/products visit www.elotouch.com/go/websupport visit www.elotouch.com/go/contactsupport for technical specifications for this device for online self-help for technical support See this user manual’s last page for worldwide technical support phone numbers. User Manual –... -
Page 35: Section 7: Safety & Regulatory Information
Section 7: Safety & Regulatory Information Electrical Safety Information Compliance is required with respect to the voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified herein will likely result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed. - Page 36 1. In order to meet emission and immunity requirements, the user must observe the following: a. Use only the provided I/O cables to connect this digital device with any computer. b. To ensure compliance, use only the provided manufacturer’s approved line cord. c.
-
Page 37: Agency Certifications
Agency Certifications The following certifications and marks have been issued or declared for this peripheral: • Explanation of Markings In accordance with the SJ/T11364 requirement, electrical and electronic products are marked with the following pollution control logo. The Environment-Friendly Use Period for this product is 10 years. The product will not leak or mutate under normal operating conditions listed below, so that the use of this electronic information product will not result in any severe environmental pollution, any bodily injury, or damage to any assets. -
Page 38: Power Specifications
Power Specifications Electrical Ratings Input 5VDC Operating Conditions Temperature 10°C - 40°C Humidity: to 95% relative humidity, non-condensing, at 40°C Storage Conditions Temperature -40°C - 60°C Humidity: to 95% relative humidity, non-condensing, at 40°C User Manual – 2D Barcode Scanner (Zebra) UM600xxx Draft, page 38 of 40... -
Page 39: Section 8: Warranty Information
Section 8: Warranty Information For warranty information, go to http://support.elotouch.com/warranty/ User Manual – 2D Barcode Scanner (Zebra) UM600xxx Draft, page 21 of 40... - Page 40 • Upcoming Events • Press Releases • Software Drivers To find out more about our extensive range of Elo touch solutions, go to www.elotouch.com, or call the office nearest you. North America Europe Asia-Pacific Latin America Tel +1 408 597 8000...
