Avaris Odysey Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ELECTRIC BICYCLE OWNER ORIGINAL INSTRUCTION
AVARIS LTD
Group First House, Mead Way, Padiham, BB12 7NG Lancashire, United Kingdom
Model number :220322ODY-17&220322ODY-19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Odysey and is the answer not in the manual?

Questions and answers

Summary of Contents for Avaris Odysey

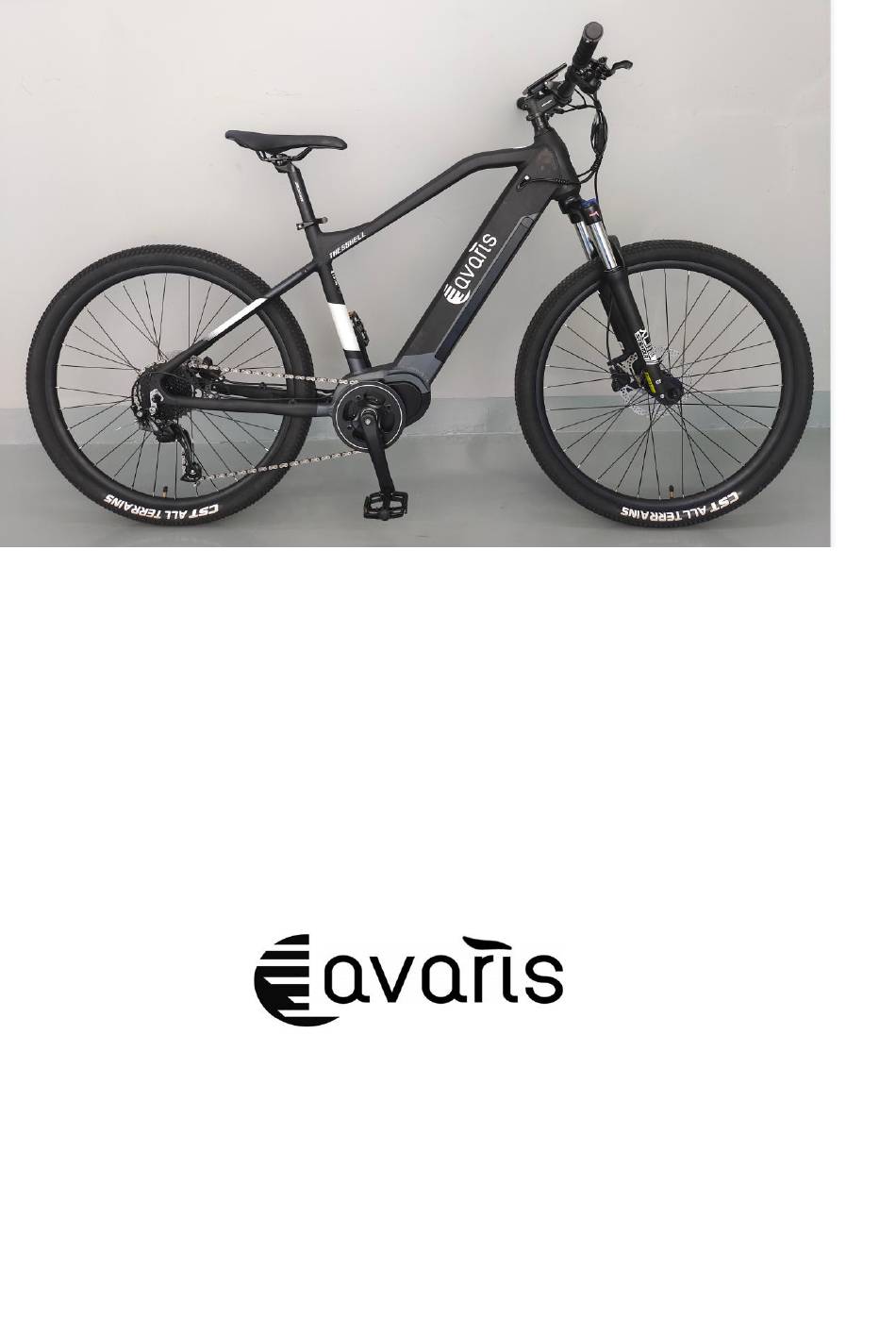

  • Page 1 ELECTRIC BICYCLE OWNER ORIGINAL INSTRUCTION AVARIS LTD Group First House, Mead Way, Padiham, BB12 7NG Lancashire, United Kingdom Model number :220322ODY-17&220322ODY-19...
  • Page 2 INDEX Section One Profile A. General Warning B. A note for parents Before the first ride A. Bike fit B. Out Of Box Assembly C. Safety first D. Mechanical Safety Check E. First ride Section Two Safety A. Basics B. Riding Safety C.

  • Page 3: General Warning

    B. Seat post Quick Release C. Brakes D. Shifting gears E. Tyres and Innertubes Section Six Service A. Service Intervals B. If your electric bicycle sustains an impact Section Seven General Warranty Terms & Conditions SECTION ONE: GENERAL WARNING The following operation manual is a guide to assist you ONLY. This manual is not a complete document on all aspects around the maintenance and repair of your new electric bicycle.

  • Page 4: Before The First Ride

     The cord should always be readily accessible. The electric bicycle is not intended for use by persons (including children) with physical, sensory or mental  disabilities. Persons who have not read the manual, unless they have received explanations by a person responsible for their safety and supervision, should not use this electric bicycle.
  • Page 5 1. Is your bike the right size? To check, see Section 3. If your electric bicycle is too large or too small for you, you may lose control and fall. 2. Is the saddle at the right height? To check, see Section 3. If you adjust your saddle height, make sure that you follow the ‘minimum insertion’...
  • Page 6 The ‘out of box’ assembly is now complete and should resemble the image on the front of this manual. For further visual help and guidance, be sure to check out our video instruction, available via the Avaris website. Safety first: 1.
  • Page 7 WARNING: Do not ride the bicycle until the brakes are properly adjusted. Seek professional help if necessary. Riding the bicycle without the brakes working accordingly, could potentially result in serious injury or death. Quick Release Mechanisms: Make sure the front wheel, rear wheel and seat post quick release mechanisms ...
  • Page 8 6. Wear protective eyewear to protect against airborne dirt, dust and bugs. Tinted protective eyewear should be used when the sun is bright, clear protective eyewear when it’s not. 7. Ride at a speed which is appropriate for the current conditions. Increased speed will always mean there is a higher risk of an accident occurring.
  • Page 9 Riding a bicycle at night is more dangerous than riding during the day. Due to the natural reduction in visibility, it can be very difficult for motorists and pedestrians to see a cyclist. Therefore, children should never ride at dawn, at dusk or at night.
  • Page 10 Saddle position: Correct saddle adjustment is an important factor in getting the best performance and comfort from your bicycle. The saddle can be adjusted in three directions: 1. Up and down adjustment. 2. Front and back adjustment. 3. Seat angle/level adjustment. To check for correct saddle height (up and down) adjustment (see fig.
  • Page 11 Attach & Adjust the Handlebar: Your handlebars have two main parts, the bar itself and the stem. If your bar has been removed for shipping, position the bar in the centre of the stem and check to be sure that your grips are in the right place, and that the angle of the bar is comfortable, whilst also enabling you to shift gears and apply the brakes accordingly.
  • Page 12 eBike Motor:  36V 250W Center Brushless DC motor Brake: The braking system on this electrical bicycle are Shimano front (right hand) and rear (left hand) hydraulic disc  brakes. WARNING: Do not lubricate (directly or indirectly) the brake pads or brake discs, keep them clean and free of dirt at all times.
  • Page 13 Electric Bicycle Specifications: General 1. Dimension: L. x W. x H. 2000 × 240 × 1255 mm 2. Wheel base distance 1180 mm 3. Weight 33.2 kg 4. Maxi. loading 120 kg 5. Maxi. speed ≤25 km/h 6. Maxi riding distance PAS≥80 km 7.
  • Page 14 Any changing of wheel components or truing of wheels, should be carried out by a trained professional, using the correct applicable tools. WARNING: Incorrect tampering or re-application of the wheel components, and/or failure to properly adjust a wheel accordingly, can cause the wheel to wobble or disengage, which could cause you to lose control and fall. Take your time to make sure that your wheels are securely in place before each ride.

  • Page 15: Service Intervals

    your new electric bicycle, if you feel that a different tyre might better suit your riding needs, you can discuss the alternative options with a professional bicycle tyre dealer. Tyre size, pressure rating and specific recommended use, should be marked on the sidewall of the tyre (see example pic on next page).

  • Page 16: If Your Bicycle Sustains An Impact

    4. After every long or hard ride or after every 10 to 20 hours of riding: Squeeze the front brake and rock the bike forward and back. Everything feel solid? If you feel a clunk with each forward or backward movement of the bike, you probably have a loose headset.
  • Page 17  Normal wear and tear of the product Force majeure  Abnormal use  Use of the product under conditions different from those for which it was manufactured, in particular, in  case of non-compliance with the conditions prescribed in the operating manual Deterioration ...
