Summary of Contents for Morskate DH 010 FPM

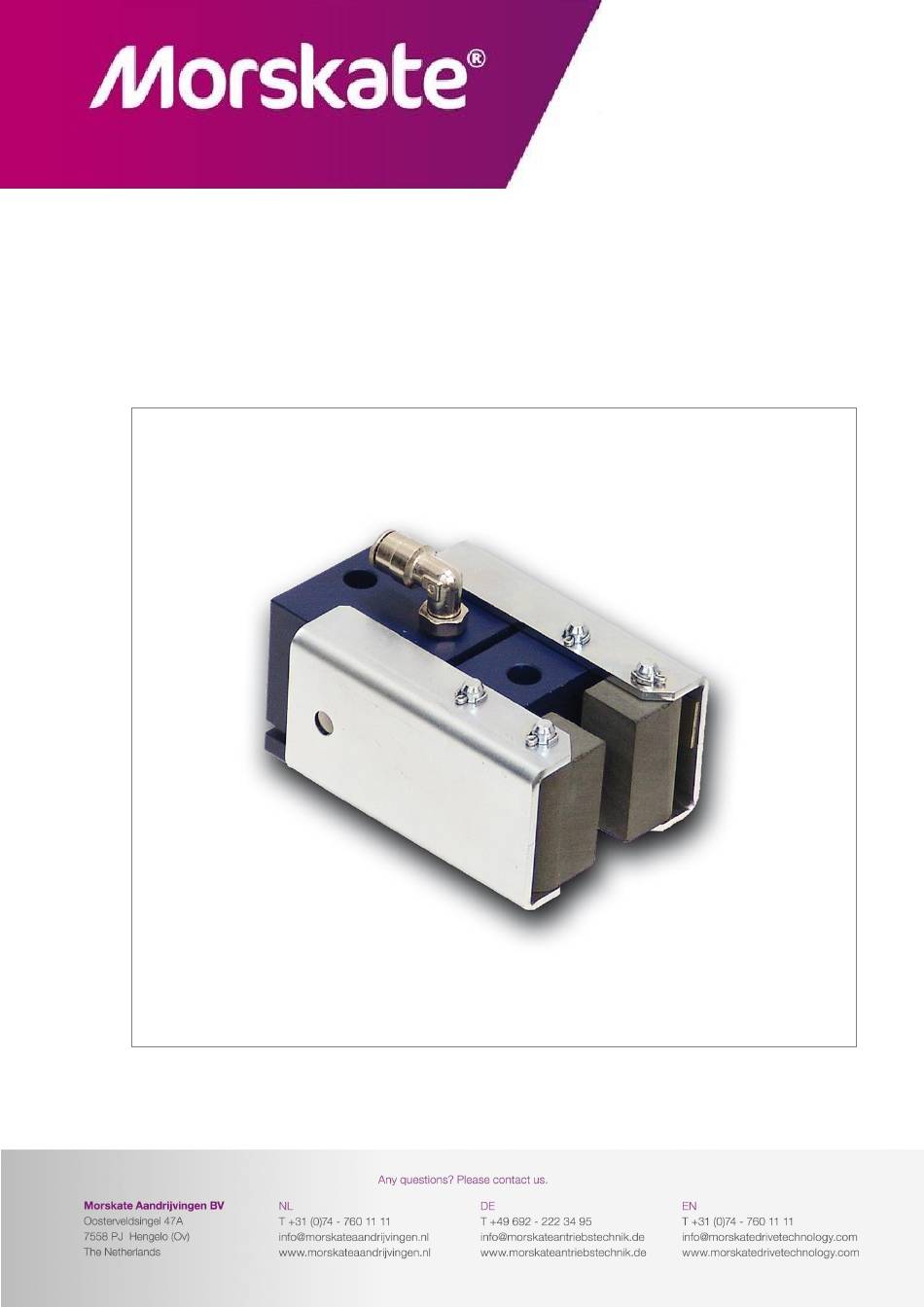

- Page 1 Installation and Operating Instructions for Brake Caliper DH 010 FPM E 09.634e...
- Page 2 Installation and Operating Instructions for E 09.634 e Brake Caliper DH 010 FPM spring activated pneumatically released Issue: 27.02.2014 Version : 4 drawn: Su checked: Su Pages: 11 Page: 2 Important Please read these instructions carefully before installing and operating the product. Your particular attention is drawn to the notes on safety.
-
Page 3: Table Of Contents
Installation and Operating Instructions for E 09.634 e Brake Caliper DH 010 FPM spring activated pneumatically released Issue: 27.02.2014 Version : 4 drawn: Su checked: Su Pages: 11 Page: 3 Contents General information Configuration and function Drawing and parts list... -
Page 4: General Information
General information These installation and operating instructions apply to: the version DH 010 FPM – 010M und DH 010 FPM – 012M, see Fig. 3.1 under Section 3 for mounting on a disc brake (disc thickness 12.5 mm). the special version for 5,0 mm thick brake disc ... -
Page 5: Drawing And Parts List
Installation and Operating Instructions for E 09.634 e Brake Caliper DH 010 FPM spring activated pneumatically released Issue: 27.02.2014 Version : 4 drawn: Su checked: Su Pages: 11 Page: 5 Drawing and parts list Fig. 3.1 Parts list: Part Nomenclature... -
Page 6: Condition On Delivery
Version : 4 drawn: Su checked: Su Pages: 11 Page: 6 Split pin 1,6x12 5202-016106-000000 Adjustment spindle to DH 010 FPM 2712-006606-000000 8 or 9 Pressure nut with right-hand thread 2742-010101-000000 9 or 8 Pressure nut with left-hand thread 2742-101102-000000... -
Page 7: Installation
Installation and Operating Instructions for E 09.634 e Brake Caliper DH 010 FPM spring activated pneumatically released Issue: 27.02.2014 Version : 4 drawn: Su checked: Su Pages: 11 Page: 7 5.1 Installation The brake caliper should be mounted to stabile, vibration-free machine components in order to ensure noise-free, non-screech. -
Page 8: Running-In Procedure
Installation and Operating Instructions for E 09.634 e Brake Caliper DH 010 FPM spring activated pneumatically released Issue: 27.02.2014 Version : 4 drawn: Su checked: Su Pages: 11 Page: 8 Using an SW 3 hex socket spanner, turn the part clockwise or counter-clockwise through the bore into the caliper arms (3) and the piston (2) at the adjustment spindle (7) until both brake pads are separated by a minimal gap from the brake disc. -
Page 9: General Maintenance
Installation and Operating Instructions for E 09.634 e Brake Caliper DH 010 FPM spring activated pneumatically released Issue: 27.02.2014 Version : 4 drawn: Su checked: Su Pages: 11 Page: 9 6.1 General maintenance Check both brake levers for ease of movement. -
Page 10: Replacement Of Worn Parts
Installation and Operating Instructions for E 09.634 e Brake Caliper DH 010 FPM spring activated pneumatically released Issue: 27.02.2014 Version : 4 drawn: Su checked: Su Pages: 11 Page: 10 Replacement of worn parts Consumable parts include brake pads and possibly the piston seals in the cylinder block (after extended operation). - Page 11 Installation and Operating Instructions for E 09.634 e Brake Caliper DH 010 FPM spring activated pneumatically released Issue: 27.02.2014 Version : 4 drawn: Su checked: Su Pages: 11 Page: 11 Remove the bearing covers (14) and the pistons (2), the pressure springs (10) and the adjustment spindle (7).
