Storm Interface AXS Series Quick Start Manual

This mullion format integrated keypad and contactless reader is rated for continuous outdoor use
in exposed, unsupervised locations. Featuring genuine HID
this access control keypad offers enhanced security by dual factor authentication.
®
Additionally available with HID
Authorized access through a secured door or barrier can be gained by entry of a valid PIN and/or
presentation of an authorised contactless credential.

Installation

Recommended locations and wiring methods shall be in accordance
with the National Electrical Code, ANSI/NFPA 70
1. Mark and drill the cable hole. Remove the release liner and stick the rear plate to the wall.
2. Fix to the wall with the 2 x self drill c/s 25mm screws (on 150mm centres) , and feed through the cable
3. Make the wiring connections to the keypad
4. Set the rear halo illumination switch (default is ON, colour is blue)
5. Fit the keypad to the rear plate : locate at top and then push to engage clip
(to unclip the keypad insert the supplied tool at the keypad base and push in to disengage the clip)

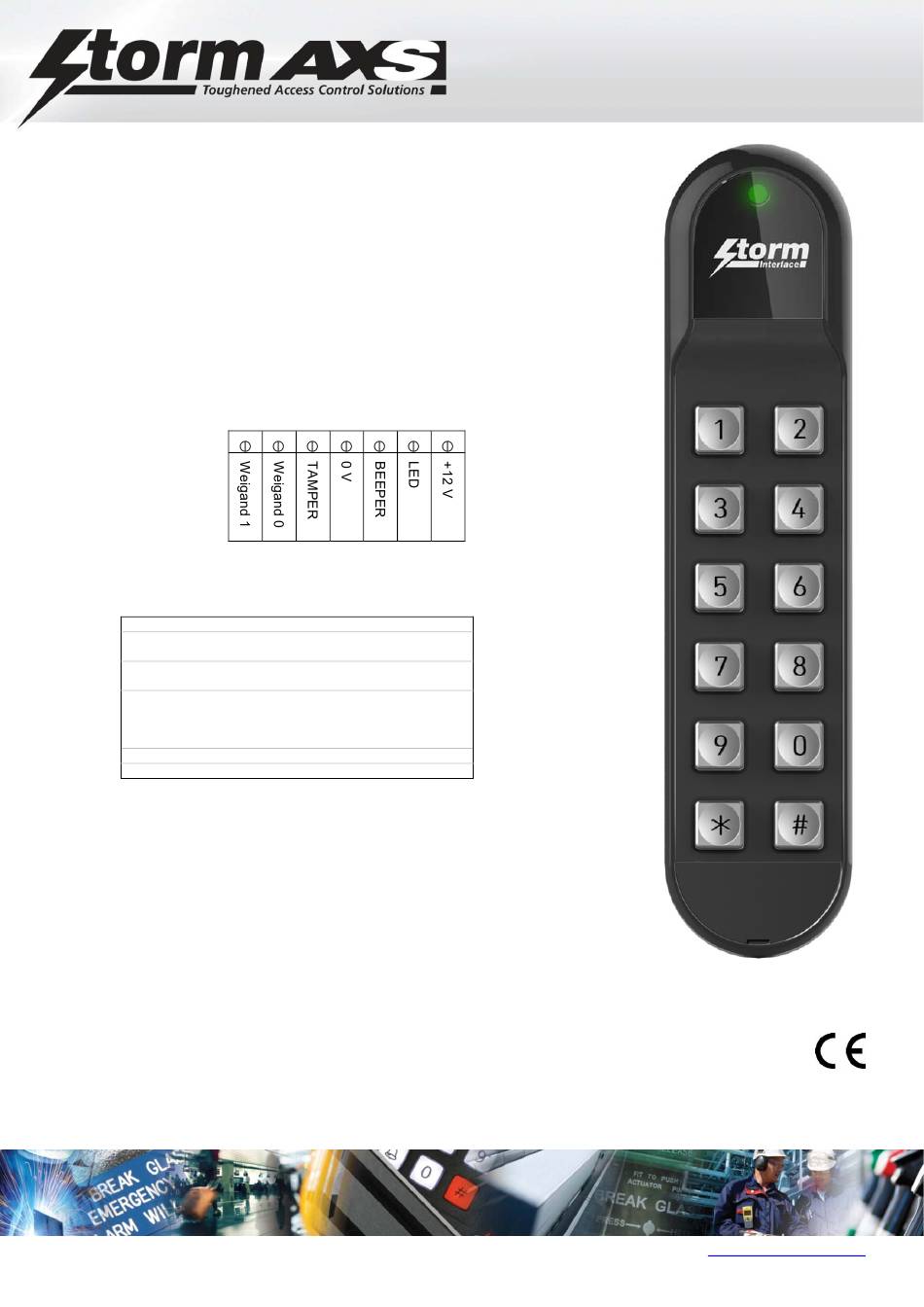

Wiring Connections

Weigand Format for PIN
Factory default is Weigand 4 bit burst format (for PIN).
If you need other Weigand formats follow the sequence below.
(to set site code on 26/32 bit refer to the S60 Engineering Manual)
Press # on power up , LED FLASHES RED/GREEN
Press #725 to enter format mode
Press 1 for FORMAT
Press 1 for 4 BIT FORMAT
or 2 for 8 BIT FORMAT
or 3 for 26 BIT FORMAT
or 4 for 32 BIT FORMAT
Press 0 to EXIT,

Specification

Card Compatibility iClass
Card Read Range 2-11cm (depending on card)
Credentials iClass
Card Security V1 Security (Elite to special order only)
Coupling Frequency 13.56 MHz (& 125kHz for Multiclass)
Supply 12V DC +/- 15% at 500mA max
Dimensions 205mm H x 45mm W x 21mm D (max)
Tamper detection Normally closed
Status Indication RED/GREEN as driven by the Controller (as supported by the controller)
Access Control Level I for Line Security, Level II for Destructive Attack / Endurance
Performance
Operational Temp -35°C to +70°C
Weather Resistant IP65
Vibration & Shock ETSI 6M3
Impact Resistance 10J Rating (EN62262)
Certification CE / FCC / IC / UL294
FCC ID 2AEEZ-DS60. Industry Canada IC 20014-DS60. This device complies with Part 15 of the FCC Rules and Industry Canada licence exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation. HID ®, Seos® and iCLASS SE® are trademarks of HID Global Corporation / ASSA ABLOY AB.
Storm, Storm Interface and Storm AXS are trademarks of Keymat Technology Ltd.
Datasheet : DS60-xx-08KT
Rev 2 Jan 2018
® iCLASS SE
®
multiCLASS SE for legacy 125kHz technology.
LED STAYS RED
® , Mifare ® , ISO15693, ISO14443A & B
®, ®
SEOS , Mifare Classic,Plus,Ultralight, Desfire 0.6,EV1, HID Prox
Order Codes
DS601K20
DS602W20
DS601K2P
DS602W2P
Page 1 of 2
AXS Series – S60 Keypad
® , Seos ® , contactless technology,
AXS Series S60 iClass keypad, metal keys, mullion format
AXS Series S60i iClass keypad, illuminated keys, mullion format
AXS Series S60M Multiclass keypad, metal keys, mullion format
AXS Series S60iM Multiclass keypad, illuminated keys, mullion format.
For more information visit
© Copyright Storm Interface. 2018. All rights reserved
