INSTRUCTION MANUAL
NPPA-TT-IDC

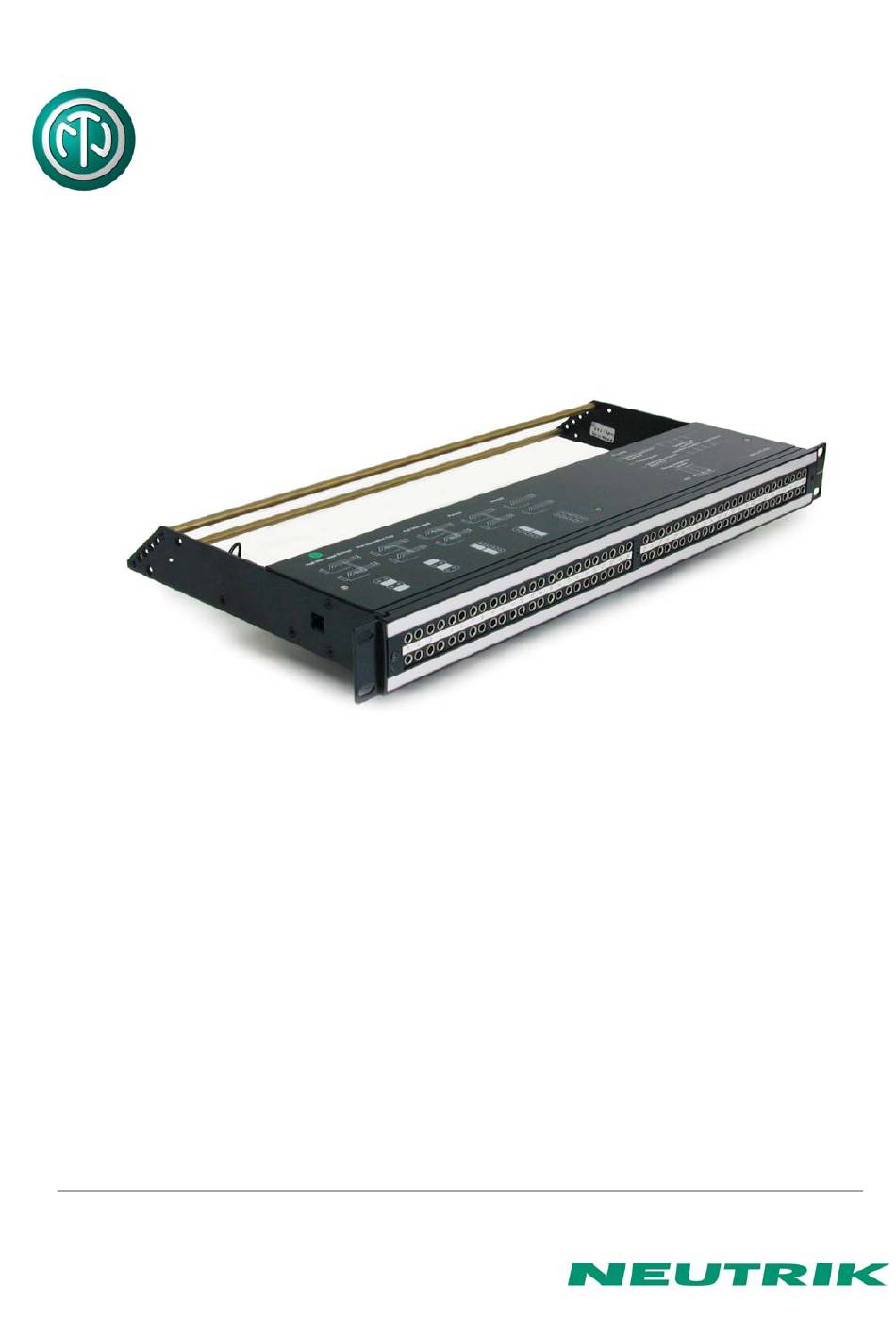

PATCH PANEL "Easy Patch"
IDC Termination
NEUTRIK AG
NEUTRIK Zürich AG
Liechtenstein
Switzerland
Tel.: +423/237 24 24 Tel.: +41 44/736 5010
Fax: +423/232 53 93 Fax: +41 44/736 5011
www.neutrik.com
BDA98-1/ 3102M0881
Draft. Nr.:
03.08.2009
Update:
Data subject to change without prior notice. ©2007 NEUTRIK . ALL RIGHTS RESERVED.
NEUTRIK (UK) Ltd.
NEUTRIK USA INC.
Great Britain
USA
Tel.: +44 1983/811 441 Tel.: +1 732/901 9488
Fax: +44 1983/811 439 Fax: +1 732/901 9608
|
96 Bantam (TT) Jacks,
NEUTRIK Tokyo Ltd.
NEUTRIK France
Japan
France
Tel.: +81 3/3663 4733
Tel.: +33 1/4131 6750 Tel.: +49 8131/28 08 90
Fax: +81 3/3663 4796
Fax: +33 1/4131 0511 Fax: +49 8131/28 08-30
NEUTRIK Vertriebs GmbH
Germany/Netherlands/Austria

Advertisement

loading
Need help?

Need help?

Do you have a question about the NPPA-TT-IDC and is the answer not in the manual?

Questions and answers

Summary of Contents for NEUTRIK NPPA-TT-IDC

  • Page 1 Fax: +44 1983/811 439 Fax: +1 732/901 9608 Fax: +81 3/3663 4796 Fax: +33 1/4131 0511 Fax: +49 8131/28 08-30 www.neutrik.com BDA98-1/ 3102M0881 Draft. Nr.: 03.08.2009 Update: Data subject to change without prior notice. ©2007 NEUTRIK . ALL RIGHTS RESERVED.
  • Page 2: Table Of Contents

    2. Grounding variations ....................4 3. Wiring .........................5 4. Cable retention ......................7 5. Channel identification ....................7 6. Replacement ......................9 7. Technical data ......................11 8. Content of supply....................11 Dimensional Drawings “Easy Patch” NPPA-TT-IDC Front panel Cable retention bar Top cover Page 2 of 11...
  • Page 3: Electrical Configuration

    (2 x 48). This Patch Panel is an innovative and compact patching system (just 1 U high) for 19” rack mounting. Robustly housed in black coated steel shell and featuring precision aluminum fittings it is built to last. The Neutrik "Easy Patch” is suitable for analog and digital audio signals.
  • Page 4: Grounding Variations

    NPPA-TT-IDC Instruction Manual 2. Grounding variations The flexible grounding system provides the following versions. Each channel ground (“S” terminal) is connected to the dedicated ground Individual: conductor (drain wire) of the incoming cable shield, no connection between the solder pads. This is the standard configuration.
  • Page 5: Wiring

    NPPA-TT-IDC Instruction Manual 3. Wiring For access to the terminals remove the top cover with three cross-recessed screws (M2.5x8mm). IDC-terminals with gas tight connection enable fast and easy wiring. No soldering or fixing with screws is necessary. For wiring please use the original LSA-tool from Krone (Product Nr.: 6417/1/810).
  • Page 6 NPPA-TT-IDC Instruction Manual Color coding of terminals: white sleeve (shield) tip (Signal +) black ring (Signal -) The terminal handles solid cables AWG 26 to 20. Wire (conductor) diameter Wires per slot   ≥ 0.40 mm ≤ 0.65 mm ...
  • Page 7: Cable Retention

    NPPA-TT-IDC Instruction Manual 4. Cable retention The built in cable retention bar is at the back at the casing. Simply attach the cables with cable ties to the bar as shown on the photo. For large and heavy bundles there is an additional strain relief bar NPPA-S available. It is attached to the casing with four screws.
  • Page 8 After marking is done assemble the parts in reversed sequence. Remove labeling strip Side Stop NOTE: For easy and perfect marking you can use our designation software “PatchLabel” which is available on our web site www.neutrik.com free of charge. Print-Out software “Patch Label” Page 8 of 11...
  • Page 9: Replacement

    NPPA-TT-IDC Instruction Manual 6. Replacement of Jack Pairs Each individual jack pair can be exchanged quickly and without fuss even while the panel is "on air". For replacement simply remove the easy accessible jack pairs. Module consisting of 2 Jack Pairs...
  • Page 10 NPPA-TT-IDC Instruction Manual Alternatively the jack pairs may be pulled out by the use of two Bantam plugs (diagonally plugged in). The two jack pairs have to be re-assembled in the right way so that the thicker body marked “left” is put on the left side with the mark outside and readable.
  • Page 11: Technical Data

    • Black coated steel casing with aluminum fittings • 2 x 48 highly integrated NEUTRIK NJ3TTA jacks with gold plated double contacts and specially designed normalling mechanism (standard: half normalled bottom row) • Integrated internal pre-wiring with jumpers on print •...
