Dynabrade 11400 Operating Instruction

Models:
11400 - 3/8" NPT – Filter
11401 - 3/8" NPT – Regulator
11402 - 3/8" NPT – Filter-Regulator
11403 - 3/8" NPT – Lubricator
11404 - 3/8" NPT – Regulator-Lubricator
11405 - 3/8" NPT – Filter-Regulator-Lubricator
11406 - 1/2" NPT – Filter
11407 - 1/2" NPT – Regulator
11408 - 1/2" NPT – Filter-Regulator
11409 - 1/2" NPT – Lubricator
11410 - 1/2" NPT – Regulator-Lubricator
11411 - 1/2" NPT – Filter-Regulator-Lubricator
To reduce risk of injury, everyone using, installing, repairing, maintaining, changing accessories on, or working near this
tool MUST read and understand these instructions before performing any such task. DO NOT DISCARD – GIVE TO USER.

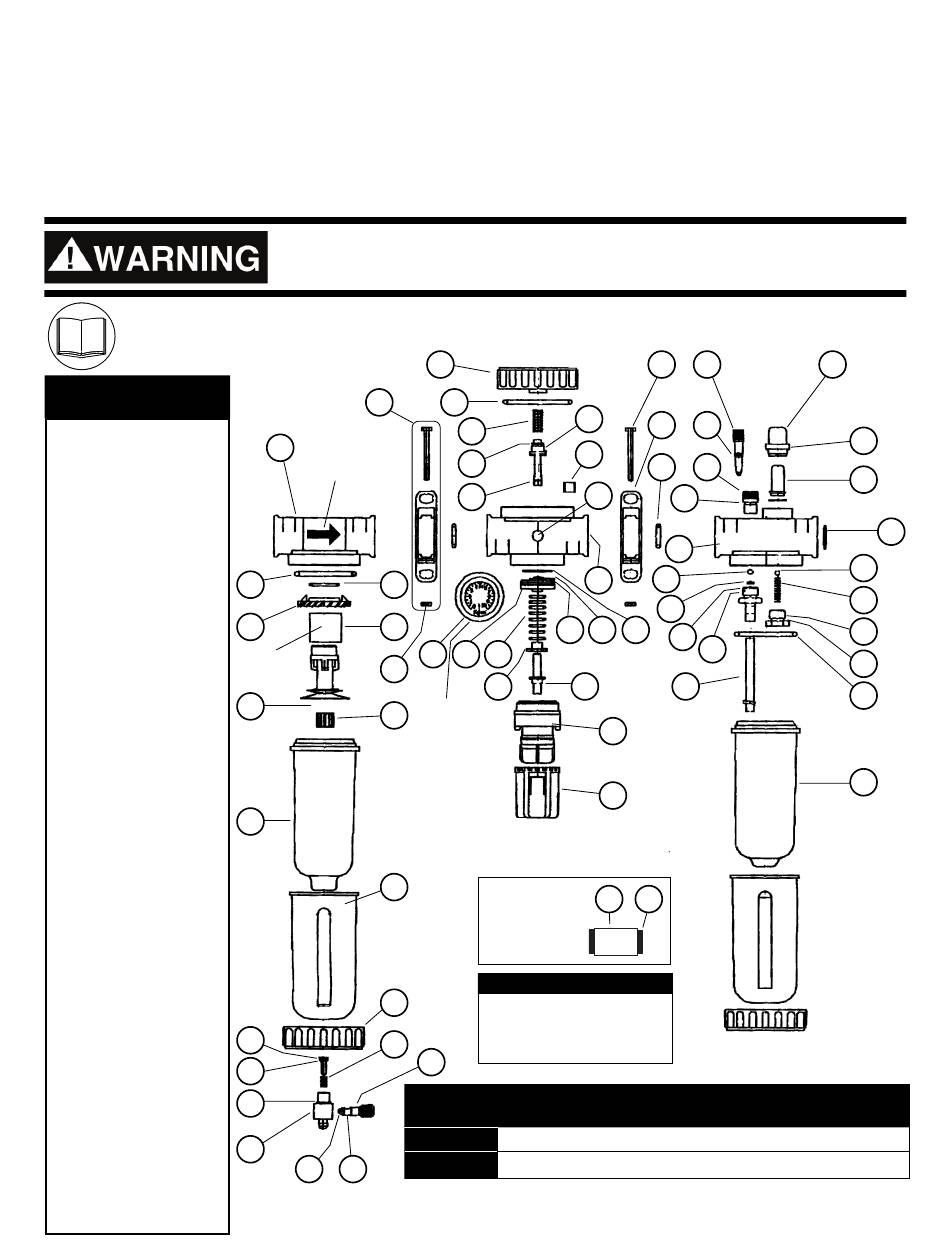

Index Key
No. Part # Description
1 98144 Filter Body
2 98151 O-Ring
3 98155 O-Ring
4 98154 Interceptor
5 98153 Filter Element
6 98152 Bowl Baffle
7 98163 Nut
8 98145 Bowl
9 98146 Shatter Guard (2)
10 98150 Lock Ring (2)
11 98162 Piston
12 98160 O-Ring (3)
13 98161 Spring
14 98157 O-Ring
15 98156 Drain Body
16 98159 O-Ring
17 98158 Valve
18 98178 Cap
19 98177 O-Ring
20 98176 Spring
21 98175 O-Ring
22 98174 Valve
23 98197 Nut
24 98164 Regulator Body
25 98194 Nut (2)
26 98196 Gauge
27 98166 O-Ring
28 98168 O-Ring
29 98169 V-Ring
30 98167 Piston
31 98170 Spring
32 98172 Nut
33 98171 Adjusting Screw
34 98165 Dome
35 98173 Knob
36 98193 Screw (2)
37 98192 Joiner (2)
38 98195 O-Ring (2)
39 98185 Adjusting Screw
40 98186 Fill Plug
41 98188 Outside Cup
42 98189 O-Ring
43 98187 Inside Cup
44 98190 Adjusting Ring
45 98179 Lubricator Body
46 98183 Ball (2)
47 98184 Plug
48 98182 Spring
49 98181 Nut
50 98191 Tube
51 98180 Bowl
52 11412 Bracket Assembly
53 98244 Air Passage Tube
54 98245 Seal (2)
55 98197 Nut
Filter-Regulator-Lubricator
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air
tools (ANSI B186.1) and any other applicable safety codes and regulations. Please refer to
Dynabrade's Warning/Safety Operating Instructions for more complete safety information.
52*
1
Air Flow Indicator
2 3
4 5
Filter Element
25
(20 Micron)
6 Regulator Gauge
7
8
9
10
11
13
12
Inlet/Outlet
14
15
12 16
Warning: Do not loosen or remove fill cap when under pressure.
*Note: 11412 Modular Bracket Assembly includes 98194 Nut (2), 98193 Screw (2), and
Machine Parts and Operating Instructions
18
19
22
20
23
21
55
16
24
29 28
26 30 31
32 33
(0-160 PSI)
Air Passage Tube
Note: Only used on
1/2" Models. Fits in
between F-R-L
sub-components.
Tune-Up Kits
96515 – Filter-Regulator-Lubricator
96516 – Filter
96517 – Regulator
96518 – Lubricator
17
Port Size Max.Air Pressure
3/8" NPT
140 PSI/9.7 Bars 40 SCFM/1,133 LPM
1/2" NPT
140 PSI/9.7 Bars 55 SCFM/1,558 LPM
98162 Joiner.
Parts Page Reorder No. PD04•09
Effective January, 2004
Supersedes PD00•72
36 39
37 16
38 40
21
45
46
12
27
47
16
50
34
35
53 54
Max. Air Flow Max. Air Temperature
41
42
43
44
46
48
16
49
2
51
140˚ F/60˚ C
140˚ F/60˚ C
