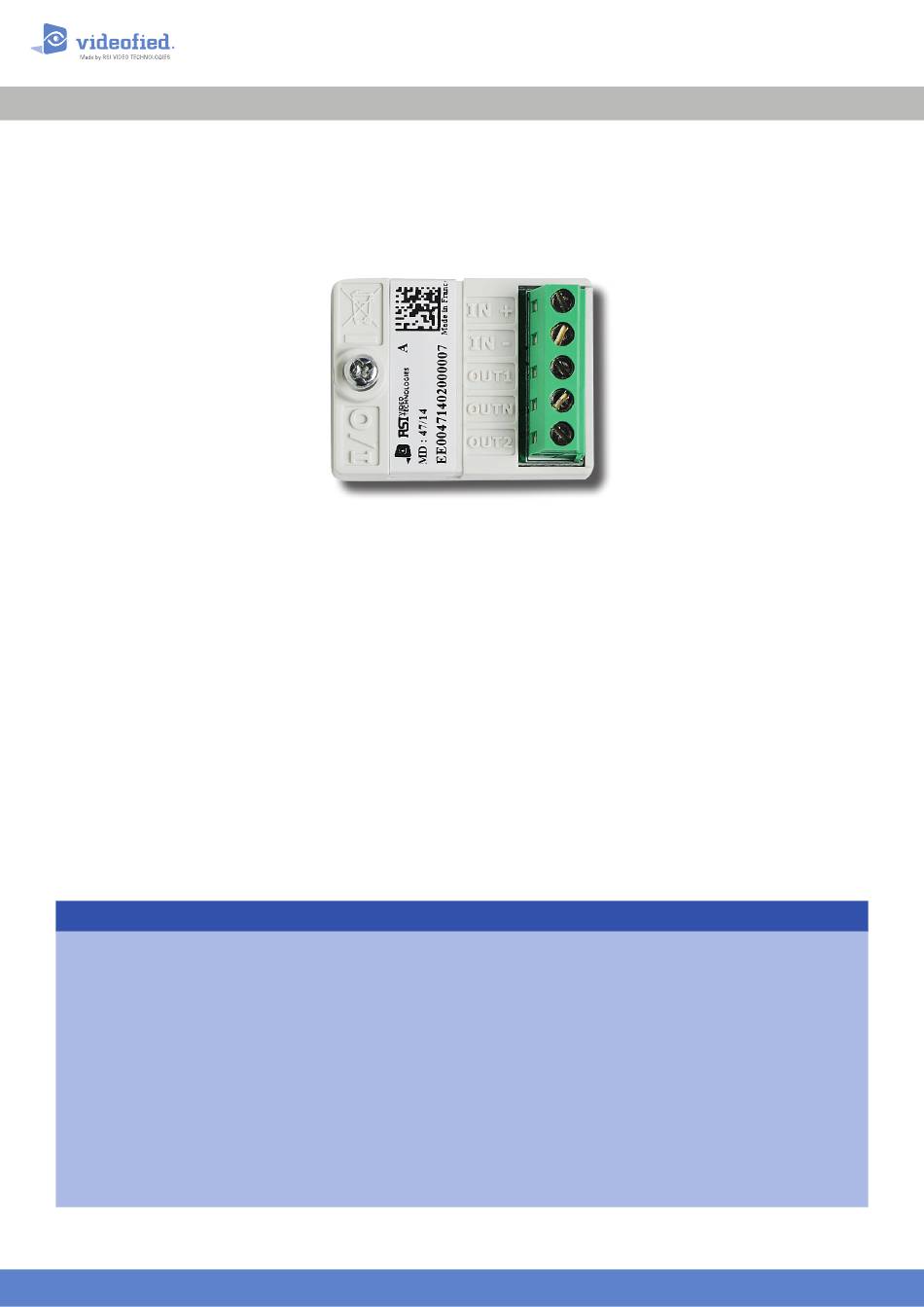

The WIO10 0 Input/Output s module is one of the removable communication modules that can be
The WIO100 module has one programmable input and two programmable outputs.
WIth this module, the W panel can be connected to wired devices such as :
•
Panic buttons, temperature sensors, safety light curtains, wired door contacts, glassbreak, shock, flooding or
gas detectors (wired input).
•
Flashing lights, spotlights, smoke equipment, light or sound indicator (wired output).
The programmable input can be configured as normally open (NO) or normally closed (NC), it can also be
supervised in order to detect cable tampers.
With the Mapping, the programmable input can be set up to take a 10 second video from any Videofied
when the detector linked to the programmable input is triggered.
The programmable input can also be wired to an existing alarm system in order to add video-vérification. That mode is
called XTENDER mode.
Programmable outputs are normally open drys contacts that close when the output is activated.
Index
W Panel
A P P L I C A T I O N
installed on the W panel.
WIO 100 Input/Outputs module
N O T E
www.videofied.com
Doc. - Ref. 240-WIS100
Version : February 2015
®
Motion Viewer™
2
2
3
3
4
5
6
6
7
7
Advertisement
Table of Contents
Summary of Contents for Videofied WIO100
-
Page 1: Table Of Contents
The programmable input can be configured as normally open (NO) or normally closed (NC), it can also be supervised in order to detect cable tampers. ® With the Mapping, the programmable input can be set up to take a 10 second video from any Videofied Motion Viewer™ when the detector linked to the programmable input is triggered. -
Page 2: Programmable Input
SIREN Silent : no siren, no beeps. Without siren : only the keypad beeps. Links a Videofied ® MotionViewer to the input. MAPPING When the input triggers, the linked camera will record a video and transmit it to the DISABLED security server. -
Page 3: Event List
1.3 Programmable input wiring and supervision Programmable input wiring Programmable input supervision 4.7kΩ IN + 4.7kΩ IN - OUT 1 OUT N Wired detection device OUT 2 Connect two 4,7kΩ resistors (provided) as shown in the above scheme. W Panel www.videofied.com... -
Page 4: Xtender Mode
® W panel can be used as a standalone alarm system. When fitted with the WIO100 input/outputs module, it can also be wired to an existing alarm system with a programmable dry contact. When used in XTENDER mode, the W panel can only be armed when the programmed condition for arming is met. -
Page 5: Xtender Mode Configuration
N O T E 1.5 XTENDER Mode configuration When a WIO100 Input/outputs module is fitted on the W panel, the XTENDER mode can be configured either during initial configuration, or in the GENERAL PARAMETERS menu. • During initial configuration, the ARMING PROFILE screen will appear. -
Page 6: Programmable Outputs
A P P L I C A T I O N N O T E 2. Programmable outputs The WIO100 programmable output is a dry contact triggering a wired external device. These outputs can only be wired to SELV circuits. The woltage and current are limited to 24V/100mA. -
Page 7: Access To Programmable Outputs Menu
OUTPUT 1 the output, choose a detailed name. North American Headquarters EMEA SALES 1375 Willow Lake Blvd, Suite 103 23, avenue du Général Leclerc Vadnais Heights, MN 55110 92340 BOURG-LA-REINE FRANCE E-Mail : usasales@rsivideotech.com E-Mail : emeasales@rsivideotech.com W Panel www.videofied.com...
