Vimco LUTRON SVQ-4GD-OCIT Operating Instructions

Operating Instructions
Please Leave for Occupant
D e s c r i p t i o n
The SVQ-4GD-OCIT Hand-held Remote
Control provides control of Sivoia
QED window shades. The user can
TM
individually select up to four groups of shades
by pressing a window group button (1-4). Each
group of shades can be controlled individually
or all groups (1-4) can be selected for control of
all groups simu l t a n e o u s l y. Each window group
(1-4) can consist of one or more shades. For
Sivoia QED Electronic Drive Units (EDUs),
please refer to the Sivoia QED Wiring and
Programming Guide or the Sivoia QED
Technical Reference Guide for the setup
procedure. For Sivoia Electronic Drive Units
(EDUs), please refer to the Sivoia Electronic
Drive Unit installation instructions or the Sivoia
Technical Reference Guide for the setup
procedure.
N o t e : Pressing any button while the
shade is moving will stop the shade.

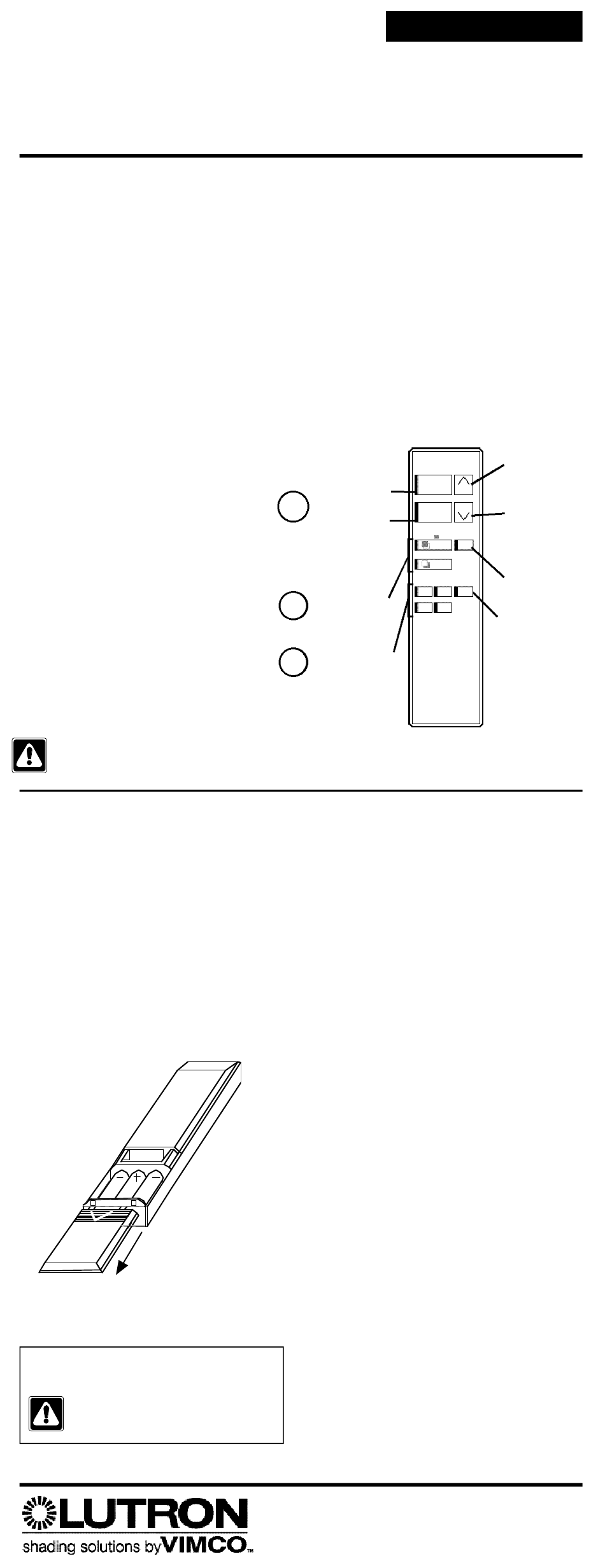

B a t t e ry Replacement
The SVQ-4GD-OCIT Infrared Hand-held
Remote Control uses 3 AAA batteries which
are pre-installed (see diagram). For best results
use Energizer brand alkaline batteries. Do
®
not use NiCad batteries.
To replace batteries:
1. Remove the battery cover.
2. Replace with 3 size AAA alkaline
batteries as shown.
3. Replace the battery cover.
The Infrared Hand-held Remote Control is
safe for use around baths and spas.
DO NOT SUBMERGE IN WATER.
or Sivoia
®
Install 3 AAA
Alkaline batteries
with terminals as
shown.
Press on arrow, slide and lift
off battery cover.
S V Q - 4 G D - O C I T
Infrared Hand-held
Remote Control
O p e r a t i o n
Point the Infrared Hand-held Remote Control at the
Sivoia or Sivoia QED IR receiver.
A. Select the window group(s). Press the
appropriate window group button, 1, 2, 3, 4 or All
(default is All window groups).
B. Select the shade(s). Press the appropriate shade
button, Front, Rear or Both (default is Both
shades).
C. Operate the shade(s). Select the desired function
by pressing the appropriate button, Open, Close,
Raise or Lower.
Press here to
Open selected
shade(s) to
upper limit.
C
Press here
to Close
selected
shade(s) to
lower limit.
Press here to
B
select Front or
Rear shade.
Press to select
A
shade(s) in
window group
1, 2, 3 or 4.
E n g l i s h
Press here to
Raise selected
OPEN
shade(s).
CLOSE
Press here to
Lower selected
shade(s).
SHADE
Both
1
Press here to
select both Front
WINDOW
and Rear shades.
1 2 ALL
Press here to
3 4
select shade(s)
in all window
groups.
LUTRON
