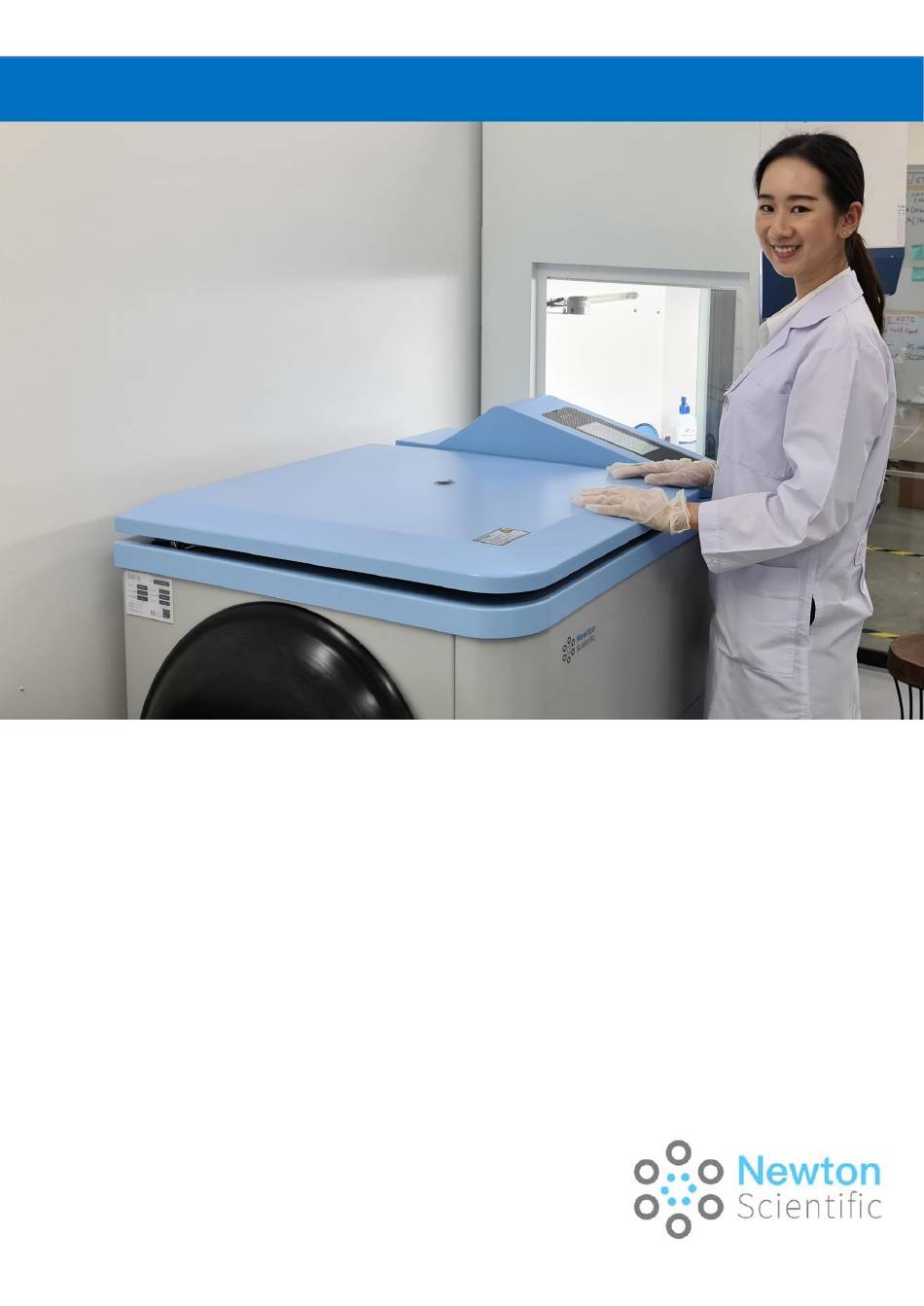

- Page 1 The Right Solution for Every Application Newton Scientific EVO 10 Floor Centrifuge Instruction Manual CEN0721-MAN1801...
-
Page 4: Table Of Contents
Maintenance ......................... 9 Symbols used in the manual ................10 Technical Specifications ................11 Technical Data ....................... 11 EVO 10 .............................. 11 Refrigerants ......................11 Rotor Selection ...................... 12 Transport and Set Up ..................13 Before Setting Up ......................13 Location ......................... - Page 5 Cleaning ......................... 25 Shipping and Disposal ..................26 Troubleshooting ................... 27 Mechanical Emergency Door Release ..............27 Troubleshooting Guide ..................28 Error Code ........................29 When to contact Customer Service ..............29 Limited Warranty ....................30 Newton Scientific EVO 10 Centrifuge...
-
Page 6: Preface
Newton Scientific EVO 10 Centrifuge Power Supply Cable Tool Kit for Rotor Exchange and Installation If any parts are missing, please contact the nearest Newton Scientific representative. Intended Use This centrifuge is a laboratory product used to separate substance mixtures of different densities. -
Page 7: Precautions
The centrifuge should be operated by trained specialists only. To ensure safe operation of the Newton Scientific Avante 8 / 8R Centrifuge, general safety regulations must be followed. Mind the regulations in your country. -
Page 8: Hazardous Substances
■ Always balance the samples. ■ Use only rotors and accessories for this centrifuge which have been approved by Newton ■ Scientific. Exceptions to this rule are commercially available glass or plastic centrifuge labware, provided they have been designed to fit rotor or adapter cavities and are approved for the speed or the RCF value of the rotor. -
Page 9: Operating
In case of rotor failure, the centrifuge can be damaged. Leave the room. Inform technical support. Maintenance WARNING The centrifuge housing is not to be opened by the operator. For user perform maintenance and care, refer to page 24. Newton Scientific EVO 10 Centrifuge... -
Page 10: Symbols Used In The Manual
WARNING means that injuries or material damage or contamination could occur. This symbol refers to biological hazards. Observe the information contained in the instruction manual to keep yourself and your environment safe. This symbol refers to electrical hazards. Newton Scientific EVO 10 Centrifuge... -
Page 11: Technical Specifications
Technical Specifications Technical Data Newton Scientific EVO 10 Cat. No. 87001000 Max RPM (rpm) 10,000 rpm RPM accuracy ±20 rpm Max RCF 18,300 × g Max Capacity 6×1000 ml Set Time 1s to 99h 59min 59s Temp Range -20℃～40℃ ±2.0℃... -
Page 12: Rotor Selection
The Newton Scientific Avante 8 / 8R Centrifuge is supplied without a rotor. Various rotors are available. If not stated otherwise the rotors can be used in the Newton Scientific Avante 8 centrifuge as also in the Newton Scientific Avante 8R centrifuge. -
Page 13: Transport And Set Up
Remove all protection foam and plastic wrapped. • Check if the items supplied are complete. See “Items Supplied” on page 6 or your delivery note. If the items supplied are incomplete, please contact Newton Scientific. Newton Scientific EVO 10 Centrifuge... -
Page 14: Location
Store the original centrifuge packaging. Contact a shipping company or the technical support for the transport. Always remove the rotor before moving the centrifuge. If you do not remove the rotor you might damage the centrifuge drive or centrifuge spindle. Newton Scientific EVO 10 Centrifuge... -
Page 15: Setting Up And Leveling
Only connect the centrifuge power cable to grounded electrical socket/isolator. 1. Turn off the power supply switch when not in use. Power supply switch is on the right-hand side of the EVO 10 centrifuge. 2. Check whether the cable complies with the safety standards of your country. -
Page 16: Storage
WARNING When removing the centrifuge and accessories from use if necessary clean, disinfect or decontaminate the entire system. In doubt contact the Newton Scientific technical support. • Before storing the centrifuge and the accessories, it must be cleaned and if necessary disinfected and decontaminated. -
Page 17: Control Panel
2. Current temperature inside the chamber 3. Time set and display 4. Set RPM (rotating speed) 5. Rotor selected 6. Acceleration rate 7. Deceleration rate 8. Program number 9. Start 10. Stop / Door Open 11. Menu Newton Scientific EVO 10 Centrifuge... -
Page 18: Operation
Close the centrifuge door by pressing down on it lightly in the middle or on both sides of it. The centrifuge door mechanism will click and lock in place. Lids should not be slammed as excessive force may cause damage or disrupt samples. NOTICE The centrifuge door should audibly click into place. Newton Scientific EVO 10 Centrifuge... -
Page 19: Rotor Installation
Rotor Installation The approved rotors for the Newton Scientific EVO 10 are listed in section “Rotor Selection” on page 12. Use only the rotors from this list in the centrifuge. CAUTION Unapproved or incorrectly combined accessories can cause serious damage to the centrifuge. -
Page 20: Acceleration / Deceleration Rates
Acceleration / Deceleration Rates The Newton Scientific Evo 10 offers you 10 selections for each plus the ability to have the option to set to “0” brake. The setting is displayed above the ACCEL / DECEL button on the touchscreen. -
Page 21: Precooling The Centrifuge
The rotor chamber is cooled down to the preset temperature. Programs The Newton Scientific EVO 10 Centrifuge is able to save up to 99 programs. It is only possible to save a program if the centrifuge is in standstill. Loading or saving of programs is not possible if the centrifuge is spinning. -
Page 22: Starting The Centrifuge Run
1. Open the centrifuge door. 2. Use the tool provided to loosen the nut on the spindle. 3. Remove the rotor by pulling upwards or use supplied rotor removal tool to assist to unlock the rotor from the spindle. Newton Scientific EVO 10 Centrifuge... -
Page 23: System Menu
Illustration on how rotor should be handled is displayed on the touchscreen. Error Code All error code and corresponding description will be displayed (or refer to page 29). Troubleshoot Provide diagnosis on possible causes and recommendations to resolve an error (or refer to page 28). Newton Scientific EVO 10 Centrifuge... -
Page 24: Maintenance And Care
Refrain from using any other cleaning or decontamination procedure than those recommended here, if you are not entirely sure that the intended procedure is safe for the equipment. • Use only approved cleansers. • If in doubt, contact Newton Scientific. Newton Scientific EVO 10 Centrifuge... -
Page 25: Rotor And Accessories Inspection
7. Once clean and dry, inspect the rotor and accessories. CAUTION: Before using any cleaning methods except those recommended by the manufacturer, users should check with the manufacturer of the cleaning agents that the proposed method will not damage the equipment. Newton Scientific EVO 10 Centrifuge... -
Page 26: Shipping And Disposal
WARNING: When removing the centrifuge and accessories from use for disposal you have to clean and if necessary, disinfect or decontaminate the entire system. In doubt contact the Newton Scientific technical support. For the countries of the European Union the disposal is regulated by the European Union’s Waste Electrical &... -
Page 27: Troubleshooting
Once the plug is removed it will expose the release cord). 4. Pulling the release cord trigger the mechanical door release. The centrifuge door will open and the samples can be removed. Newton Scientific EVO 10 Centrifuge... -
Page 28: Troubleshooting Guide
Damage shock absorber Contact a service technician. Centrifuge run cannot be Control system error Switch the centrifuge off and started on again. If the problem persists, contact a service technician. Newton Scientific EVO 10 Centrifuge... -
Page 29: Error Code
If you need to contact technical support, please provide the order no. and the serial no. of your centrifuge. This information can be found on the nameplate at the left-hand side of the centrifuge. cable. In addition, the technical support also needs the Software version. Both are available in the system menu. Newton Scientific EVO 10 Centrifuge... -
Page 30: Limited Warranty
No individual may accept for, or on behalf of Newton Scientific, any other obligation of liability, or extend the period of this warranty. For your reference, make a note of the model and serial number, date of purchase, and supplier here.
