Summary of Contents for aRIEquipment GAIA

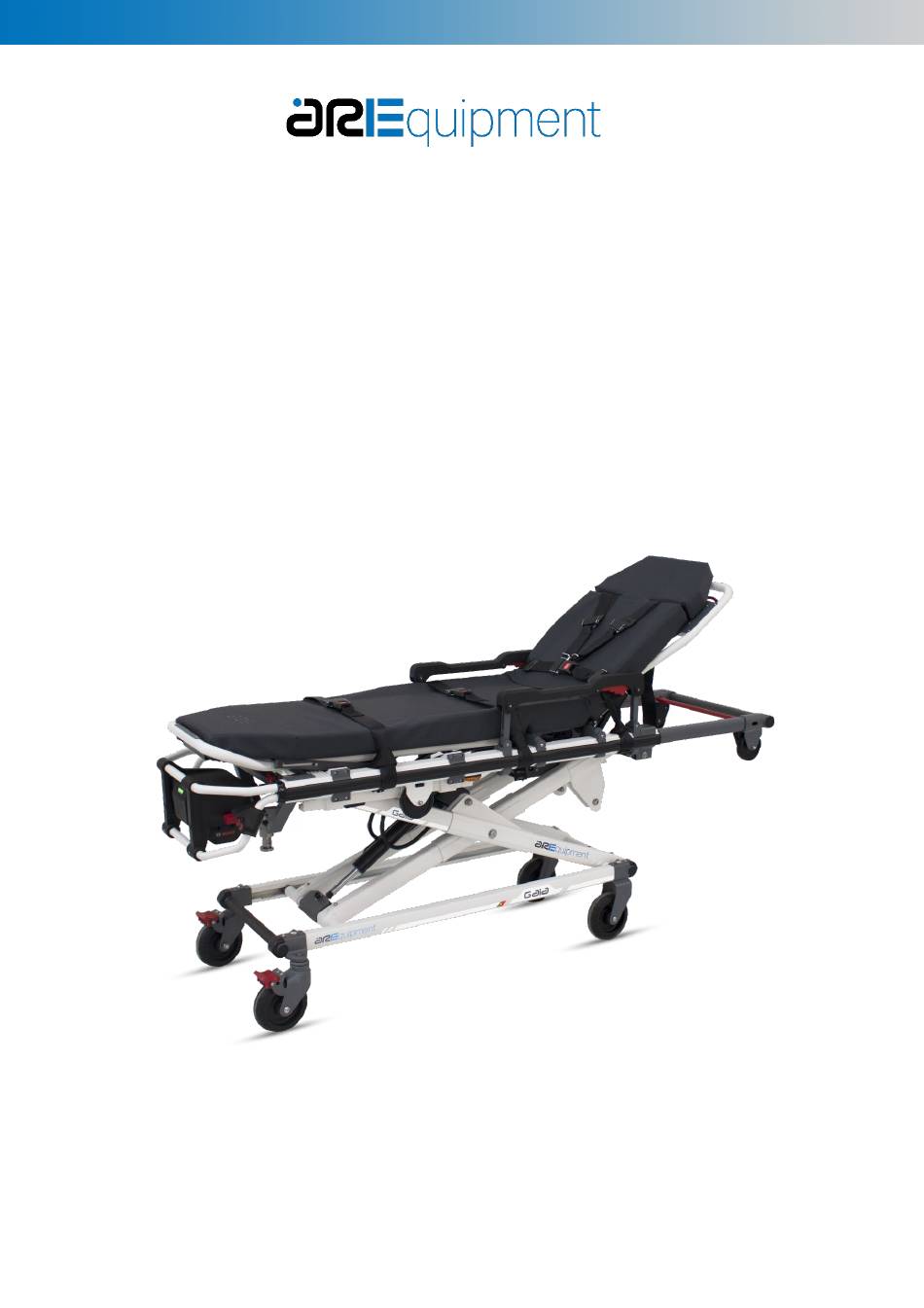

- Page 1 GAIA and GAIA E Powered Stretcher MAN AR 74/03/22/01...
- Page 2 Graphics, symbols, warnings on the device Graphics Instructions Up: indicates that the transport package should be vertically up during transport Fragile goods: indicates that the transport package contains fragile goods and should be handled with care. Rain proof: indicates that the package is rain proof Stacking layer limit: indicates the maximum number of layers that can be stacked for the same transportation package.
- Page 3 1. Product Instructions This product consists of stretcher (framework, wheels, brackets, hydraulic system), accessories (battery,). The stretcher bracket made of aluminum alloy and steel, the frame made aluminum alloy. 3) According to the electric shock protection classification, this product belongs to the ordinary equipment of the internal power...
-
Page 4: Use Method
5 Use Method 5.1 Adjust the backrest angle: Hold the red handle under the head end of the stretcher and lift it up; when you need to return to the original position, hold the red handle and down to the original shape. The above actions are done by mechanical telescopic tubes (Figure 1). - Page 5 Figure3 Figure4 Manually raise: Hold the manual pressure relief handle, and two operators need to lift the stretcher at both ends of the stretcher. To loosen the handle in place and wait until the stretcher is fully stable then release the hand of the stretcher. Manual drop: Two operators will now lift the stretcher and then hold the manual pressure relief handle.
- Page 6 5）When the battery is charging, the green light on the charger flashes; when it is full, the green light stays on. When the way to charge is wrong the red light will be 7. Stretcher Track Push the stretcher onto the stretcher rails (Figure 7), and place the four small wheels on the stretcher on the track (be sure to fold the stretcher in the track), then fold the stretcher (press the "-"...
- Page 7 Figure11 Figure12 WARNING: When pushing and pulling the stretcher track, it must be ensured that the electric stretcher is fully folded to its shortest position, ensuring that the stretcher and the track is locked with the fixing platform. If the stretcher is pushed and pulled unlocked with the platform, and together they will be pulled out of the ambulance.
- Page 8 10.4 When fixing the platform, the position of the blue hole (pointed by the arrow on the platform) should be fixed with bolts as much as possible. If it cannot be fixed, it should be fixed with the nearest hole. (Figure 13) the green and red holes except the blue holes are fixed according to the body condition.
- Page 9 It can be folded when not using, and the operation steps are reversed following 5） the above steps No.1-4. Warning: The loading weight is 5KG Figure15 Figure 16 12. Power stretcher length adjustment (can be used in ordinary elevators or narrow spaces) Length adjustment of the stretcher surface: shorten the length by first adjusting the backrest angle to the maximum position, and then pull the red telescopic...
-
Page 10: Maintenance
In the process of use, the operator must follow the instructions, or the company will not be liable for any risk. 2. When the stretcher is getting off the ambulance, it should be carried out on a flat ground. To ensure safety, the car body must wait until the legs of the wheels are fully extended in the air before the wheels can leave the car, so as to avoid the ambulance falling forward and injuring the patients when the stretcher lands. - Page 11 installed. b) Full compliance with the detergent manufacturer's dilution recommendations. 3. Check the condition of each part of the stretcher before each use, and check whether the fixing parts such as screws are loose, and fill the moving parts of the stretcher every three months.
