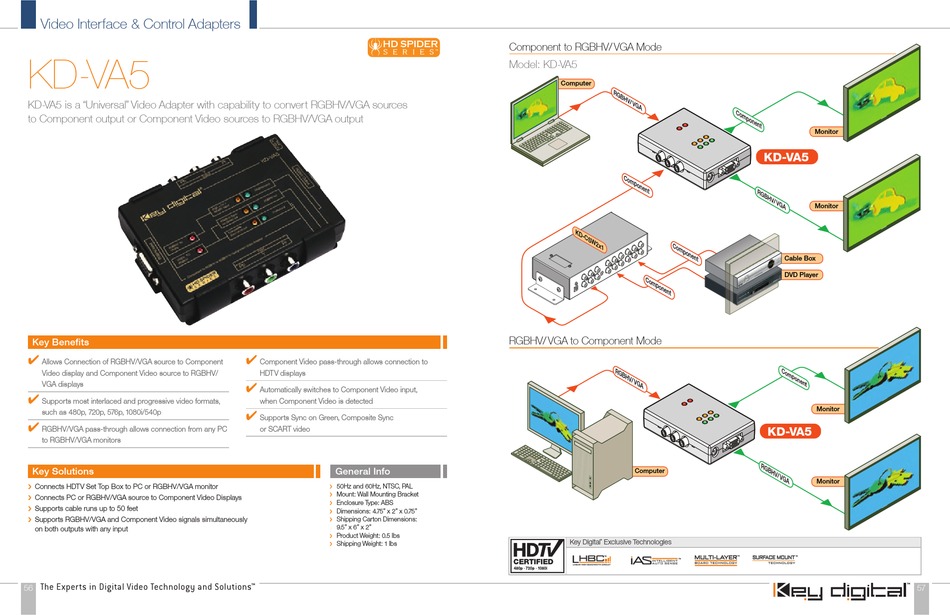

Key Digital KD-VA5 Specifications

Video Interface & Control Adapters
KD-VA5
KD-VA is a "Universal" Video Adapter with capability to convert RGBHV/VGA sources
to Component output or Component Video sources to RGBHV/VGA output
Key Benefits
4
Allows Connection of RGBHV/VGA source to Component
Video display and Component Video source to RGBHV/
VGA displays
4
Supports most interlaced and progressive video formats,
such as 480p, 720p, 576p, 1080i/540p
4
RGBHV/VGA pass-through allows connection from any PC
to RGBHV/VGA monitors
Key Solutions
Connects HDTV Set Top Box to PC or RGBHV/VGA monitor
›
Connects PC or RGBHV/VGA source to Component Video Displays
›
Supports cable runs up to 50 feet
›
Supports RGBHV/VGA and Component Video signals simultaneously
›
on both outputs with any input
6
4
Component Video pass-through allows connection to
HDTV displays
4
Automatically switches to Component Video input,
when Component Video is detected
4
Supports Sync on Green, Composite Sync
or SCART video
General Info
50Hz and 60Hz, NTSC, PAL
›
Mount: Wall Mounting Bracket
›
Enclosure Type: ABS
›
Dimensions: 4.75" x 2" x 0.75"
›
Shipping Carton Dimensions:
›
9.5" x 6" x 2"
Product Weight: 0.5 lbs
›
Shipping Weight: 1 lbs
›
Component to RGBHV/ VGA Mode
Model: KD-VA
Computer
Computer
K D
- C S
W 2
x 1
K D
- C S
W 2
x 1
RGBHV/ VGA to Component Mode
Computer
Computer
Key Digital Exclusive Technologies
®
Monitor
Monitor
KD-VA5
KD-VA5
Monitor
Monitor
Cable Box
DVD Player
Cable Box
DVD Player
Monitor
KD-VA5
Monitor
KD-VA5
Monitor
Monitor
