Trimble 5600
Bluetooth Dongle
Step

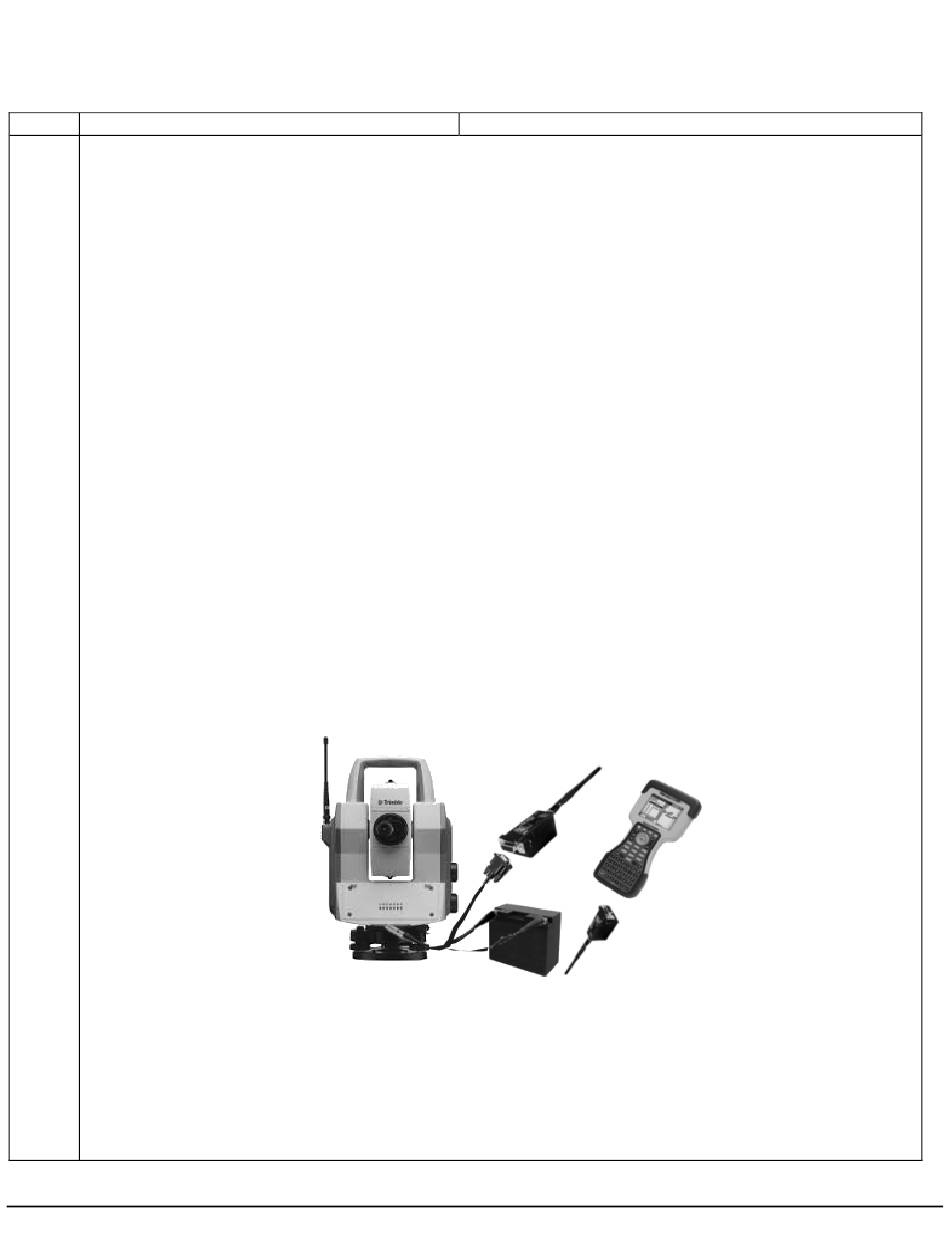

The purpose of this guide is to show the basics of replacing the Trimble radios used with the Trimble 5600/
TDS Ranger Robotic instrument configuration with two Parani Bluetooth Dongles, one for the Robot and
The same setup should work with any Data collector that has a serial port and no long range Bluetooth. If
the client has a long range Bluetooth data collector then the second Parani long range Bluetooth adapter
Contact eGPS to purchase TWO of each of the following:
Parani-SD1000 Bluetooth Serial Adapter
Dipole Antenna - RP-SMA Right-Hand Thread, 5dBi
Extended Battery pack for Parani-SD1000
External Power Adapter - Includes one of four regional power plugs
DB9 Female to Male Gender
5600 Geodimeter to Data Collector Cable w/ Power Clips
1
eGPS Solutions
(770) 695-3361 | www.eGPS.net
Action
one for the Data Collector.
would not be needed.
Below is a list of the items used:
Display
Page 1/3
Advertisement
Table of Contents
Summary of Contents for eGPS Solutions Trimble 5600
- Page 1 Action Display The purpose of this guide is to show the basics of replacing the Trimble radios used with the Trimble 5600/ TDS Ranger Robotic instrument configuration with two Parani Bluetooth Dongles, one for the Robot and one for the Data Collector.
- Page 2 Trimble 5600 Bluetooth Dongle Step Action Display a.) On the Bluetooth Dongle, attach the extended life battery, attach the long range 5dBi antenna, and set the dip switches to 9600 baud rate as shown. To Pair the two Bluetooth devices: b.) Turn on SD1 and SD2 and reset both of...
- Page 3 Trimble 5600 Bluetooth Dongle Step Action Display a) Power On the 5600 Robot with the data collector connected by the cable to the instrument and battery b) Run through the leveling/calibration routine Note; The data collector instrument will need to be set to communicate with the instrument directly.
