Stillwater Designs Kicker VSS SCAMA10 Quick Start Manual

For 2010-2015 chevrolet camaro vehicles
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

Designed for 2010 - 2015 Chevrolet
Subwoofer Assembly
Subwoofer Harness
©2012 Stillwater Designs
SCAMA10-A3-20151028

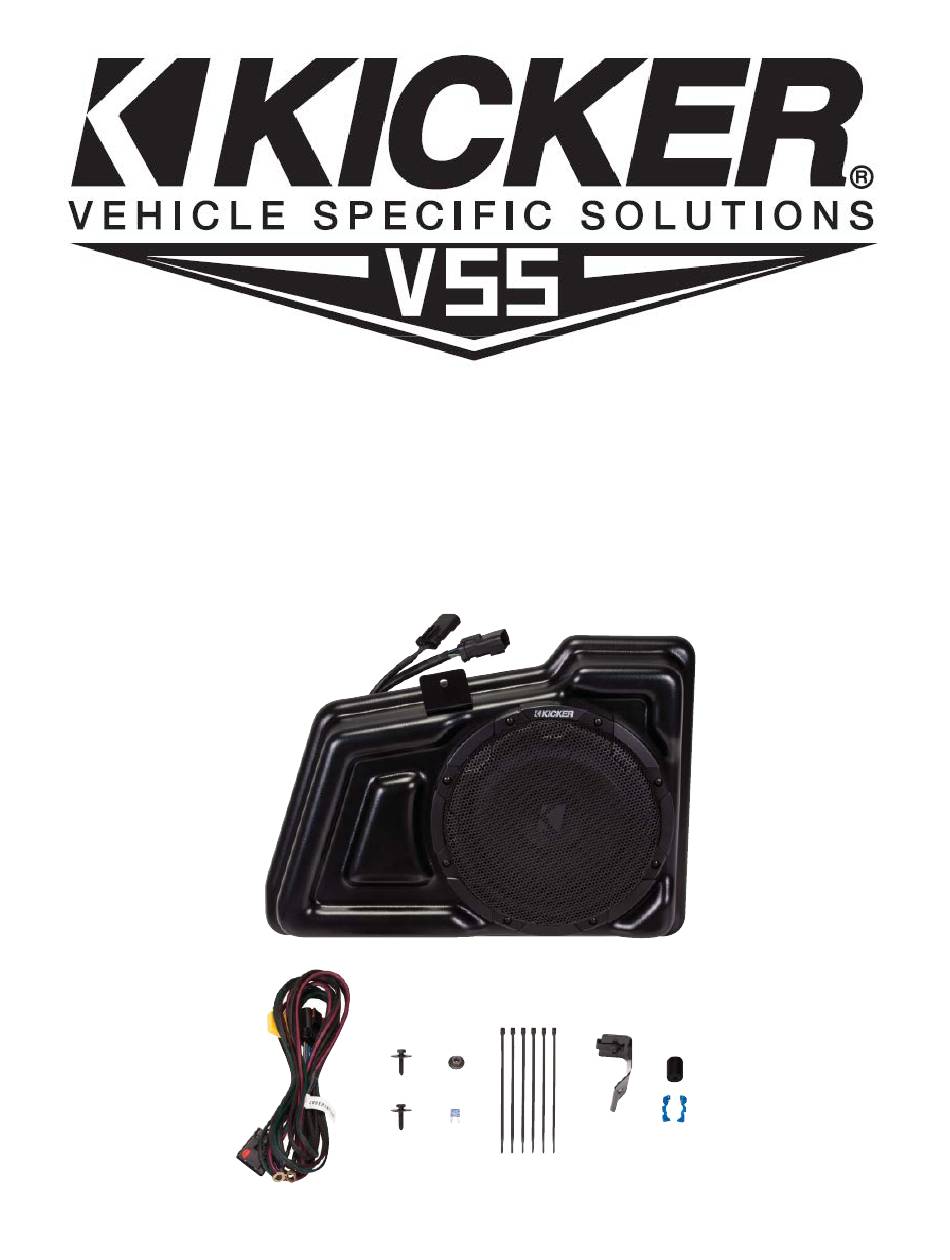

SCAMA10
M6 Nut
M6 Bolts x2
Fuse Adapter
Harness
Camaro vehicles
®
Subwoofer Bracket
Wire Ties x6
Wire Taps x2
Rubber Bumper
