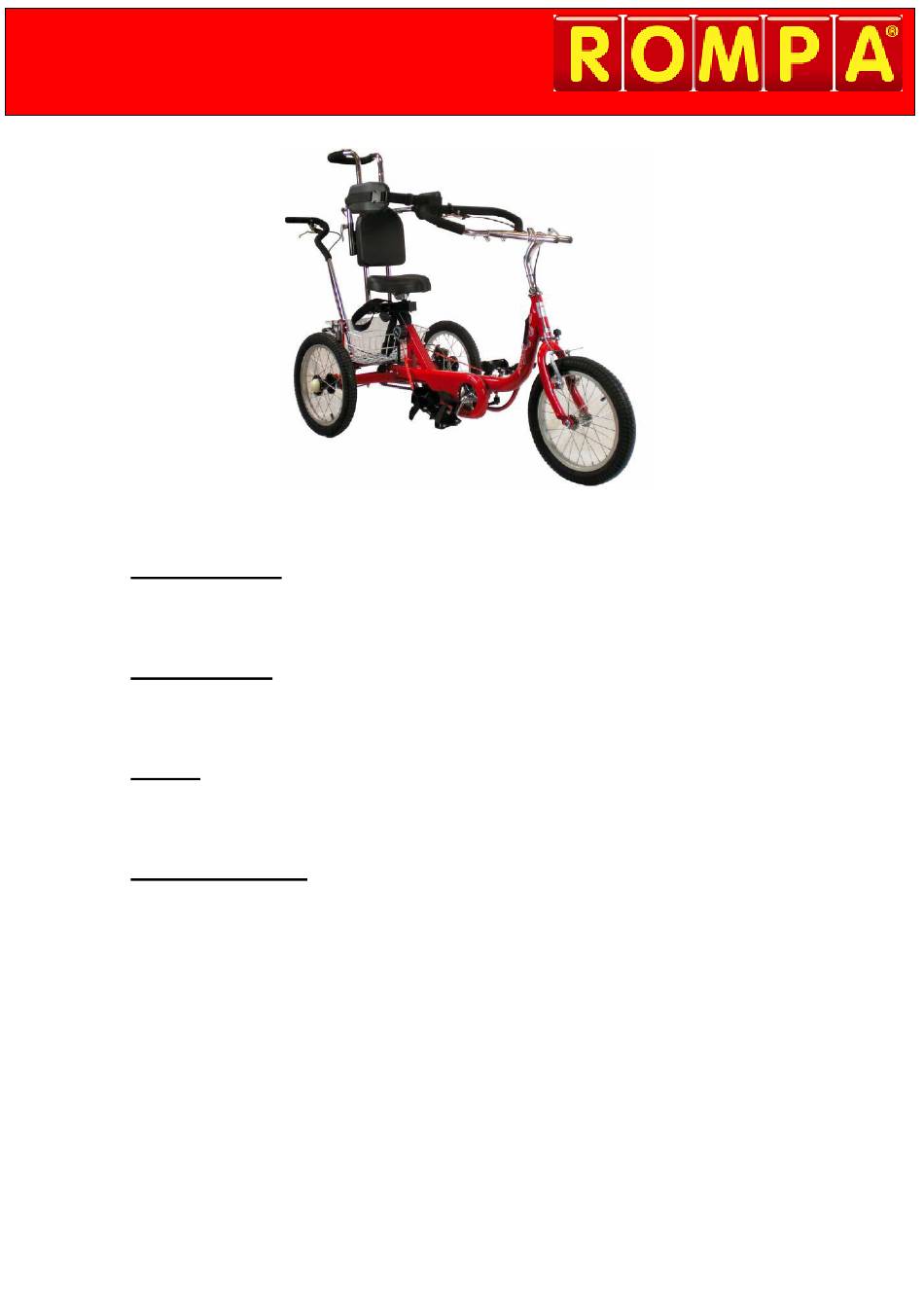

1. Product Name
Rehatri
2. Product Code
21040
3. Colour
Red
4. Brief Description
Specifically designed for riders with special needs to build self-confidence, independence
and mobility.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rehatri and is the answer not in the manual?

Questions and answers

Summary of Contents for Rompa Rehatri

  • Page 1 1. Product Name Rehatri 2. Product Code 21040 3. Colour 4. Brief Description Specifically designed for riders with special needs to build self-confidence, independence and mobility.
  • Page 2 5. Contents...
  • Page 3 6. Snoezelen® Stimulations Vestibular 7. Best Use Use outside 8. Compatible ROMPA® Products Not applicable 9. Starting Up Follow the installation instructions carefully below to assemble the bike.
  • Page 4: Detailed Description

    11. Safety Please check equipment carefully for any damage that may result during shipping before use. Contact ROMPA immediately if there are problems. Always supervise the use of this product. Client safety is dependent on the appropriate choice of activity to match, yet challenge physical ability.
  • Page 5: Installation

    13. Installation Tools Required for Assembly 6mm and 5mm Allen wrench (included) 10 mm wrench or socket 14mm wrench or socket 15mm wrench or socket 22mm wrench or socket #2 Phillips head screwdriver Slide the front frame section into the rear frame section. Slide rear wheels onto axle on each side.
  • Page 6 Install rear axle nut onto left and right side of threaded axle. Use a 22mm socket/wrench to tighten. Install white axle nut cover onto axle nut, press firmly and then lightly tap with hammer. Loosen nuts on from wheel axle and then install from wheel on to fork, use a 15mm wrench or socket to tighten nuts.
  • Page 7 Insert frame safety pin through both sections of the frame fully. Install frame knob by turning in clockwise, you will only be able to turn ½ a turn at a time. Install loading brake by placing brake assembly on top of frame and installing the two Allen bolts from the bottom.
  • Page 8 Install the handlebar stem by placing it in the head tube, marked on the side of the stem is the maximum height line; please pay close attention to this. Remove two 6mm Allen bolts from steering stem handlebar clamp, insert handlebar and replace handlebar clamp and tighten two 6mm Allen screws.
  • Page 9 Install the pedal leveller pulley by turning it clockwise into the front hole on the black plate. Located at the rear are two 6mm Allen bolts, remove both Allen bolts.
  • Page 10 Place the white basket on the black plate and align the holes in the basket with the holes in the black plate Place metal basket brace in basket so that it aligns up with the two holes that you removed the 6mm Allen bolts from. Install two 6mm Allen bolts that you removed earlier through the metal basket brace and into the rear frame and turn clockwise to tighten.
  • Page 11 Remove the black knob located on the left side of the fork. Located at the rear is a steering knuckle (tie rod end). Install the long steering bar into the steering knuckle by turning clockwise. Install the other end of the steering control arm onto the shaft located on the left side of the fork.
  • Page 12 Install left and right pedals, the right pedal will turn clockwise to tighten and the left will turn counter clockwise to tighten. Insert pedal leveller cord through each pedal, tie a knot in one end to hold in place. Place seat onto seat post and tighten using a 14mm wrench or socket. Loosen seatback securing knob and insert seatback into seat post.
  • Page 13 Turn the Ferrell located on the rear brake handle so that the slots in it and the locking nut align with each other. Pull in on the lever and pull out on the cable barrel arm. Insert cable barrel into cable barrel arm. Slide cable through slots of Ferrell and locking nut, the turn the locking nut and Ferrell 180 degrees from each other.
  • Page 14: Care And Maintenance

    15. Troubleshooting Not applicable Further copies of these instructions can be downloaded at www.rompa.com We hope you find our instructions invaluable. If you have any suggestions for improving them further your comments will be greatly received – please contact us at producthelp@rompa.com...
