Titan Controls HAWTHORNE ARES Instruction Manual

Garden heater lp or ng
Hide thumbs

Advertisement

Quick Links

Download this manual

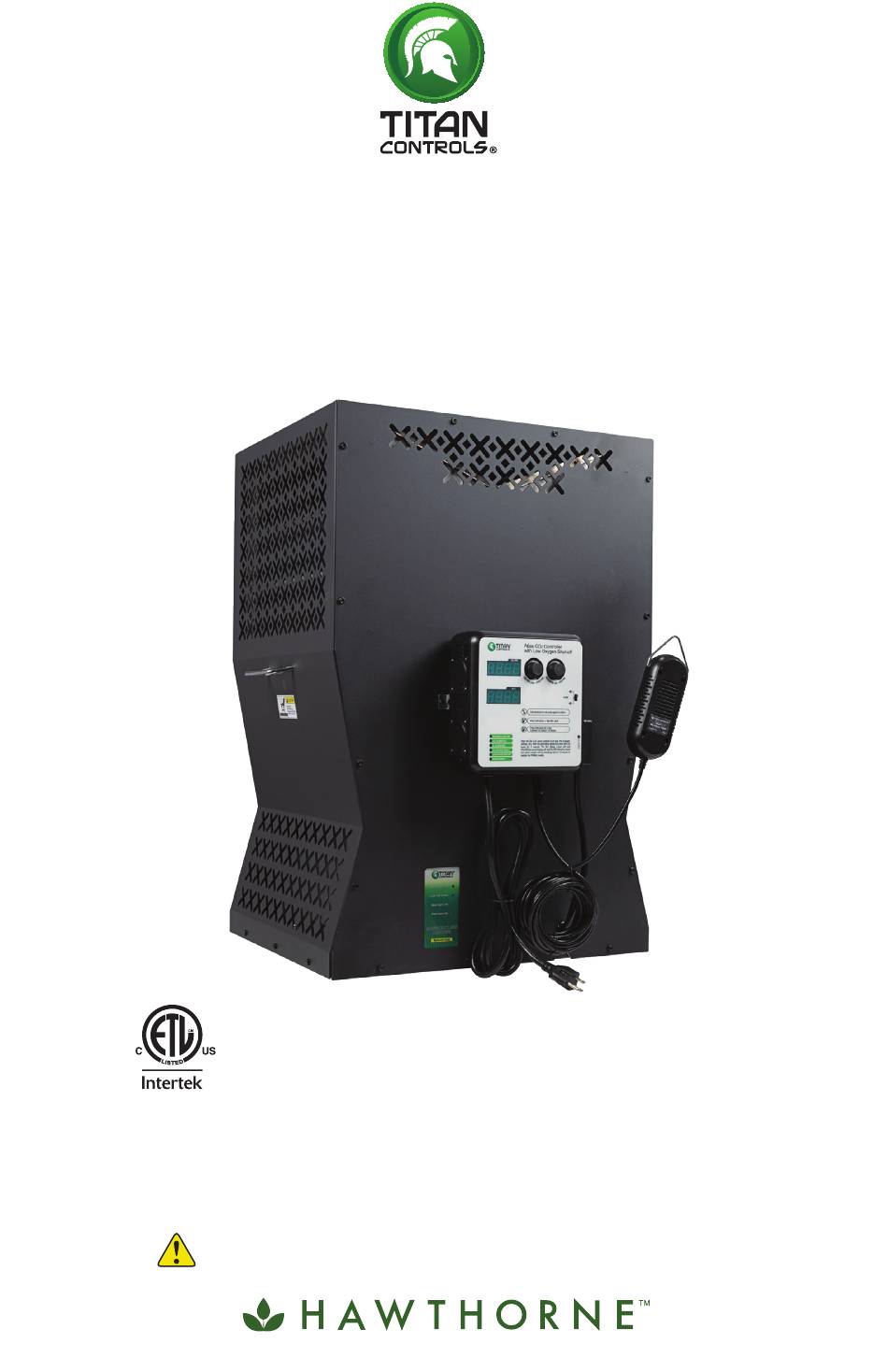

ARES
®
Garden Heater LP or NG
Instruction Manual
This Garden Heater Design Complies With Requirements Embodied
in The American National Standard/National Standard of Canada
Shown Below. ANSI Z21.11.2:19 Gas-fired Unvented Room Heaters.
ATTENTION INSTALLING PERSONNEL
Prior to installation, thoroughly familiarize yourself with this Installation Manual.
Observe all safety warnings. During installation or repair, caution is to be observed.
It is your responsibility to install the product safely and to educate the customer on its safe use.
RECOGNIZE THIS SYMBOL AS A SAFETY PRECAUTION.
titancontrols.net

Advertisement

loading
Need help?

Need help?

Do you have a question about the HAWTHORNE ARES and is the answer not in the manual?

Questions and answers

Summary of Contents for Titan Controls HAWTHORNE ARES

  • Page 1 ARES ® Garden Heater LP or NG Instruction Manual This Garden Heater Design Complies With Requirements Embodied in The American National Standard/National Standard of Canada Shown Below. ANSI Z21.11.2:19 Gas-fired Unvented Room Heaters. ATTENTION INSTALLING PERSONNEL Prior to installation, thoroughly familiarize yourself with this Installation Manual. Observe all safety warnings.
  • Page 2 WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life. - Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

  • Page 3: Replacement Parts

    Replacement Parts Ordering Parts When reporting shortages or damages, or ordering repair parts, give the complete unit model and serial numbers as stamped on the unit’s nameplate. The models are: Model HGC702884: Ares Garden Heater NG Model HGC702886: Ares Garden Heater LP Replacement parts for this appliance are available through your contractor or local distributor.

  • Page 4: Safety Instructions

    ②Please replace the ignition pin when the ignition pin cannot ignite the pilot flame (Replace every two years). Safety Instructions 1. Unscrew the back cover plate and remove the back cover plate A; 2. Disconnect the ignition pin connecting terminal B, remove the metal clip C, and remove the old ignition pin D;...
  • Page 5 Safety Instructions To the installer Before installing this unit, please read this manual to familiarize yourself on the specific items which must be adhered to, including maximum external static pressure to unit, air temperature rise. The appliance and its appliance main gas valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psi (3.5 kPa).
  • Page 6 5. Clothing or other flammable material should not be placed on or near the appliance. 6. Any safety screen, guard, or barrier removed for servicing an appliance must be replaced prior to operating the appliance. 7. Installation and repair should be done by a qualified service person. The appliance should be inspected before use and at least annually by a professional service person.
  • Page 7 Overview of LP/NG Ares Garden Heater Garden heaters are used in greenhouses as supplemental to the normal solar heating and when necessary for supplemental heating to an HVAC system. Our heater is unique because it allows the grower to harness the byproduct of the combustion process, CO .
  • Page 8 Ares Garden Heater Specifications Product Model Ares Garden Heater LP / NG Power Input Requirements 120 V AC / 60 Hz / 1A Maximum input current: 120 V AC / 60 Hz; range: 400-2000 PPM; Atlas CO Controller with Low Oxygen accuracy: + /-100 PPM;...

  • Page 9: Installation Instructions

    Installation Instructions WARNING To prevent possible equipment damage, property damage, personal injury or death, the following bullet points must be observed when installing the unit. First, use the enclosed set of expansion rings, chains, and spring hooks to hang the Ares Garden Heater from structural members of the ceiling or greenhouse unistrut system rated for the load, or on a solid support;...
  • Page 10 WARNING 1. This heater has a built-in safety device (Tip Over switch); if the machine tilts, tips over, or falls, the heater will automatically shut down. The heater must be horizontal to operate. 2. Verify that you are connecting the proper gas source for your type of heater (LP or NG). 3.
  • Page 11 Operating Procedures for Ares Garden Heater After installation, perform the following steps: 1. Make sure the power switch is off and that the unit is unplugged. 2. Make sure there are no foreign objects or packaging material inside the heater. 3.
  • Page 12 16. The system will automatically shut off the Pilot valve and the Main valve when the heater is tipped over, or the power supply voltage is lower than 90 V AC. The indicators on the panel will flash. The system will restart the ignition sequence again after the fault has been resolved for 10 seconds.
  • Page 13 Independent flame detector monitoring. During steps 3 to 22, MCU continuously monitors the flame detector. If the detector fails, it will enter the Lock-Out state within 5 sec. 2 independent timers: Start timing when the Pilot valve is open and the Pilot flame is not established, system will Lock-Out after 10 min;...
  • Page 14 WARNING: 1. Do not manually ignite; this heater has an auto-ignition system. 2. Check for the smell of gas in the surrounding environment before attempting to turn on the heater. If you smell gas, do not use any electronic devices and open the windows or use a ventilating device.
  • Page 16 Component illustration Reset operation: When the system fails, it will lock-out automatically, and you need to press and hold the Reset button to manually reset it. (Note: Power cut-off and restart Liquid Propane Natural Gas will not release the fault. You Reset Reset (Press for 2 sec.)
  • Page 17 Operating Procedures for Atlas CO Controller with Low Oxygen Shutoff-Hardwire PPM UP MONITOR 1. Atlas CO Controller with Low Oxygen Shutoff-Hardwire Controller Overview If you have an optimal CO level for your greenhouse garden the Atlas CO Controller with Low Oxygen Shutoff controller is designed to allow you to accurately reach your desired CO levels.
  • Page 18 3. Work Mode PPM UP: The output is affected by both oxygen concentration and carbon dioxide concentration. When the carbon dioxide concentration exceeds the set value, the Greenhouse Heater will be turned off, and when the oxygen concentration is lower than 18%, the Greenhouse Heater will be turned off.

  • Page 19: Product Diagram

    8. Specifications Power: 120 V AC / 60 Hz / 1A; range: 400-2000 PPM; accuracy: + /-100 PPM; range: 0-25%; accuracy: +/- 2%; 9. CO Control Logic Diagram PPM Up Garden Heater +Deadband Setpoint Time Product Diagram Front...
  • Page 20 Back Regulator Valve manual switch: Turn clockwise to close, counterclockwise to open. Front Back...
  • Page 21 Accessories Side Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing. Module decomposition diagram Housing Modules Atlas CO controller with Low Oxygen Shutoff-Hardwire Module decomposition diagram...
  • Page 22 Dimensioned Production Drawings 86.8 30.16...
  • Page 23 Note: If any of the original wire as supplied with the appliance must be replaced, it must be replaced with a wire of at least a temperature rating.

  • Page 25: Warranty Information

    • Titan Controls will, at its discretion, repair or replace the controller. ® • Factory calibration services are available for all Titan Controls ® • Returning Units: Please contact your retail store for returns.
  • Page 26 Carefully package the unit in its original packaging. If the unit is damaged in shipment, we cannot be responsible. Once we receive the unit, we will repair the controller within 48 business hours and return it to you via UPS ground shipment. Include the following if returning directly to Titan Controls • Proof of purchase •...
  • Page 27 Notes: 1 Square = ____ Foot/Feet...
  • Page 28 Manufactured for Hawthorne Hydroponics LLC, a subsidiary of The Hawthorne Gardening Company, 3204 NW 38th Circle, Vancouver, WA 98660 HawthorneGC.com ©2021. World rights reserved. titancontrols.net 06/21/2021 ©Titan Controls LB17721 ®...
