Summary of Contents for SmartH Wi-fi Plug
-
Page 3: Set Up Router

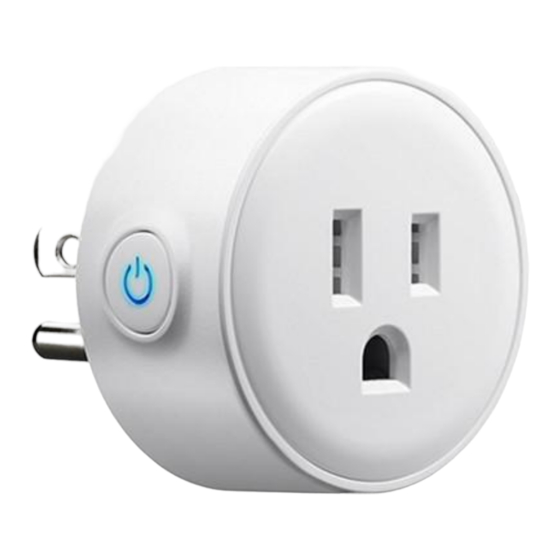

Set Up Router Please keep network available 2.4GHz 5GHz The router supports the 2.4GHz WiFi (doesn't support the 5GHz), and is connected to the WiFi network. Please set the parameters of the router before connecting the WiFi network, and record the SSID and password of your WiFi. - Page 4 Smart Plug Instructions Parameter: • Product: Smart Plug • Model:Wi-fi Plug • Rated Voltage: 120V • Rated Current: 10A (Max.) • AC Frequency: 50/60Hz 1.On/Off Button 2.Press Long Time Restore to Factory Settings...
-
Page 5: Ready To Work
Ready to work Step1:Plug in and Press the power button, the blue light is Step2:When The Blue Light Is Always On, Press And Hold The Button For 5 Seconds Step3:Let the Blue Light Flash(rapid blink) • Blue light rapid blink : Pairing mode to Connect WiFi. •... - Page 6 lnstall Free App Download APP: scan the QR code below to download and install. Register and login: open the "MySmartH" APP to register and login according to the prompts. Customer Support...
- Page 7 Two pairing modes are provided in the MySmartH app. The Wi- Fi Easy Connect (EZ) mode is the default mode, and the access point (AP) mode is the compatible mode. The user can tap the pairing mode drop-down list in the top-right corner of the page to switch between the pairing modes.
- Page 8 3. Choose WiFi and enter password and tap “Next”; 4. Confirm that the blue indicator light of the smart Plug is flashing quickly and tap"Next";...
- Page 9 5. Tap “Done”;...
- Page 10 Now your Smart Plug is successfully added to MySmartH app.
- Page 11 Manually add Wi-Fi devices in AP mode If the connection fails, please try AP mode If a dual-band network that supports both 2.4 GHz and 5 GHz bands is used, the AP mode can be used to add devices. In AP mode, follow the instructions to enable the indicator to blink slowly, select Confirm the indicator is blinking slowly, and then tap Next.
- Page 12 Ready to work 1.Plug in and Press the power button, the blue light is on. 2.When The Blue Light Is Always On, Press And Hold The Button For 5 Seconds. 3.Let the Blue Light Flash(blink slowly),If the indicator light of the smart socket is flashing fast, please continue to press and hold the power button until the fast flashing turns to slow flashing.
- Page 13 Connect the Smart Plug to MySmartH App 1. Open "MySmartH" APP, press the'+' in the upper right comer of the main screen; 2. Choose "Electrical Engineering"、click "Smart Plug".
- Page 14 3. Choose WiFi and enter password and Tap “Next”; 4. Tap"AP Mode"in upper right screen;...
- Page 15 5. Tap “Next”; 6. Click"SmartLife-1DD4"; In AP mode, on the Wi-Fi setting page of the mobile phone, find the Wi-Fi hotspot starting with SmartLife.
- Page 16 7.Tap the Wi-Fi hotspot to connect the mobile phone to it. 8.After a successful connection, go back to the app to start pairing.
- Page 17 The device pairing page on the app appears again and the pairing process continues. 9. Tap “Done”...
- Page 18 Now your Smart Plug is successfully added to MySmartH app.
