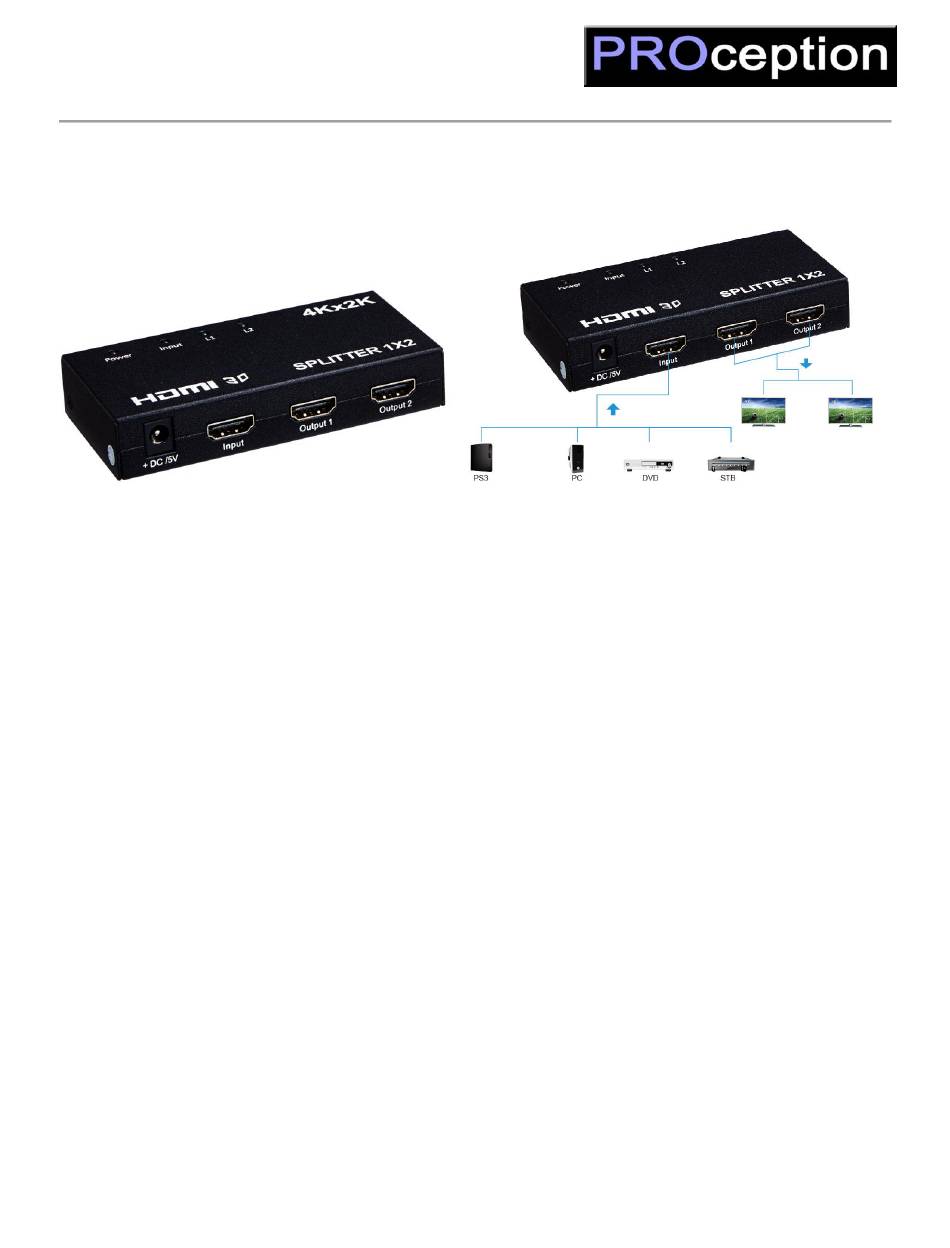

PROHDMISP12 & PROHDMISP14
2 & 4-Way HDMI Splitter
The splitter allows one HDMI device to be split easily to multiple HDMI displays, e.g. TV, monitor,
projector, etc. The splitter can also be placed at the end of a long cable to regenerate the HDMI signal.
Kit Contents:
• HDMI splitter.
• Power adapter.
• User manual.
Instructions:
Device is not "hot swappable" always disconnect power before inserting or removing any cable.
1. Connect a HDMI cable from the device's HDMI output into the HDMI splitter's input.
2. Connect a HDMI cable from the splitter's output to the displayer's HDMI input.
3. Repeat step 2. for the number of displays required.
4. Connect the 5V power supply to the HDMI splitter.
sales@blake-uk.com
www.blake-uk.com
0114 223 5000
PD2011-0564-02
Advertisement
Table of Contents
Related Manuals for PROception PROHDMISP12
Summary of Contents for PROception PROHDMISP12
- Page 1 PROHDMISP12 & PROHDMISP14 2 & 4-Way HDMI Splitter The splitter allows one HDMI device to be split easily to multiple HDMI displays, e.g. TV, monitor, projector, etc. The splitter can also be placed at the end of a long cable to regenerate the HDMI signal.
- Page 2 Features: • Support HDMI 1.4b. • Support Full 3D. • Support HDCP 1.4. • Support HDMI resolution up to 3840x2160/30Hz. • Support the max baud rate of 3.4G and max bandwidth of 340MHz. • Support deep color 8/10/12bit. • Support input up to 8m AWG26 HDMI standard cable length, output up to 8m AWG26 HDMI standard cable length.
