EXP150 Setup

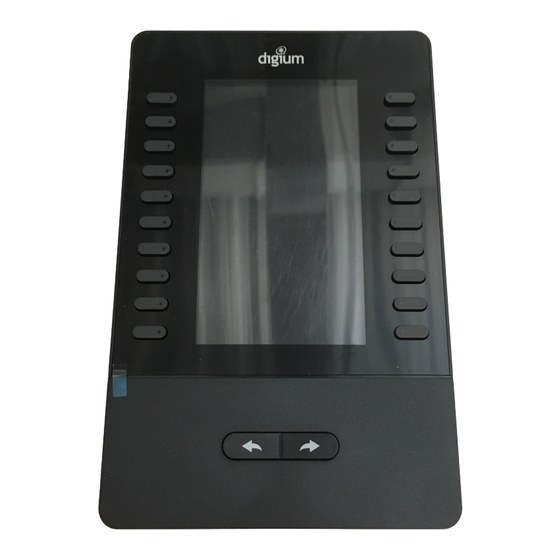

The Sangoma EXP150 Expansion Module is used to extend the functionality of Sangoma D-Series Phones by providing programmable hard keys

to be used for things like BLF (Busy Lamp Field), speed-dial, call transfer, extensions..etc. This allows users to deliver single-button access to

contacts / extension. The EXP150 can be physically attached to the Sangoma phone, or can standalone beside the phone. Connect up to 6

EXP150 units to add up to 240 programmable keys.

The EXP150 Expansion Module is supported on Sangoma D65 IP Phones.

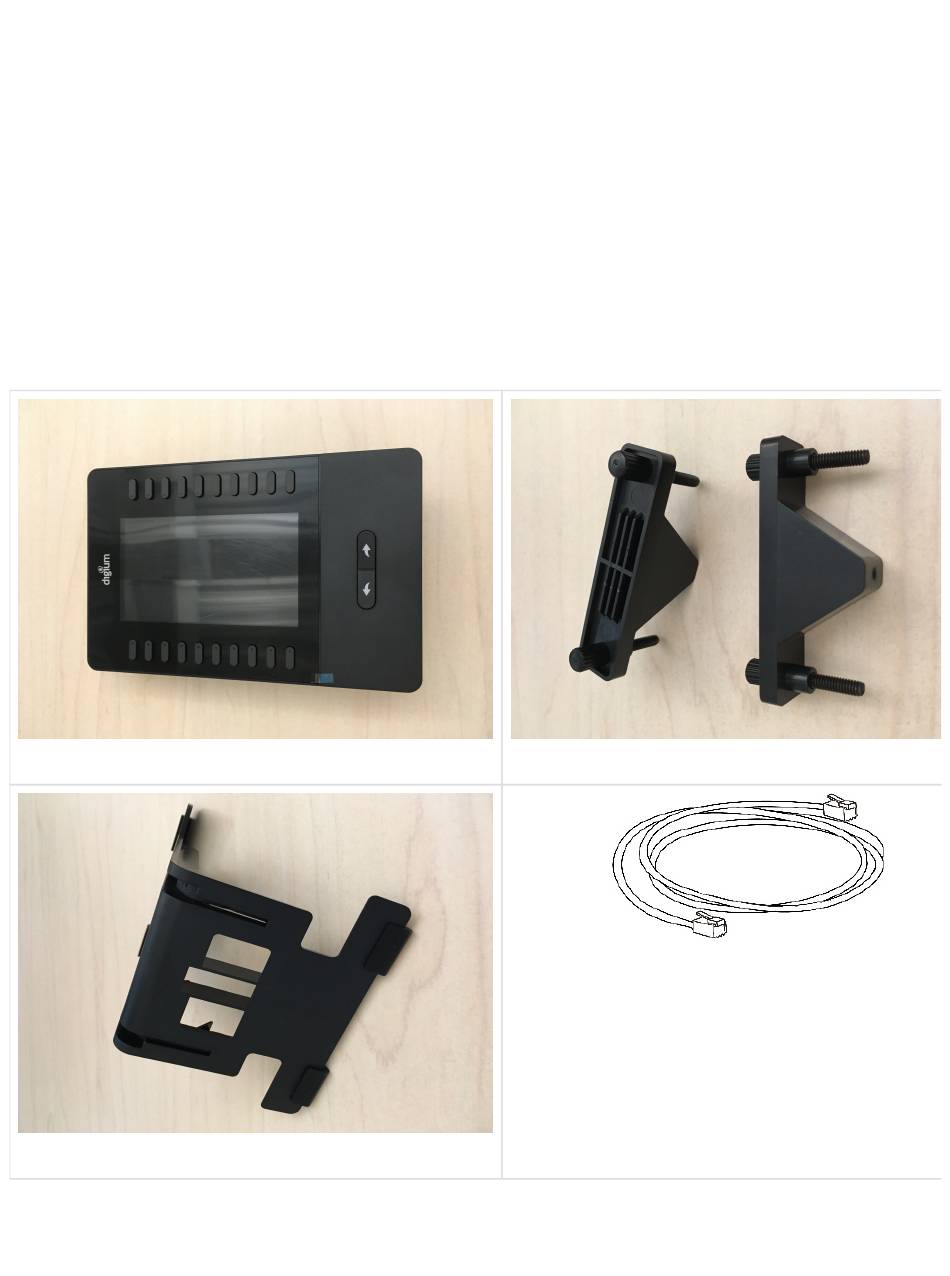

Expansion Module

Stand

Connecting Brackets with screws (x2)

Up-link Ethernet Cable

Table of Contents

Do you have a question about the EXP150 and is the answer not in the manual?

Page 1 BLF (Busy Lamp Field), speed-dial, call transfer, extensions..etc. This allows users to deliver single-button access to contacts / extension. The EXP150 can be physically attached to the Sangoma phone, or can standalone beside the phone. Connect up to 6 EXP150 units to add up to 240 programmable keys.
Page 2 North American Type A Power Adaptor (Included) Connecting Plate Physical Overview Front Hard Keys: 20 programmable with dual-color (Red or Green) display LCD Display: 5-inch graphical, backlit full-color 480 x 800 pixels Paging keys: Navigate between 2 pages Rear...
Page 3 Lay the Sangoma phone face up on a smooth, flat surface Slide the Connecting Plate onto the Sangoma phone stand and the EXP150 stand, ensuring that the plate is fully inserted, all the way down onto the stands, as such:...
Page 4 Use the Connecting Brackets with screws to attach together multiple EXP150M units Attached units will look like Note that when using multiple EXP150M units, still, only a single Connecting Plate is employed, by the unit closest to the Sangoma phone. Connect EXP150M uplink cable...
Page 5 The EXP150M will not be fully usable until it is configured from Switchvox or via the phone's Smart BLF items configuration sheets. For questions about this, please refer to your Switchvox administrator, the EXP150 Expansion Module Setup for FreePBX wiki page, or see the Smart documentation.
