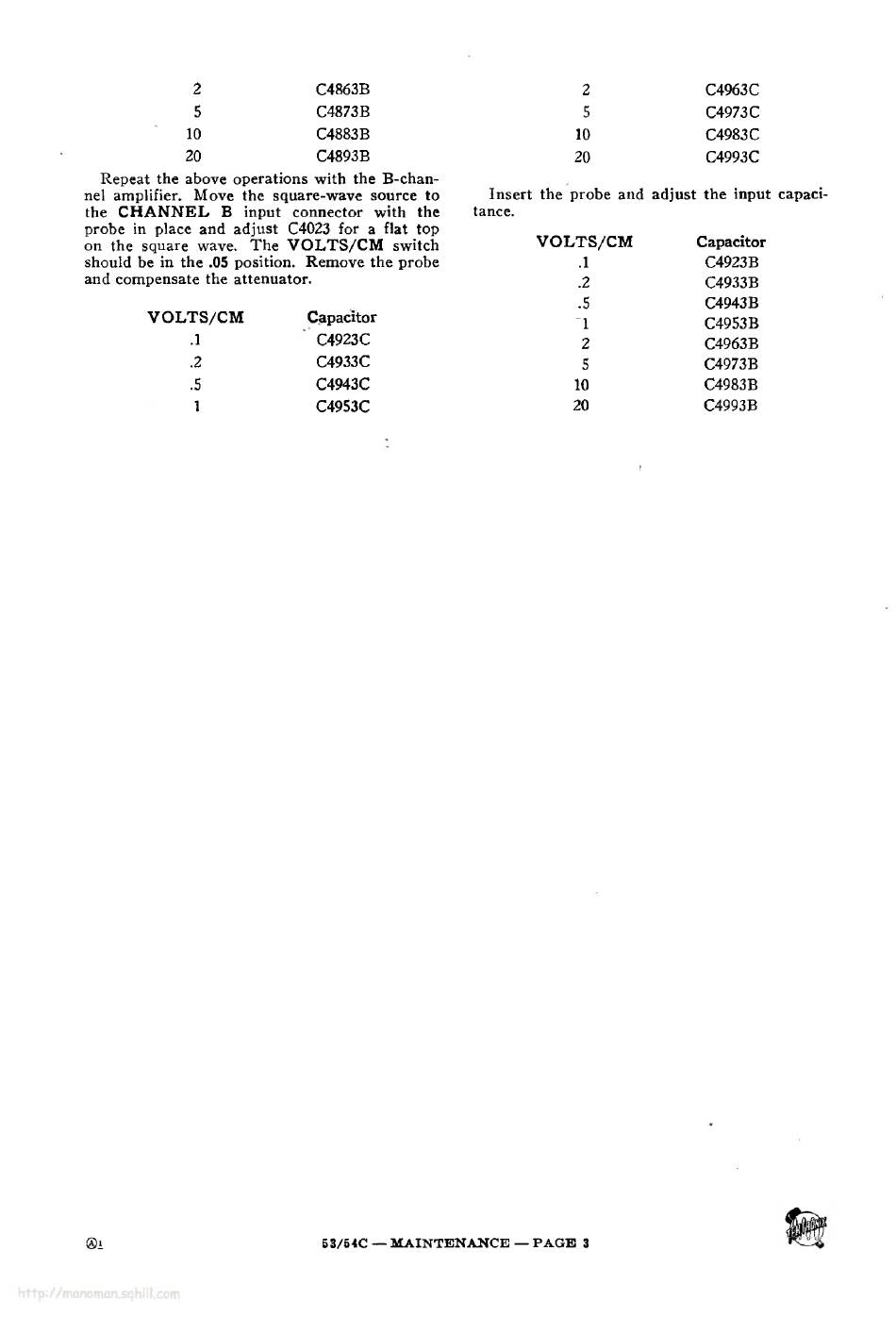

Tektronix 53C Instruction Manual page 10

2
5
10
20
Repeat the above operations with the B-chan-
nel amplifier. Move the square-wave source to
the CHANNEL B input connector with the
probe in place and adjust C4023 for a flat top
on the square wave. The VOLTS/CM switch
should be in the .05 position. Remove the probe
and compensate the attenuator.
VOLTS/CM
.1
.2
.5
1
C4863B
C4873B
C4883B
C4893B
tance.
Capacitor
C4923C
C4933C
C4943C
C49S3C
53/54C — MAINTENANCE — PAGE 3
2
5
10
20
Insert the probe and adjust the input capaci ­
VOLTS/CM
.1
.2
.5
1
2
5
10
20
C4963C
C4973C
C4983C
C4993C
Capacitor
C4923B
C4933B
C4943B
C4953B
C4963B
C4973B
C4983B
C4993B
