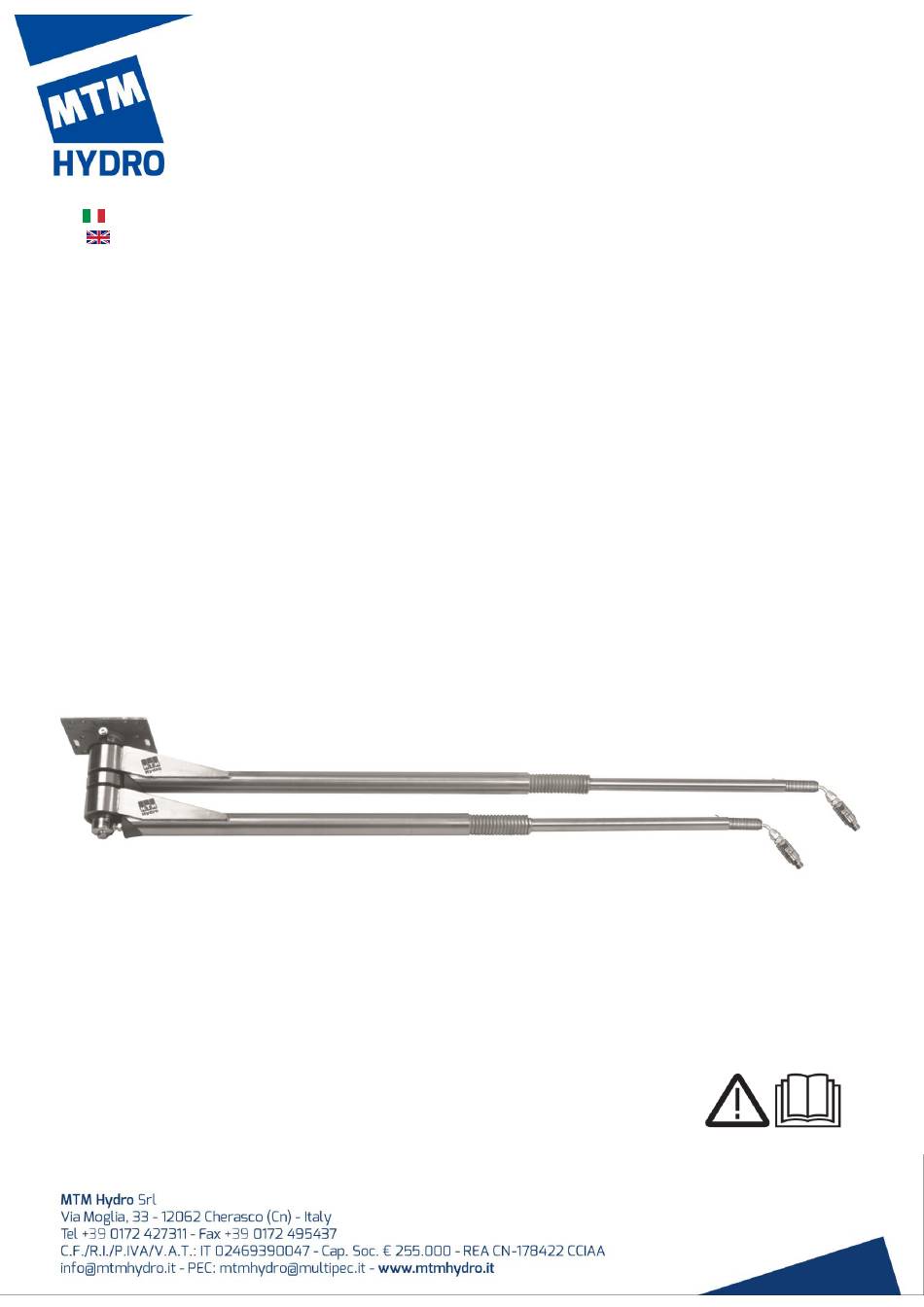

- Page 1 - ISTRUZIONI D’USO - INSTRUCTION MANUAL BRACCIO DOPPIO GIREVOLE INOX S.STEEL DOUBLE ROTATING BOOM FLESSIBILE A DUE MOLLE CON TUBO IN GOMMA - ATTACCO A SOFFITTO FLEXIBLE WITH 2 SPRINGS AND RUBBER HOSE - CEILING HANG MUM030_10 06/21 0535149808...
- Page 2 Outlets (Mpa - psi) (l/min - US/gpm) (°C - °F)* (mm - inches) 1/4” F 1/4” M 1600+1750 – 63+69 1221000107 21 - 3,100 30 - 8 120 - 250 1/4” F 1/4” M 1750+2000 – 69+79 1221000207 21 - 3,100...
-
Page 3: Installazione
Use fresh clear water, with common detergents; comunemente utilizzati nei car wash; MTM Hydro does not manufacture or supply any of the MTM Hydro non produce o fornisce prodotti chimici per car chemicals used with our product and is not responsible for their wash e non è... - Page 4 The component described here complies with the rules and the I componenti decritti in questa Istruzione sono conformi alle lines in force that you can find in the MTM Hydro’s norme ed alle leggi vigenti come dichiarato sulla Dichiarazione CONFORMITY DECLARATION.
- Page 5 Corpo girevole per giunto a 90° 0255256005 90° swivel body Tubo in gomma braccio 1750mm (per codici 1221000107 e 1221000108) 30.0009 Rubber hose for 69” (on part #1221000107 and 1221000108) Tubo in gomma braccio 2000mm (per codici 1221000207 e 1221000208) 30.0010...
- Page 6 POSIZIONE DELLE GUARNIZIONI GIUNTO INTERMEDIO SEALS POSITION ON MIDDLE SWIVEL O-RING 46x2 NBR 70Sh O-RING 46x2 NBR 70Sh Cod. 39.0136 Cod. 39.0136 BK 46,8x50x1,3 Cod. 39.0061...
