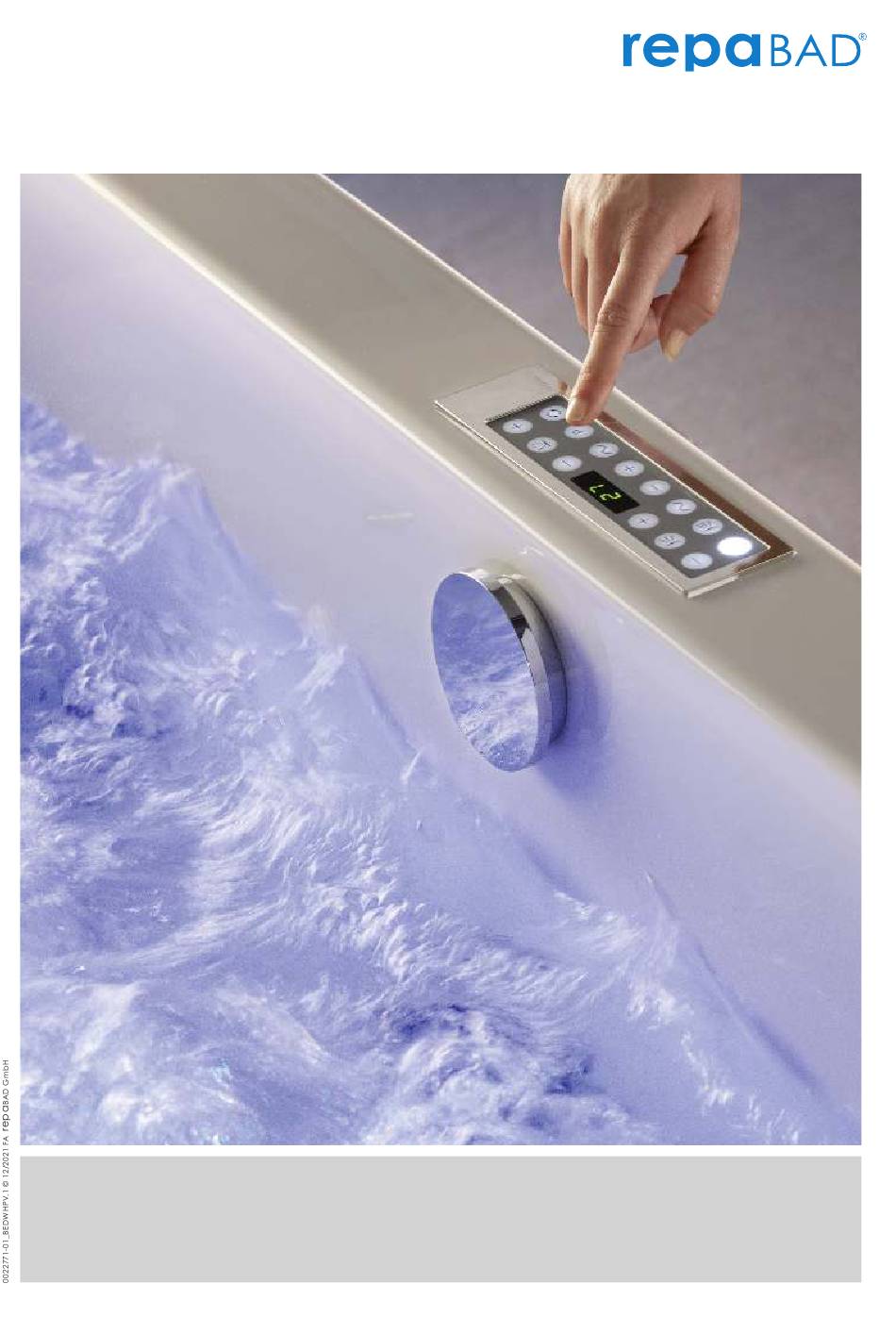

OPERATING INSTRUCTIONS
for whirlpools – electronic Vision series
Please be sure to read the operating instructions carefully before using the whirlpool!
Make sure that you observe the care instructions!
Repabad cannot be held liable for damages caused by inappropriate use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vision Series and is the answer not in the manual?

Questions and answers

Related Manuals for repabad Vision Series

Summary of Contents for repabad Vision Series

  • Page 1 OPERATING INSTRUCTIONS for whirlpools – electronic Vision series Please be sure to read the operating instructions carefully before using the whirlpool! Make sure that you observe the care instructions! Repabad cannot be held liable for damages caused by inappropriate use.
  • Page 2 Introduction CONGRATULATIONS! ou have chosen an innovative, premium product from Repabad. Our products combine impressive technology with ease of use. Please read these operating instructions carefully, so that you can best use the whirlpool to improve your well-being and enjoy the product for many years to come.

  • Page 3: Table Of Contents

    Table of contents 01 SAFETY INFORMATION 02 WELLNESS TIPS 03 WHIRLPOOL DESIGNS 04 OPERATION WITH THE CONTROL PANEL Vision 500 Vision 700 Vision 1000 “Night design” control panel illumination 05 BEFORE USE 06 DURING USE Operation with Vision 500 control panel Operation with Vision 700 control panel Operation with Vision 1000 control panel Whirlpool programmes (Vision 1000 only)

  • Page 4: Safety Information

    Depending on the frequency of use, you should disinfect the whirlpool roughly every 4 weeks. Only use Repabad disinfectant (art. no. 0002511). If other bath agents are used, you run the risk of damaging the whirlpool. repa 0022771-01_BEDWHPV.1 12/2021 •...

  • Page 5: Wellness Tips

    03 WHIRLPOOL DESIGNS Repabad whirlpools can be equipped with four different whirlpool systems: Air system (Vision 500) The whirlpool with an air system is equipped with a fixed fan installed under the bathtub.

  • Page 6: Operation With The Control Panel

    Operation 04 OPERATION WITH THE CONTROL PANEL Three different control elements and electronic controllers are available for the whirlpool systems. Vision 500 The whirlpool is operated using the Vision 500 control panel. The control panel is used to switch the fan on and off. It is infinitely adjustable. If whirlpool lighting (a special accessory) is fitted, you can switch it on or off.

  • Page 7: Before Use

    Operation 05 BEFORE USE Rinse out the whirlpool with cold water. Close the bathtub drain. Fill the whirlpool with hot water. Important: Since the piping system must be partially filled with water before the bathtub can be filled, it takes some time for the water to visibly collect in the tub. To enable the use of all functions, fill the whirlpool up to around the overflow with the user(s) inside.
  • Page 8 Operation Increases the intensity of the air massage (if the air massage is on). The key illuminates if pressed and flashes when the maximum value is reached. Reduces the intensity of the air massage (if the air massage is on). The key illuminates if pressed and flashes when the minimum value is reached.

  • Page 9: Operation With Vision 700 Control Panel

    Operation Operation with the Vision 700 control panel key flashes, irrespective of which key is pressed. The keylock is activated when the All functions are blocked (please refer to the following page). If a function is selected by pressing a key, this key is illuminated as long as the function is active. The corresponding keys are also illuminated for functions that are selected by the massage pro- gramme.
  • Page 10 Operation Turns the aeration on or off. Adding air increases the intensity of the massage. If the jet massage is off, activating the aeration also turns on the jet massage (only when the tub is full). Switches whirlpool programme P1 Soft or P2 Power on (only if the bathtub is full); pro- gramme duration approx.

  • Page 11: Operation With Vision 1000 Control Panel

    Operation Operation with the Vision 1000 control panel Jet massage Display Air massage Whirlpool light- Temperature setting Programme Fresh water rinsing/ selection disinfection The keylock is activated when the display shows , irrespective of which key is pressed. All func- tions are blocked (please refer to page 13).
  • Page 12 Operation Air massage Turns the air massage on or off when output is set to medium (even when the tub is empty). A few minutes after the bath, when the bath water has drained off, the key flashes until the blow-out and fresh water rinsing (special accessories) automatic pro- grammes are completed.
  • Page 13 Operation Further functions Opens the massage programs. When first pressed, the P1 Vital programme. Keep pressing to cycle through the programmes (P2, P3, P4, etc.). The programme selected is started automatically if you do not press again for approx. 3 seconds. The respective programme number is shown on the display.
  • Page 14 Operation Automatic filling (Vision 1000 only) If the bathtub is empty, start automatic filling by pressing the key. key pressed for at least 2 seconds. Automatic filling starts and the Keep the key is illuminated. key again to stop automatic filling. Press the During filling, the following appears in the display: Automatic filling running...

  • Page 15: Whirlpool Programmes (Vision 1000 Only)

    Operation Whirlpool programmes (Vision 1000 only) All programmes have a running time of 15 minutes. After this, the whirlpool switches off automatically. The remaining running time is shown on the display in minutes. Use the key to interrupt the course of the programme at any time. You can choose from six programmes: P1 Vital Medium-intensity jet massage which transitions to an air massage.

  • Page 16: After Use

    You must not bathe in the whirlpool whilst it is being disinfected! Depending on the frequency of use, you should disinfect the whirlpool roughly every 4 weeks. Only use Repabad disinfectant (art. no. 0002511). If other bath agents are used, you run the risk of damaging the whirlpool.
  • Page 17 Usage / Disinfection Manual disinfection (Vision 700 or Vision 1000 control panel without an automatic disinfection system and Vision 500) Make sure the bath is filled up to at least 5 cm above the jet or micro jet nozzles before disinfection! Add the disinfectant to the water after bathing: Use approx.
  • Page 18 Disinfection Using the Vision 1000 control panel (with flashing dot) appears on the display. Press and hold the key (approx. 5 seconds) until key is illuminated at the same time. After 5 seconds, the display switches to together with the running time of the disinfection process.

  • Page 19: Care Instructions

    After bathing, clean the bathtub with a household cleaning agent. Clean the acrylic parts at regular intervals with anti-static Repabad “Special cleaner” acrylic and plexiglass cleaner (art. no. 0010276). To deal with minor scratches, use Repabad’s “Acrylic care set” (art. no. 0007135).

  • Page 20: Servicing

    Unscrew the cover on the filling opening on the rim of the bathtub. Pour in one bottle (1 litre) of Repabad disinfectant (art. no. 0002511) using a funnel. Close the filling opening cover again tightly.

  • Page 21: Nozzle Function And Structure

    Nozzles 11 NOZZLE FUNCTION AND STRUCTURE Air nozzles To enable cleaning, unscrew the air nozzle inserts using the special key (art. no. 0035112): To remove the inserts (1), lightly press the rubberised side of the key (2) against the insert, and unscrew in an anti-clockwise direction.

  • Page 22: Cleaning The Drain Filter, Adjusting The Drain Plug

    Servicing / nozzles Jet nozzles / Micro jet nozzles Swivel the jet nozzles to change the jet direction. The jet nozzles inserts can be removed for cleaning: Position 1: Einstecken des Schlüssels Remove the jet nozzle (4) and plastic insert (5) with the special key (6) (jet nozzle art.

  • Page 23: Technical Data

    Technical data 13 TECHNICAL DATA Connection Via separately connected electricity supply with separate 2-pin residual current circuit breaker I Δ N ≤ 30 mA (overvoltage category III) Supply voltage 230 V AC, 50 Hz Fuse without supplementary heating 16 A-B for 3 x 1.5 mm² supply line Fuse with supplementary heating 2 x 16 A-B for 2 supply lines, each with 3 x 1.5 mm²...

  • Page 24: How To Enjoy The Whirlpool

    Bathing tips / aromatherapy 14 HOW TO ENJOY THE WHIRLPOOL Immerse yourself in pleasantly hot water. Air bubbles burst on your skin, your weightless body is carried by the water. The individually adjustable massage relaxes your muscles, relieving tension. It stimulates the metabolism, has a positive effect on the vegetative nervous system, the brain releases “happy hormones”...

  • Page 25: Aromatherapy

    Aromatherapeutic bath additives Bath additives from Repabad are ideally suited for use in whirlpools as they only froth a little and leave no deposits in the system. Their proportions of essential oils make them ideal care for the body and soothing to the soul.

  • Page 26: Effects Of The Bath Additives

    Bathing tips / aromatherapy Effects of the bath additives The effects mentioned should only be viewed as examples, as the aromas have different effects on different people. REPABAD COMPLAINTS TEMPERATURE WHIRL TIME SPECIALITIES BATH ADDITIVES * Boosting the 28°C or Eucalyptus, 7 min.

  • Page 28: Warranty Card

    This warranty begins on the day of delivery by Repabad. Any potential claim must be notified to the specialist fitter from whom our product was purchased, specifying the data provided below.

This manual is also suitable for:

Vision 500Vision 700Vision 1000
