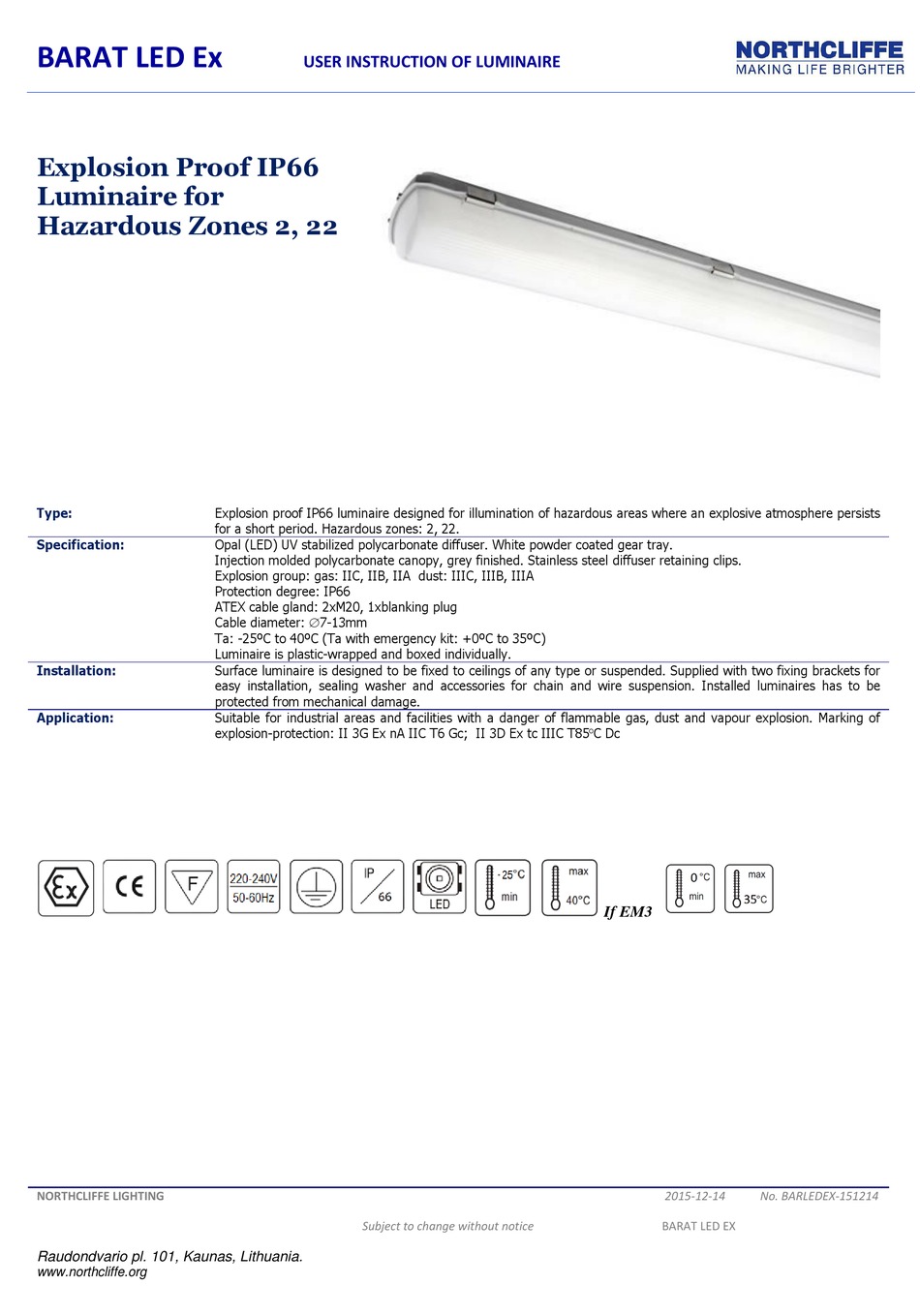

USER INSTRUCTION OF LUMINAIRE
Explosion proof IP66 luminaire designed for illumination of hazardous areas where an explosive atmosphere persists
for a short period. Hazardous zones: 2, 22.
Opal (LED) UV stabilized polycarbonate diffuser. White powder coated gear tray.
Injection molded polycarbonate canopy, grey finished. Stainless steel diffuser retaining clips.
Explosion group: gas: IIC, IIB, IIA dust: IIIC, IIIB, IIIA
Protection degree: IP66
ATEX cable gland: 2xM20, 1xblanking plug
Cable diameter: 7-13mm
Ta: -25ºC to 40ºC (Ta with emergency kit: +0ºC to 35ºC)
Luminaire is plastic-wrapped and boxed individually.
Surface luminaire is designed to be fixed to ceilings of any type or suspended. Supplied with two fixing brackets for
easy installation, sealing washer and accessories for chain and wire suspension. Installed luminaires has to be
protected from mechanical damage.
Suitable for industrial areas and facilities with a danger of flammable gas, dust and vapour explosion. Marking of
explosion-protection: II 3G Ex nA IIC T6 Gc; II 3D Ex tc IIIC T85
Subject to change without notice
o
C Dc
If EM3
2015-12-14
No. BARLEDEX-151214
BARAT LED EX
