- Insert 3 x AAA batteries supplied (see below).
- Set time and day on remote control (see below).
- Press ON/OFF button to turn the remote control on.
- Increase temperature setting by pressing the UP arrow button.
- The heater can be operated from either the remote control or
the controls on the heater front panel.
With the remote control turned off, press and
hold the SET button for 3 seconds.
Press the UP or DOWN arrow button to
adjust to the current time - ensure that
AM/PM is correct.
Press the SET button when the time is
correct.
Press the UP or DOWN arrow button to
adjust to the current day.
Press the SET button when the day is correct
to return to normal operation.
Remove the battery door from
the back of the remote control by
pushing the top of the battery
door and sliding down.
Fit the 3 AAA batteries supplied.
Ensure the battery orientation is
as shown.
THESE INSTRUCTIONS MUST BE READ IN CONJUNCTION WITH THE
USER INSTRUCTIONS SUPPLIED WITH THE SPACE HEATER.

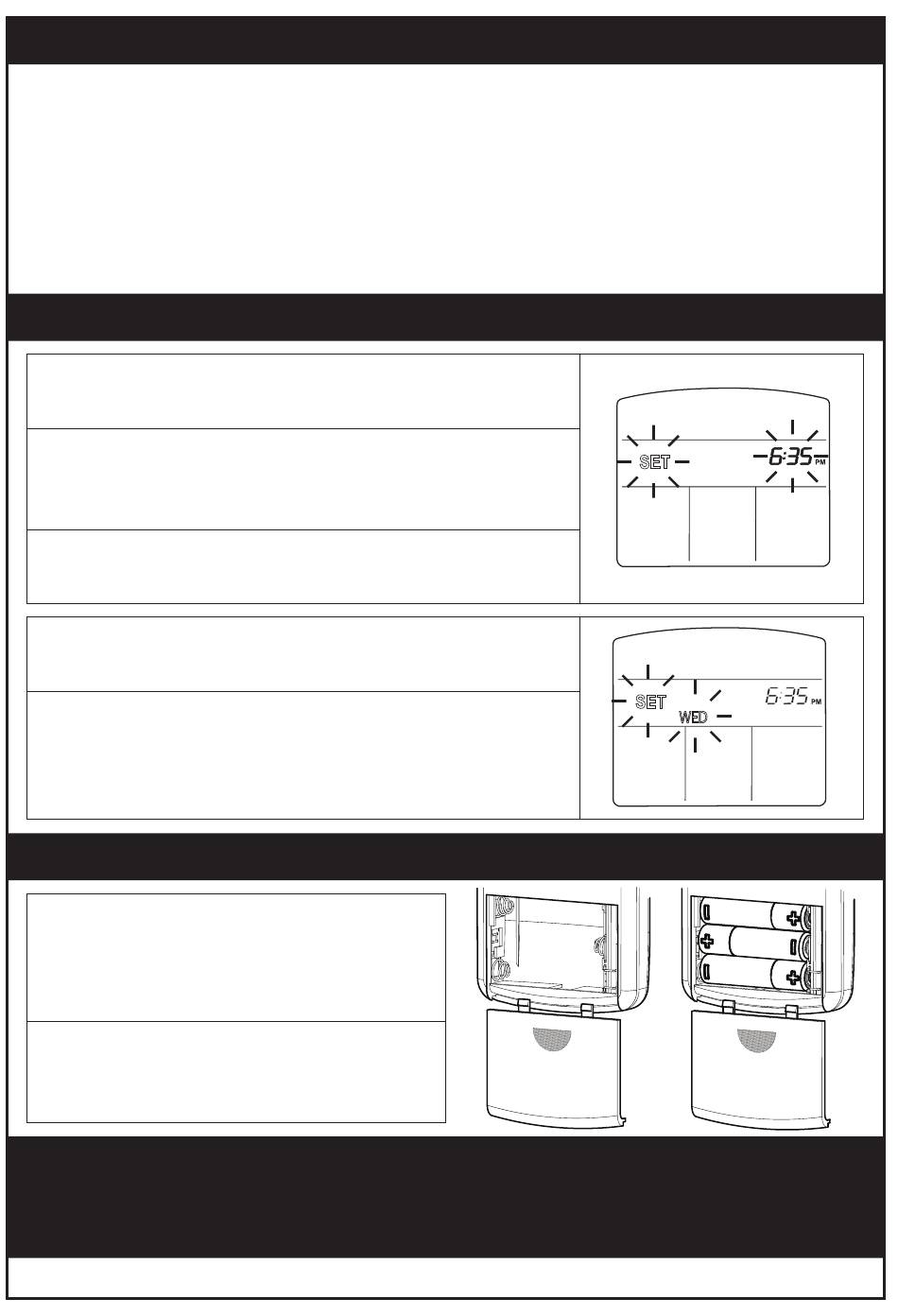

Quick start
Setting the time and day
Fitting the batteries
Important
Page 1
SET
WED
SET
WED
Advertisement
Table of Contents
Summary of Contents for Braemar ECOSTAR
- Page 1 Quick start - Insert 3 x AAA batteries supplied (see below). - Set time and day on remote control (see below). - Press ON/OFF button to turn the remote control on. - Increase temperature setting by pressing the UP arrow button. - The heater can be operated from either the remote control or the controls on the heater front panel.
-
Page 2: Manual Mode Operation
MANUAL mode operation When operating in MANUAL mode the heater will turn on and off to maintain the set temperature until turned off by the user. Turning the Press the ON/OFF button. If the room temperature is heater ON less than the set temperature the heater will start. The display will flash ON and WAIT during the start-up sequence - the flame and fan symbols will appear once the burners ignite and the room fan starts. -
Page 3: Auto Mode Operation
AUTO mode operation When operating in AUTO mode the heater will automatically turn on and off to maintain the programmed temperature. It will also automatically advance through the 4 time periods (WAKE, AWAY, HOME and SLEEP) each day and adjust the set temperature to the pre-programmed temperature for each time period. - Page 4 Setting the AUTO program Default program settings: The table below shows the factory defult program settings. The heater will operate with these settings in AUTO mode if you do not change the settings. If you change the settings, record them in the table below for future reference.
- Page 5 Setting the AUTO program 3. Select time and temperature for each time period 3.1 Press UP or DOWN arrow button to adjust time to required start time for WAKE period. In this example, the start time for the WAKE time period has been adjusted to 6.30 am. WAKE 3.2 Press SET button to lock in time.
-
Page 6: Fault Messages
Fault messages Your Braemar Ecostar Space Heater uses inbuilt fault diagnosis software to help determine the source of a fault. If the heater detects a fault the heater will turn off and the remote control will flash RESET and a fault code (FC). The control panel indicators on the front of the heater will also flash to indicate the fault code. -
Page 7: Remote Control Button Functions
Remote control button functions DOOR CLOSED ON/OFF UP ARROW Press to turn heater on Press to increase AUTO or off. temperature set point, or HEAT to increase setting in HOME program setting mode. HOME/AWAY In AUTO mode, press to switch between current DOWN ARROW and next time period. -
Page 8: Display Features
Display features AUTO HEAT WAIT RESET MON TUE WED THU HOME AWAY WAKE SLEEP - Burners are alight: - Inner flame flashing - low gas rate. - Outer flame flashing - high gas rate. - Temperature: - Displays approximate current temperature. - Temporarily displays set temperature when the up or down arrow is pressed, reverts back to current temperature after 5 seconds. - Page 9 Display features RESET - When RESET is flashing, it will be accompanied by a number in the time display, and flashing LED's on the control panel on the front of the heater. Take note of the number and press the RESET button until RESET disappears.
- Page 10 BRAEMAR ECOSTAR GAS SPACE HEATER OPERATING INSTRUCTIONS FOR REMOTE CONTROL AUTO HEAT HOME ON/OFF HOME/AWAY...
