Summary of Contents for Fawssit T4000 Tall Series
-
Page 2: Table Of Contents

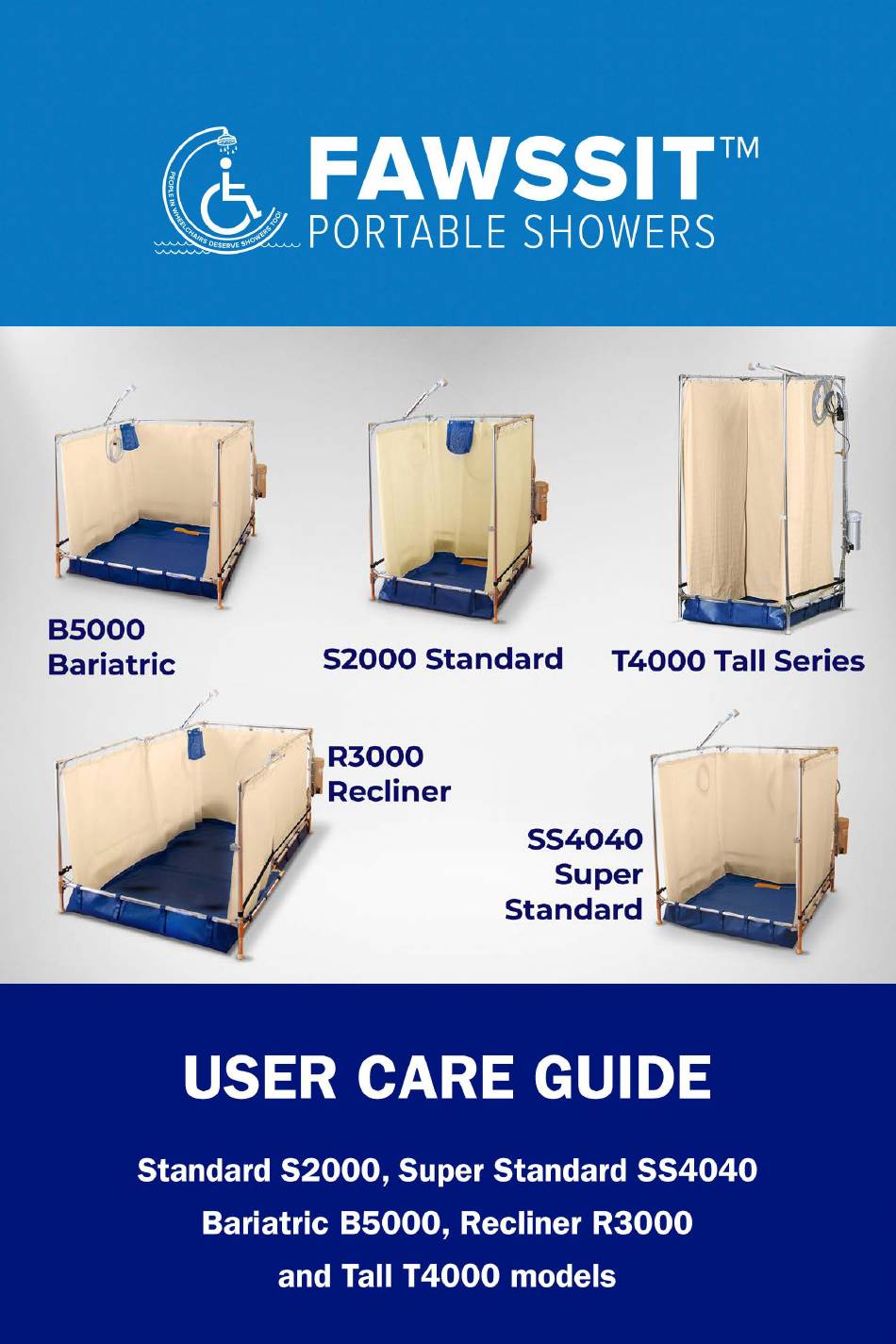

Thank you for buying our product. To ensure you enjoy years of trouble-free operation, we developed this User Care Guide for your FAWSsit™ Fold Away Wheelchair Shower. It contains valuable information about how to operate and maintain your portable wheelchair shower properly and safely. Please read it carefully. -
Page 3: Shower Safety
S2000, SS4040, B5000, and T4000 Your FAWSsit™ portable wheelchair shower comes packaged fully assembled and ready for use. No tools are required. Your FAWSsit™ portable shower sets up in less than 5 minutes and weighs less than 30 pounds. The best location may be the kitchen of your home or in an area where both hot and cold water resources are available as well as a drain for removing the waste water. - Page 4 Operating Instructions & Setup continued Pull the right shower wall toward you until it opens to a 90 degree angle (Fig.4) Do the same with the left shower wall until it opens to a 90 degree angle as well (Fig.5). Your portable wheelchair shower should now be set up in a horseshoe configuration with the dark blue shower pan facing you.
- Page 5 – For attaching the shower sprayer to the sink faucet, see Page 9, “Faucet Aerator Installation and Use.” Your FAWSsit™ portable shower’s water pump is attached to Fig. 9 the rear wall on the right side of your shower approximately 26 inches off the ground.
- Page 6 Operating Instructions & Setup continued The water pump has two drain hoses connected to it. The bottom hose going to the collection pan removes the bath water. The blue drainage nozzle (Fig. 11) should be placed inside the mesh pocket located at the back of the blue shower pan to hold it in place for suctioning the water from the pan (Fig.
-
Page 7: For Model R3000
Model R3000 Your FAWSsit™ portable wheelchair shower comes packaged fully assembled and ready for use. No tools are required. Your FAWSsit™ Recliner Shower sets up in less than 10 minutes and weighs less than 40 pounds. The best location may be the kitchen of your home or in an area where both hot and cold water resources are available as well as a drain for removing the waste water. - Page 8 There is an quick connect shower hose with a flow control shower head available for the FAWSsit™ portable showers (Fig. 9). This shower hose has a snap-on attachment for the sink faucet, our standard 15 foot long hose, and a shower head which has a blue adjustment lever which allows for water to be turned on or off at the shower head as well as at the faucet.
- Page 9 Operating Instructions & Setup continued Your FAWSsit™ portable shower’s water pump is attached to the rear wall on the right side of your shower approximately 12 inches off the ground. The spun aluminum cap with off/on switch for your water pump is located on the top side of your water pump.
-
Page 10: Using The Additional Drainage Nozzle System Supplied With R3000 Recliner Shower
Using the additional drainage nozzle system supplied with R3000 recliner shower To ease the process of cleaning the R3000, an additional connected suction nozzle is provided to help with residual water clean up. To enable secondary (clean up) nozzle you must first switch the valve on the pump from primary to secondary nozzle. -
Page 11: Faucet Aerator Installation And Use
Faucet Aerator Installation And Use One Time Installation: 1. Remove your faucet’s aerator from spout (A). 2. If spout is threaded on the outside, place thinner washer only (B) inside enclosed aerator. If spout is threaded on the inside, place thicker washer only (C) inside enclosed aerator. -
Page 12: Location
Tools Required • None Accessory Bag • The blue mesh utility bag can be used to hold other personal hygiene products, such as shampoo or soap. (Fig. 15) Fig. 15 Return Policy For the latest return policy, please visit: https://shop.fawssit.com/legal/#returns... -
Page 13: Ordering Replacement Parts
- offering bariatric, tilting or lightweight options. Visit shop.fawssit.com Ordering Replacement Parts You may order the following replacement parts for your FAWSsit™ portable shower by calling Care Giver Support Products, LLC at 1-877-329-7748 or by ordering from fawssit web site: shop.fawssit.com. •... -
Page 14: Warranty
Warranties apply from the date of the original invoice, whether or not repairs or replacements are or were provided during the warranty period. For the latest warranty policy, please visit: https://shop.fawssit.com/legal/#warranty Routine Care and Maintenance After each use: • Remove solid materials and soap scum from the pan. -
Page 15: Rinsing, Breakdown And Storage Of Fawssit™ Models S2000, Ss4040, B5000, And T4000
Remove any water that may remain in the bottom of the blue collection pan with a soft cloth towel or a sponge. Once the FAWSsit™ shower is rinsed and dried completely, you’re ready to reverse the setup process: (Fig. 7, 6, 5, 4, 3) •... -
Page 16: Model R3000
Remove any water that may remain in the bottom of the blue collection pan with a soft cloth towel or a sponge. Once the FAWSsit™ shower is rinsed and dried completely, you’re ready to reverse the setup process: (Fig. 7, 6, 5, 4, 3) •... -
Page 17: Troubleshooting
For your storage information, this shower weighs approximately 40 pounds. If the shower is to be stored in sub-freezing temperatures, ensure that all water has been removed prior to storage. Fig. 7 Fig. 6 Fig. 5 Fig. 4 Fig. 3 Troubleshooting If the shower unit will not operate: Check to see if power supply cord is unplugged. -
Page 18: Product Specifications
• Dimensions when folded: 36” wide × 12”deep × 36” tall All FAWSsit™ portable showers have an attached waste water pump which is designed to run wet or dry and can remove approximately 3 gallons of water per minute while running. This pump has been tested by Underwriter Laboratories for safety. -
Page 19: Online Registration Information
- the feedback you provide enables us to continuously improve our showers. If you no longer have the registration card, you can still register your FAWSSIT™ portable shower by visiting https://www.cgsp.net/product-registration/ scannig the QR code here. - Page 20 9/2021...
