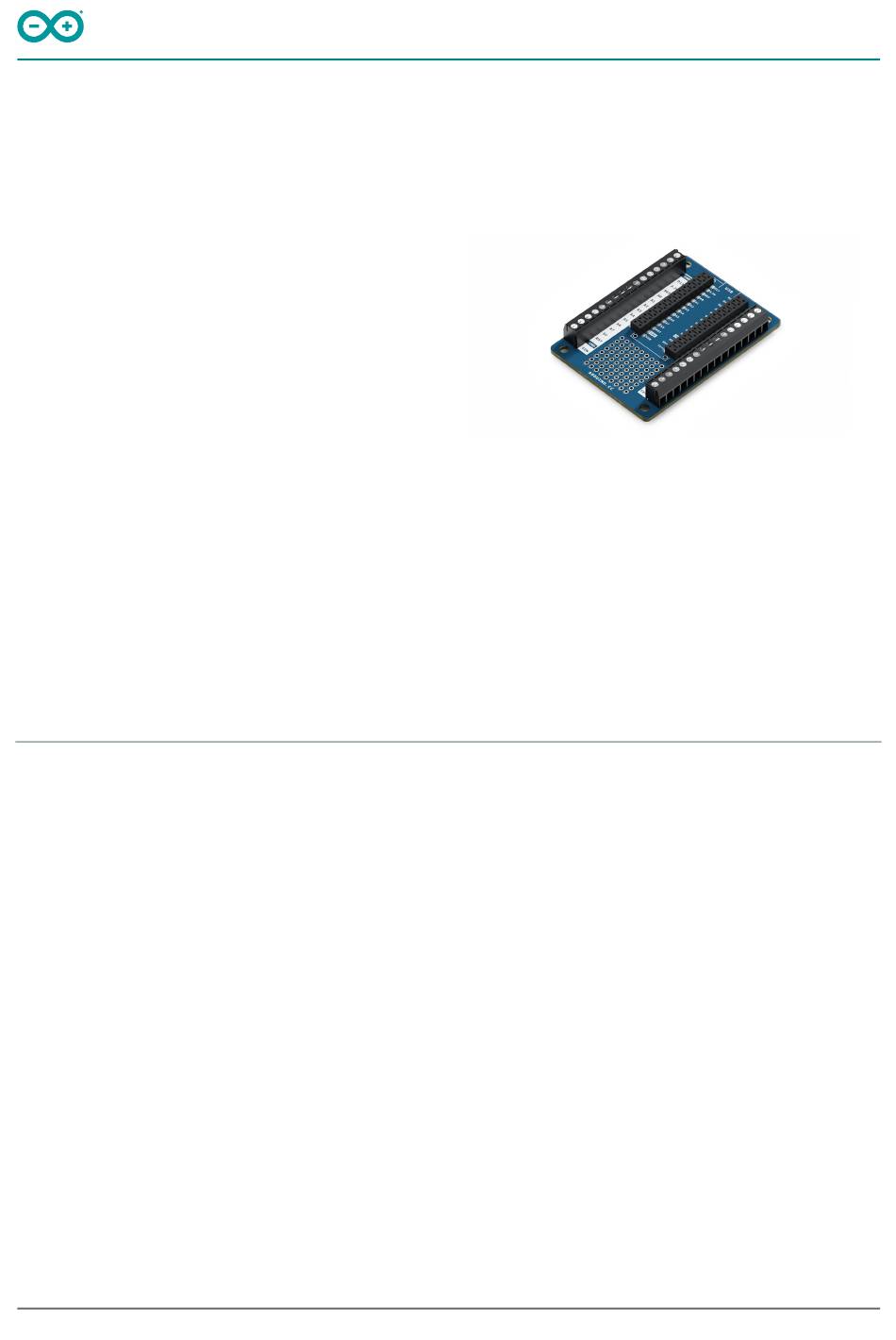

Arduino® Nano Screw Terminal Adapter
Product Reference Manual
SKU: ASX00037_ASX00037-3P
Description
Arduino® Nano Screw Terminal Adapter is a quick, secure and solderless solution for your next Nano project.
Easily connect external connections to the screw terminals and use the onboard prototyping area to evaluate ideas
and solutions. Easily switch between the various Nano family boards without soldering, while leaving the rest of
your project intact.
Target areas:
Maker, Nano projects, Prototyping,
1 / 10
Arduino® Nano Screw Terminal Adapter
Modified: 29/09/2022
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Arduino ASX00037
- Page 1 SKU: ASX00037_ASX00037-3P Description Arduino® Nano Screw Terminal Adapter is a quick, secure and solderless solution for your next Nano project. Easily connect external connections to the screw terminals and use the onboard prototyping area to evaluate ideas and solutions. Easily switch between the various Nano family boards without soldering, while leaving the rest of your project intact.
- Page 2 Arduino® Nano Screw Terminal Adapter Features Screw connectors 30 screw connectors exposing all I/O pins from your Nano board 2 screw connectors providing additional ground connections Silk is labelled for quick and easy reference Through hole 9x8 through hole prototyping area Nano socket Low profile connector for high mechanical stability...
-
Page 3: Table Of Contents
Arduino® Nano Screw Terminal Adapter CONTENTS 1 The Adapter 1.1 Compatible boards 1.2 Application Examples 2 Functional Overview 2.1 Board Topology 2.1.1 Top 2.1.2 Bottom 2.2 Headers 3 Mechanical Information 3.1 Board Outline and Mounting Holes 4 Certifications 4.1 Declaration of Conformity CE DoC (EU) 4.2 Declaration of Conformity to EU RoHS &... -
Page 4: The Adapter
1 The Adapter As it turned out that Arduino users have a need of a quick and easy way to securely build projects as well as adding small circuits for extra control, the Nano Screw Terminal Adapter was developed to assist in building such robust projects, without the need of soldering. -
Page 5: Functional Overview
Arduino® Nano Screw Terminal Adapter 2 Functional Overview 2.1 Board Topology 2.1.1 Top Board topology Top Ref. Description Ref. Description HLE-115-02-F-DV-Footprint-2 HLE-115-02-F-DV-Footprint-2 CONNECTOR MORS.CS16v CONNECTOR MORS.CS 16v 2.1.2 Bottom Board topology bottom 5 / 10 Arduino® Nano Screw Terminal Adapter... -
Page 6: Headers
Arduino® Nano Screw Terminal Adapter 2.2 Headers The board exposes two 15 pin connectors which can either be assembled with pin headers or soldered through castellated vias. Connector J17 Pin Function Type Description D13/SCK Digital GPIO +3V3 Power Out AREF Analog Analog Reference;... -
Page 7: Mechanical Information
Arduino® Nano Screw Terminal Adapter 3 Mechanical Information 3.1 Board Outline and Mounting Holes R2mm Ø3mm 63mm 70mm Board layout 4 Certifications 4.1 Declaration of Conformity CE DoC (EU) We declare under our sole responsibility that the products above are in conformity with the essential requirements of the following EU Directives and therefore qualify for free movement within markets comprising the European Union (EU) and European Economic Area (EEA). -
Page 8: Declaration Of Conformity To Eu Rohs & Reach 211 01/19/2021
ECHA (European Chemical Agency) 1907 /2006/EC. 4.3 Conflict Minerals Declaration As a global supplier of electronic and electrical components, Arduino is aware of our obligations with regards to laws and regulations regarding Conflict Minerals, specifically the Dodd-Frank Wall Street Reform and Consumer Protection Act, Section 1502. -
Page 9: Fcc Caution
Important: The operating temperature of the EUT can’t exceed 85℃ and shouldn’t be lower than -40℃. Hereby, Arduino S.r.l. declares that this product is in compliance with essential requirements and other relevant provisions of Directive 2014/53/EU. This product is allowed to be used in all EU member states. -
Page 10: Company Information
Arduino® Nano Screw Terminal Adapter 6 Company Information Company name Arduino S.r.l Company Address Via Andrea Appiani 25 20900 MONZA Italy 7 Revision History Date Revision Changes 17/06/2022 First release 10 / 10 Arduino® Nano Screw Terminal Adapter Modified: 29/09/2022...
