SD-2020 Smart Tracking Installation Guide
1. Enable the Smart Tracking Function
Before using the Smart Tracking function, you need to install the Smart Key first.
*Please contact to your dealer for further information.

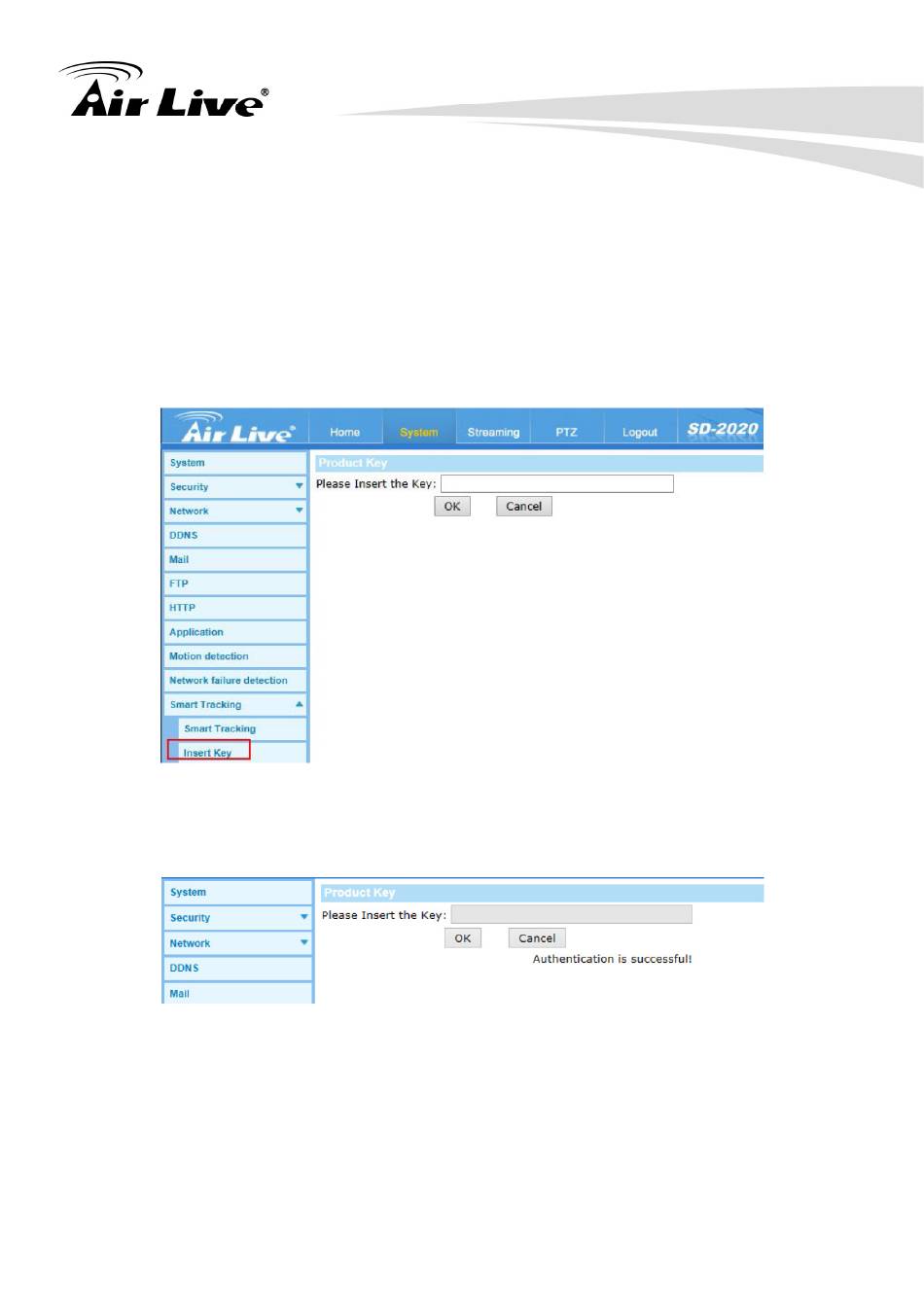

Please go to System->Smart Tracking->Insert Key.
Key in the Product Key and you will see the message "Authentication is successful"
after finished.
2. Turn on the Smart Tracking Function
Select "On" and press "save" to turn on the function first.
Advertisement
Table of Contents
Related Manuals for Air Live SD-2020
Summary of Contents for Air Live SD-2020
- Page 1 SD-2020 Smart Tracking Installation Guide 1. Enable the Smart Tracking Function Before using the Smart Tracking function, you need to install the Smart Key first. *Please contact to your dealer for further information. Please go to System->Smart Tracking->Insert Key. Key in the Product Key and you will see the message "Authentication is successful"...
- Page 2 3. Setup the MAX Limit. *You can choose not to set the limit. Setup the boundaries of the tracking area. - Tilt up Limit 1). Check the Enable tilt limit. 2). Drag up the red arrow to the position you want. 3).
- Page 3 - Tilt down Limit 1). Check the Enable tilt limit. 2). Drag down the red arrow to the position you want. 3). Press "Get D Tilt" and get the tilt-down value. - Pan Left Limit 1). Check the Enable pan limit. 2).
- Page 4 - Pan Right Limit 1). Check the Enable pan limit. 2). Drag right the red arrow to the position you want. 3). Press "Get R Pan" and get the pan-right value. 4. Setup the Detection Range. Setup the detection range by three different levels (S/M/L).
- Page 5 5. Set the time to back to home position. *You can choose to turn off. SD-2020 will go back to home position in specific seconds no matter what the position it is on or during the tracking procedure. 1). Select "On".
