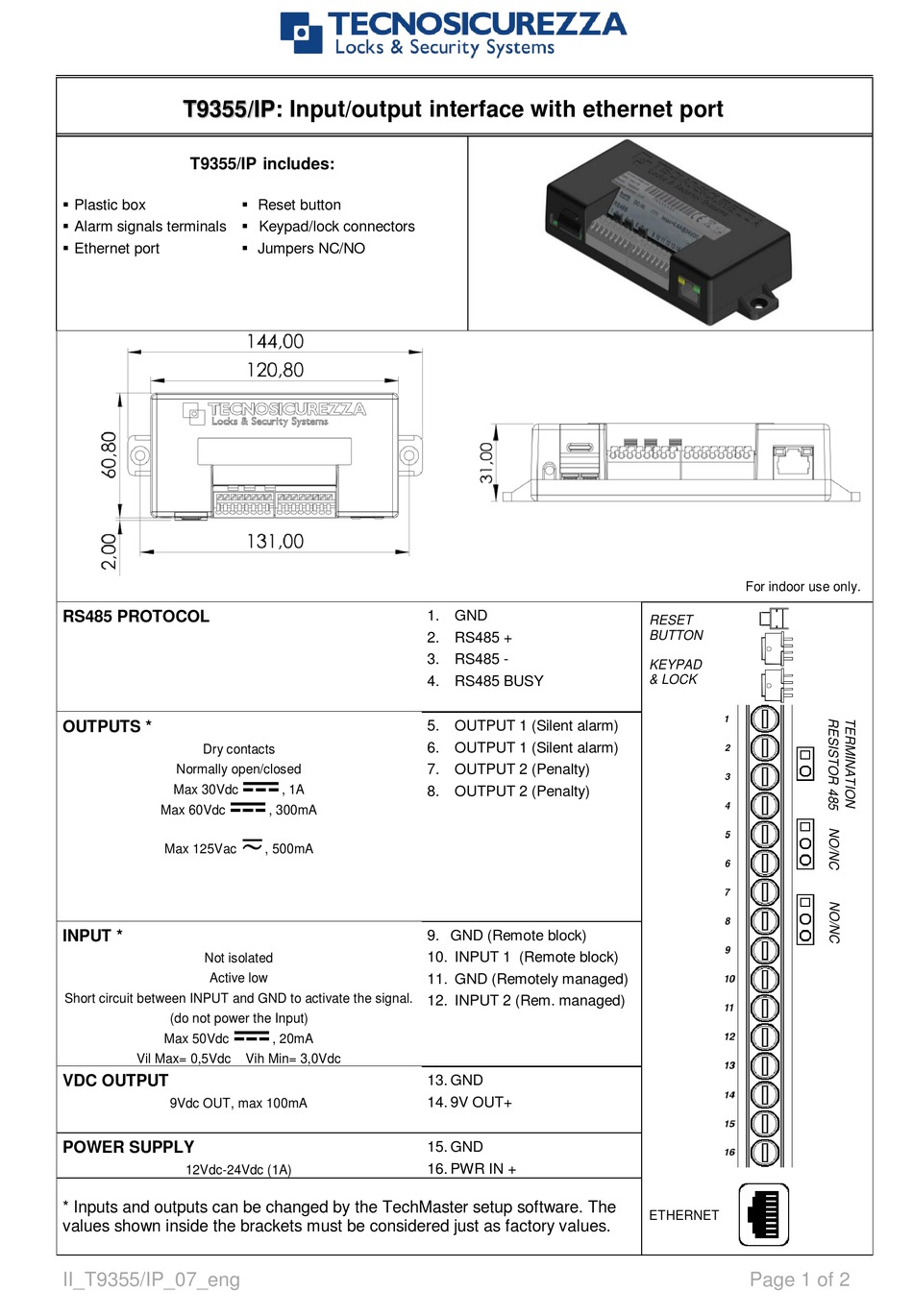

Tecnosicurezza T9355/IP Quick Start Manual

T9355/IP: Input/output interface with ethernet port
T9355/IP includes:
 Plastic box
 Alarm signals terminals
 Ethernet port
RS485 PROTOCOL
OUTPUTS *
Dry contacts
Normally open/closed
Max 30Vdc
Max 60Vdc
Max 125Vac
INPUT *
Not isolated
Active low
Short circuit between INPUT and GND to activate the signal.
(do not power the Input)
Max 50Vdc
Vil Max= 0,5Vdc
VDC OUTPUT
9Vdc OUT, max 100mA
POWER SUPPLY
12Vdc-24Vdc (1A)
* Inputs and outputs can be changed by the TechMaster setup software. The
values shown inside the brackets must be considered just as factory values.
II_T9355/IP_07_eng
 Reset button
 Keypad/lock connectors
 Jumpers NC/NO
, 1A
, 300mA
≂
, 500mA
, 20mA
Vih Min= 3,0Vdc
1. GND
2. RS485 +
3. RS485 -
4. RS485 BUSY
5. OUTPUT 1 (Silent alarm)
6. OUTPUT 1 (Silent alarm)
7. OUTPUT 2 (Penalty)
8. OUTPUT 2 (Penalty)
9. GND (Remote block)
10. INPUT 1 (Remote block)
11. GND (Remotely managed)
12. INPUT 2 (Rem. managed)
13. GND
14. 9V OUT+
15. GND
16. PWR IN +
For indoor use only.
RESET
BUTTON
KEYPAD
& LOCK
ETHERNET
