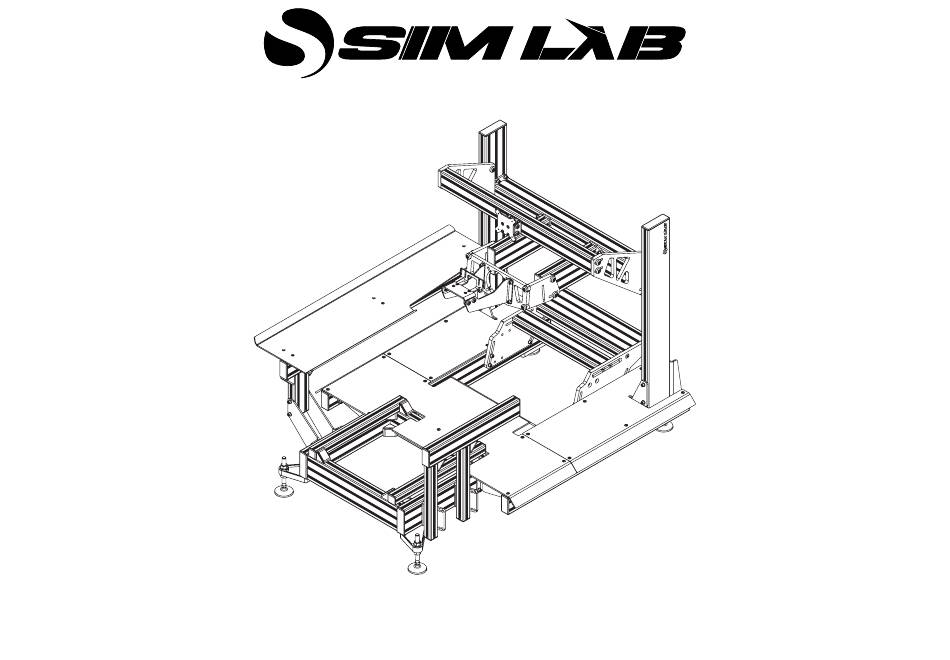

INSTRUCTION MANUAL
X1
VERSION 1.0
Last updated: 14-09-2022

Advertisement

loading
Need help?

Need help?

Do you have a question about the X1 and is the answer not in the manual?

Questions and answers

Related Manuals for SimLab X1

Summary of Contents for SimLab X1

  • Page 1 INSTRUCTION MANUAL VERSION 1.0 Last updated: 14-09-2022...

  • Page 2: Before You Start

    Especially when turning over the base and fitting the uprights, an extra pair of hands really does come in handy. For current P1-X users who purchased an X1 upgrade kit, please skip to Page 13. Remove the P1-X uprights and possibly the side mount, and you can follow along with this manual.
  • Page 3 1350MM Slot-Nut M8 A10/C6 4X/4X BUILD 2X 3 48...
  • Page 4 500MM Slot-Nut M8 BUILD 2X 4 48...
  • Page 5 Corner Washer M8 M8 X 16 Only full tighten bolts until after Bracket the pedal tray has been fitted. 500MM 20” 5 48...
  • Page 6 Nut M16 Washer M16 Nut M16 Washer M16 Foot Foot Foot Foot BUILD Support Plate Support Plate BOTH VERSIONS 6 48...
  • Page 7 Profile 120x40 Corner Bracket M8 X 25 End-Cap 7 48...
  • Page 8 500MM Corner M8 X 16 Washer M8 Slot-Nut M8 Bracket* BUILD 2X 8 48...
  • Page 9 Washer M8 Profile 40X40 Corner Bracket M8 X 16 Slot-Nut M8 End-Cap 9 48...
  • Page 10 Slot-Nut M8 10 48...
  • Page 11 470MM 470MM Pedal Plate Pedal Plate M8 X 25 LEFT (D3) RIGHT (D4) 11 48...
  • Page 12 Washer M8 M8 X 25 12 48...
  • Page 13 Upright Upright Upright Upright Washer M8 M8 X 16 Slot-Nut M8 Bracket LF Bracket RF Bracket LR Bracket RR 13 48...
  • Page 14 Upright Profile 120x40 Slot-Nut M8 The right upright (BP4) is End-Cap LEFT (BP3) assembled similarly. For the orientation, please see Page 15. BUILD 2X 14 48...
  • Page 15 Washer M8 M8 X 16 15 48...
  • Page 16 848MM Sandwich M8 X 20 Slot-Nut M8 120 X 80 16 48...
  • Page 17 M8 X 20 Washer M8 Slot-Nut M8 17 48...
  • Page 18 834MM Monitor Side Cap-Washer M8 X 30 Washer M8 Plate (DIN 988) 18 48...
  • Page 19 Cap-Washer M8 X 30 Washer M8 (DIN 988) 19 48...
  • Page 20 260MM Profile 120x40 Sandwich M8 X 20 Slot-Nut M8 End-Cap 120x40 BUILD 2X 20 48...
  • Page 21 Front Mount Cap-Washer M8 X 30 Washer M8 Side Plate (DIN 988) 21 48...
  • Page 22 Front Mount Cap-Washer M8 X 30 Washer M8 (DIN 988) 22 48...
  • Page 23 M8 X 20 Washer M8 23 48...
  • Page 24 1000MM Slot-Nut M8 Profile 80X40 End-Cap BUILD 2X 24 48...
  • Page 25 Floor Support Floor Support M8 X 16 Washer M8 Slot-Nut M8 RIGHT (E5) LEFT (E4) 25 48...
  • Page 26 Floor M6 X 16 Slot-Nut M6 26 48...
  • Page 27 Floor Left Floor Right M6 X 16 Slot-Nut M6 *For easier installation, temporarily remove these bolts (4) on either side. 27 48...
  • Page 28 VESA Monitor Mount M6 X 20 Washer M6 Lock-Nut M6 Plate Pivot 28 48...
  • Page 29 M8 X 16 Cap-Washer M6 X 20 M6 X 16 Washer M6 Slot-Nut M6 Lock-Nut M6 (B24) (B25) 29 48...
  • Page 30 DDU Mount DDU Mount DDU Mount M5 X 16 Washer M5 Lock-Nut M5 Bracket Bridge 30 48...
  • Page 31 DDU Mount DDU Mount Cap-Washer M6 X 20 Washer M6 Lock-Nut M6 Holder LEFT Holder RIGHT 31 48...
  • Page 32 M8 X 20 Washer M8 The DDU mount expects our Steering Wheel Extension (J1) to be fitted. 32 48...
  • Page 33 Wheel Deck M8 X 20 Washer M8 The wheel deck is not compatible with the DDU Mount. 33 48...

  • Page 34: Side Mount

    500MM Slot-Nut M8 Side Mount Profile 80X40 End-Cap 34 48...
  • Page 35 350MM Corner M8 X 16 Washer M8 Washer M8 Slot-Nut M8 Profile 40X40 End-Cap Bracket BUILD 2X 35 48...
  • Page 36 Side Mount M8 X 20 M8 X 16 Washer M8 Slot-Nut M8 Bracket (H10) (H9) 36 48...
  • Page 37 M8 X 20 Washer M8 Corner Bracket Slot-Nut M8 The Side Mount can also be fitted on the left side by simply rotating mounting brackets. 37 48...
  • Page 38 1100MM Corner M8 X 16 Washer M8 Slot-Nut M8 Side Table Profile 80X40 End-Cap Bracket 38 48...
  • Page 39 550MM Corner M8 X 16 Washer M8 Slot-Nut M8 Profile 80X40 End-Cap Bracket 39 48...
  • Page 40 Side Table Side Table Washer M8 Slot-Nut M8 M8 X 16 Bracket LEFT Bracket RIGHT 40 48...
  • Page 41 Washer M8 Slot-Nut M8 Corner Bracket M8 X 16 The Side Table is also available in a ‘Right’ version. Assembly is very much the same as shown. 41 48...
  • Page 42 Slot-Nut M5 Lock-Nut M5 Side Table M5 X 16 The additional bolts and nuts are just ‘vanity parts’ to plug the otherwise empty holes. 42 48...
  • Page 43 Wheel Deck compatibility Fanatec Thrustmaster Logitech Simagic M10 43 48...
  • Page 44 Accuforce V1 Accuforce V2 MOZA Racing 44 48...

  • Page 45: Hardware Kit

    BOX A - X1-Pro Base Part QTY Note PROFILE KIT Monitor side plate Part QTY Note Front mount 120X40 Length=1350mm Front mount side plate AP2 120X40 Length=500mm Monitor mount bracket AP3 40X40 Length=500mm Monitor mount pivot HARDWARE KIT VESA plate...
  • Page 46 BOX C - Sim Feet BOX E - Floor HARDWARE KIT HARDWARE KIT Part QTY Note Part QTY Note Foot support plate Floor Foot Threaded ball-joint rod fitted. Floor LEFT Bolt M8 X 25 DIN 912 Floor RIGHT Washer M16 DIN 125-A Floor support LEFT Nut M16 4 pre-fitted.
  • Page 47 BOX G - Wheel Deck BOX I - Side Table (optional purchase) (optional purchase, left or right version) HARDWARE KIT PROFILE KIT Part QTY Note Part QTY Note Wheel deck 80X40 Length=1100mm Bolt M8 X 20 DIN 912 80X40 Length=200mm HARDWARE KIT Washer M8 DIN 125-A Side table...
  • Page 48 If you still have some questions regarding assembly of this product or about the manual itself, please refer to our support department. They can be reached at support@sim-lab.eu Alternatively, we now have a Discord server where there are quite some experienced Sim-Lab customers hanging out.
