- Page 1 Ignis Gesture ®...
- Page 2 Illumination, reimagined.
-
Page 3: Table Of Contents
Contents. The BD story The Ignis Gesture story Intended use Safety instructions Components Charging and before use How to use Cleaning and maintenance Disposal Servicing and troubleshooting Get in touch Warranty Technical specifications www.bryant.dental UK +44 (0)7990 113723 AUS +61 (02) 44838 35021... -
Page 4: The Bd Story
The BD story. www.bryant.dental UK +44 (0)1932 320064 AUS +61 (02) 72089592... - Page 5 Bryant Dental was created by ® dentists to solve clinical problems they themselves had faced, by using technology in unprecedented ways. Since our incorporation, we have grown Dr Connor Bryant CEO and Founder exponentially, thanks to our community of passionate, talented dentists who believe, like us, that dentistry can be done differently.
- Page 6 www.bryant.dental UK +44 (0)1932 320064 AUS +61 (02) 72089592...
-
Page 7: The Ignis Gesture Story

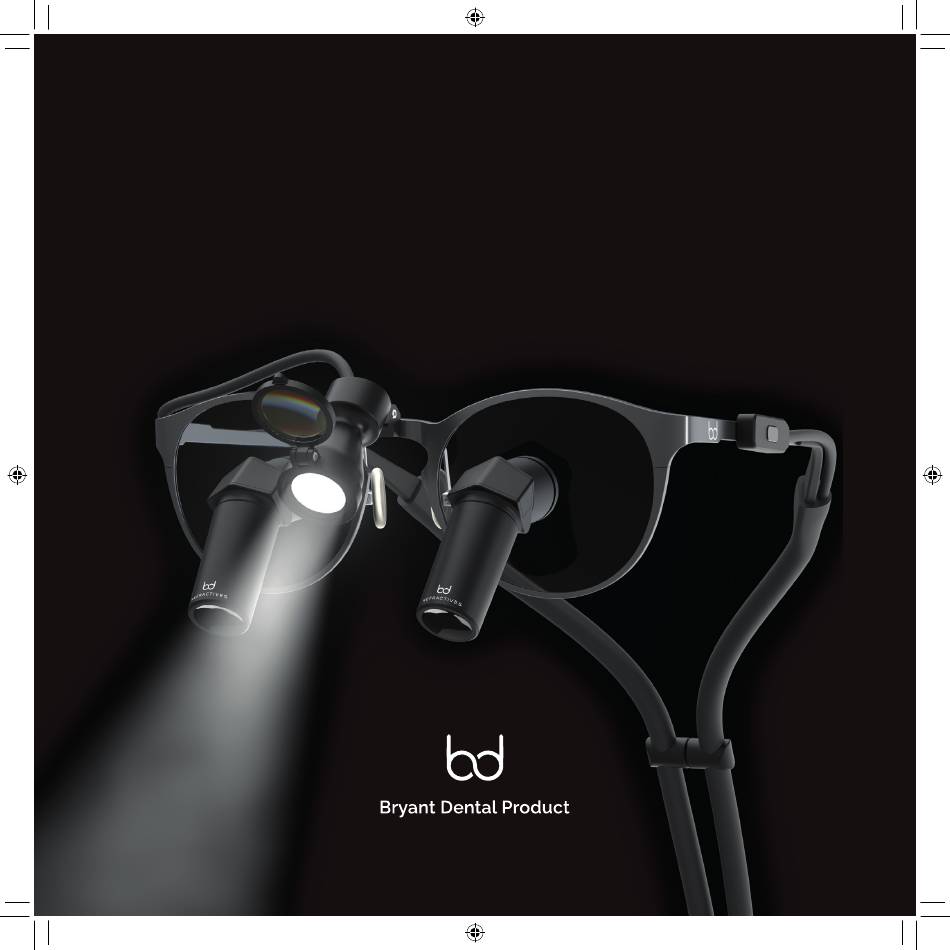

The Ignis Gesture story. The Ignis Gesture was created to provide an ultra bright headlight, with outstanding optical clarity. Ultra light and bright, the Ignis Gesture re-imagines surgical and dental illumination whilst making your loupes feel lighter. www.bryant.dental UK +44 (0)7990 113723 AUS +61 (02) 44838 35021... -
Page 8: Intended Use
Intended use. The Ignis Gesture Headlight is an illumination device attached to spectacles that is intended to illuminate oral structures and operating areas. This device is designed to be used by qualified dental professionals, including, but not limited to, dentists and dental hygienists, as well as medical doctors and/or professionals. - Page 9 Thank you for choosing Bryant Dental. We believe in creating excellent products for extraordinary dentists, and we are always proud to gain a new member of our community of passionate clinicians. Join the BD club to see what other members have done with Ignis Gesture.
-
Page 10: Safety Instructions
• Do not change or modify any of the charger will damage the battery and existing components without authorisation invalidate the warranty. from Bryant Dental ® • Do not immerse any of the Ignis Gesture • Do not leave the light on inside a pocket, system in water. -
Page 12: Components
Components. • LED Headlight • Headlight bracket (frame specific) • Dichroic composite filter • Ignis Gesture Magstrap • Battery unit x2 • Ignis Gesture screwdriver • Power adapter (country specific) • Quick start guide www.bryant.dental UK +44 (0)1932 320064 AUS +61 (02) 72089592... -
Page 14: Charging And Before Use
Charging and before use. Getting started Charging status Place the Ignis Gesture batteries onto the There are two LEDs on the charging plate charging plate where they will magnetically which glow blue when the batteries are attach in the correct orientation. charging and glow green when fully charged. -
Page 15: How To Use
How to use. Approx 1. Connect the Ignis Gesture 2-5cm away from sensor battery (A) and Ignis Gesture attachment plate (B) together. 2. Before switching on the headlight ensure that the light is not pointed at anyone. 3. Bring your hand up to the IR sensor window located on the left arm of your loupes for 2-4 seconds to switch on the... -
Page 16: Cleaning And Maintenance
Cleaning and maintenance instructions. Do not run under water. Do not spray the device. Do not submerge in any liquid or ultrasonic cleaner. Do not use autoclave or chemiclave. Do not use glutaraldehyde or idophor. Do not use a cleaner with alcohol concentration greater than 70%. -
Page 17: Disposal
When you plan to dispose of Hazardous substances are present in electrical the device, please return to and electronic equipment and present potential Bryant Dental for recycling. The risk to human health and the environment if ® European Union Waste Electrical... -
Page 18: Servicing And Troubleshooting
Run through userguide to ensure New Ignis Gesture battery switching on correct operation. Run through troubleshooting guides. packs can be ordered directly from Bryant If unsuccessful, contact Bryant Dental. ® Dental or your local ® Light comes on Ensure Ignis Gesture battery pack distributor. -
Page 19: Get In Touch
Get in touch. If you have any questions or concerns, UK office contact number: please don’t hesitate to get in touch. +44 (0)1932 320064 +44 (0)7990 113723 UK office address: Scan to connect The Barns, Hilltop Farm, Lyne Lane Chertsey KT16 0AW, United Kingdom Our 24/7 support team is always on hand if you need anything. -
Page 20: Warranty
Warranty. Bryant Dental will repair any Ignis Gesture issue ® See Product arising from a manufacturing defect for a period of two GTIN 5060678494322 years, without charge. The liability will not exceed the amount you originally paid for the product. -
Page 21: Technical Specifications
153 mm Technical specifications. Dimensions 20.50 mm 42 mm 28 mm 20.5 mm 8.6mm In the box • Ignis LED Headlight with • Battery charging dock • Quick start guide integrated headstrap • Ignis USB wall plug (country specific) • Instruction manual •... - Page 22 Technical: Model A-494322, B-494322 5060678494322 Spot size (A-490430) 10cm diameter @ 40cm Working Distance Spot size (B-490430) 7cm diameter @ 40cm Working Distance Beam colour temperature 5700K Beam intensity 36 – 90 lumens Battery weight (Circa) 33g each System weight (Circa exc. batteries) Battery operating power DC3.8V 450mA @4.71Wh...
- Page 23 Parts list: of full system: Follow instructions Part name Part code for use Ignis Gesture LED A-495404 Operating Dichroic composite filter A-495213 temperature limit Ignis Gesture battery A-494919 Ignis Gesture charging plate A-494933 This device is not sterile Power adapter (country specific) A-490058 Headlight brackets (frame specific) A-494476, A-494483...
- Page 24 www.bryant.dental UK +44 (0)1932 320064 AUS +61 (02) 72089592 UK +44 (0)7990 113723 AUS +61 (02) 4838 35021 Bryant Medical, The Barns, Hilltop Farm, Lyne Lane, Chertsey, KT16 0AW, UK Bryant Medical Ltd UK are registered trademarks in the United Kingdom and Australia. BR15/EN1.0/IGG/IFU Rev 1.6 May 2022 Registered in England &...
