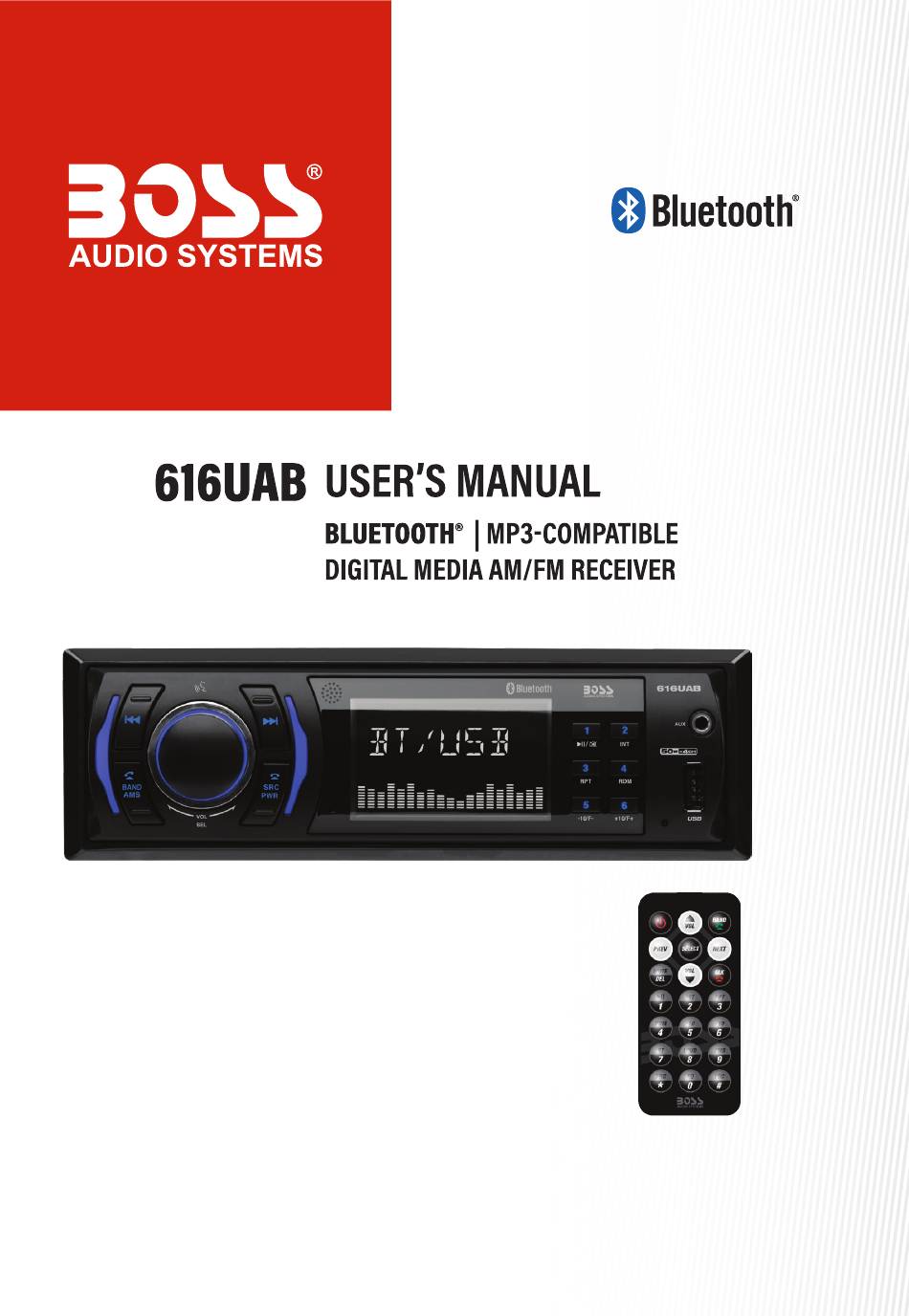

Boss 616UAB User Manual

Boss 616UAB User Manual

Digital media am/fm receiver
Hide thumbs Also See for 616UAB:

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 616UAB and is the answer not in the manual?

Questions and answers

Summary of Contents for Boss 616UAB

  • Page 2: Table Of Contents

    CONTENTS Precautions..............................1 Take Precaution ....................................................Lithium Battery Cell Warnings Installation ..............................2-3 Installation Procedures .......................... Installation Opening ..........................Wiring Connections ..........................3 Removal of the Main Unit ........................3 Overview of the Components ........................4 Operating Instructions ..........................4-6 Power On/Off ............................4 ........................
  • Page 3: Precautions

    PRECAUTIONS Take Precaution • • Some MP3/WMA files may not be playable. • • • • Be sure to lower the volume before switching off the unit or the ignition key. • The use of apparatus in moderate climates. • The symbol indicates DC voltage.
  • Page 4: Installation

    INSTALLATION Installation Procedures First complete the electrical connections and then check for correctness. Installation Opening This unit can be installed in any dashboard Having an opening as shown below. 2.05 inches 7.20 inches Insert mounting collar into the dashboard and bend the mounting tabs out with a screwdriver. Make sure that lock lever is flush with the mounting collar( not projecting outward).
  • Page 5: Wiring Connections

    INSTALLATION(CONT.) Connect all wiring harness and slide the head unit into the mounting collar until it clicks into place. Wiring Connections Radio Antenna White: Front Left PRE-AMP Output Red: Front Right PRE-AMP Output Red: Rear Right PRE-AMP Output ACC + (Red) GND - (Black) White: Rear Left PRE-AMP Output ANT + (Blue)
  • Page 6: Overview Of The Components

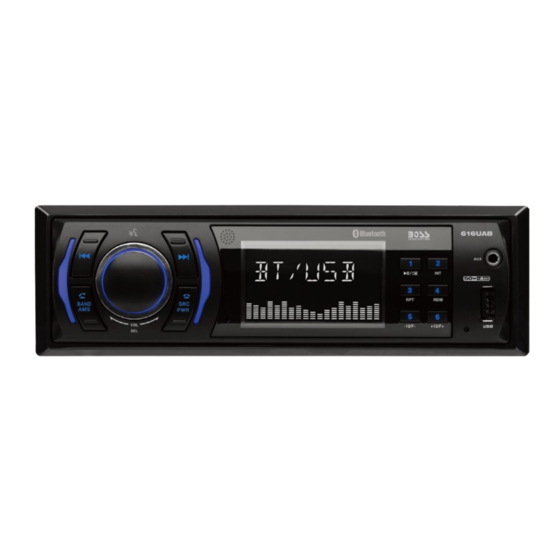

    Overview of the Components INT RPT RDM POP ROCK CLASSIC FLAT USB BT Operating Instructions 1. Turn the Unit on/off, Change the Source (SRC/PWR) • Press any button to turun on the unit. Press and hold the SRC/PWR button to turn off the unit. •...
  • Page 7: Next/Previous Track

    Operating Instructions Next/Previous Track; Fast Forward/Backward In the USB mode: Briefly press the button to play the the next or previou track. Press and hold the button to fast forward or fast backward. 5. Change Bands In radio mode, shortly press the BAND/AMS button to switch between the FM1(F1), FM2(F2), FM3(F3) and AM1(A1), AM2(A2) bands.
  • Page 8: 14. Usb Connection

    Operating Instructions 13. IR remote sensor 14. USB Connection Insert a USB stick with MP3/WMA musics into the USB port, it will start playback automatically. The USB port also support USB charging, the charging ability is 5V / 1A. 15. Hands-free Microphone To receive your voice when you calling by using this bluetooth handsfree system.
  • Page 9: Bluetooth Operation

    2. When the phone finds the car audio system, the “BOSS AUDIO 616UAB” name will be displayed. 3. Choose the “BOSS AUDIO 616UAB” from the device list to pair and connect with the car audio system. Upon confirming, the BT logo will stop flashing.
  • Page 10: Troubleshooting

    TROUBLESHOOTING If you suspect something is wrong, immediately switch power off. Do not use the unit in abnormal condition, for example without sound, or with smoke or foul smell, can cause fire or electric shock. Immediately stop using it and call the store where you purchased it. Never try to repair the unit by yourself because it is dangerous to do so.
  • Page 11 SPECIFICATIONS General Power supply Requirement : DC 12V Maximum power output : 50W X 4CH Speaker impedance : 4 - 8 Ohm Unit Dimensions(WxHxD) : 7.0 X 2.0 X 4.25 inches Weight : 1.32 Lb (0.6 kg) Fuse : 10 A RADIO Frequency Range: 87.5 MHz - 107.9 MHz (USA)
