ARIES

27.5INCH ELECTRIC BICYCLE

USER MANUAL

IN ORDER TO CONTINUE SERVING OUR CUSTOMERS AND PROVIDING THE BEST PRODUCTS,

OUR PRODUCT INFORMATION INCLUDING OUR USER MANUALS MAY RECEIVE UPDATES FROM TIME TO TIME.

PLEASE CHECK OUR WEBSITE FOR THE LATEST USER MANUALS AND PRODUCT MATERIALS. VER. 1.0 04/24/2022

Table of Contents

Need help?

Do you have a question about the ARIES 2022 and is the answer not in the manual?

Questions and answers

Summary of Contents for WHEELSPEED ARIES 2022

Page 1 ARIES 27.5INCH ELECTRIC BICYCLE USER MANUAL IN ORDER TO CONTINUE SERVING OUR CUSTOMERS AND PROVIDING THE BEST PRODUCTS, OUR PRODUCT INFORMATION INCLUDING OUR USER MANUALS MAY RECEIVE UPDATES FROM TIME TO TIME. PLEASE CHECK OUR WEBSITE FOR THE LATEST USER MANUALS AND PRODUCT MATERIALS. VER. 1.0 04/24/2022...
Page 3 To ensure your safety and the safety of others, please read and be sure to follow all instructions and safety recommendations in this user manual prior to and when riding your bike. If you have any questions regarding the WHEELSPEED ARIES E-Bike, contact our service team by mail for further assistance.
Page 4: Table Of Contents
TABLE OF CONTENTS ..01 Section 4 PRODUCT SAFETY NOTICE HOW TO RIDE AND LCD DISPLAY Section 1 DESCRIPTION GENERAL INFORMATION 4.1 How to Ride ..
Page 5: Product Safety Notice
PRODUCT SAFETY NOTICE The WHEELSPEED ARIES E-Bike has been designed with the utmost safety in mind for its riders. Extra precautions have been taken to protect the user from product hardware malfunctions through our meticulous design and engineering. However, like any mode of transportation, the ARIES E-Bike has inherent hazards associated with its use (e.g.: losing control, falling off, or riding into a hazardous situation).
Page 6 By riding the WHEELSPEED ARIES E-Bike, the user acknowledges and accepts personal responsibility of all risks associated with the use of the WHEELSPEED ARIES E-Bike, which may include, but are not limited to, muscle injuries, broken bones, lacerations, or serious injury which may be sustained while using the WHEELSPEED ARIES E-Bike.
Page 7: General Information
Section 1 GENERAL INFORMATION This user manual will guide you through the functions and usage of your WHEELSPEED ARIES E-Bike. Before operating this device, read all the instructions for safe assembly, charging, and usage. Upon unpacking, please inspect the WHEELSPEED ARIES E-Bike for any signs of physical damage or defects.
Page 8: What's In The Box
OUR PRODUCT INFORMATION INCLUDING OUR USER MANUALS MAY RECEIVE UPDATES FROM TIME TO TIME. PLEASE CHECK OUR WEBSITE FOR THE LATEST USER MANUALS AND PRODUCT MATERIALS. VER. 1.0 04/24/2022 1x Tool Kit 2x Battery lock Keys 2x Pedal 1x Charging Cable & Adapter 1x User Manual WHEELSPEED ARIES 27.5" E-Bike 04...
Page 9: Aries E-Bike Diagram

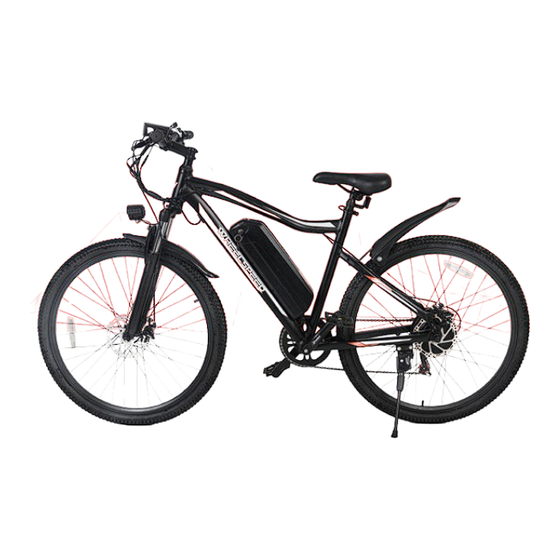

1.3 ARIES E-Bike Diagram 1. Seat 2. Rear Fender 3. Battery 4. Battery Charging Port(With cover) 5. Battery Power Button 6. LCD Display 7. Headlight/Horn 8. Front Frender 9. Brake Disc 10. Brake Caliper 11. Front Wheel 12. Foot Padel 13.
Page 10: Assembling, Adjusting Your Aries E-Bike
Section 2 ASSEMBLING, ADJUSTING YOUR WHEELSPEED ARIES E-BIKE NOTE: Be careful not to position your fingers between the latch and the stem. Doing so may result in injury. Brake caliper 2.1 Installing the Front Wheel Front fork For initial assembly, you will need to ask for someone's help.
Page 11: Installing The Pedals
2.2 Installing the pedals Before installing the pedals, please check each for a small letter to indicate which side of the bike the pedal should be attached to. is for the left side while is for the right side (fig.4). With the kickstand holding your E-Bike upright, screw the pedals onto the crank arms (fig.5) and tighten them with the included wrench.
Page 12: Adjusting Seat Height
If your knee bends slightly at this position, the seat is at the right height. Additionally, when placing your heel on the pedal, your leg should be nearly straight. WHEELSPEED ARIES 27.5" E-Bike 08...
Page 13: Installing The Battery
First, open the clamp under the seat post. Pull the seat up or push it down to adjust height. Check to make sure the seat post is fully inserted into the frame and the head of the seat is parallel with the frame. Lastly, close the clamp to secure the seat in place (fig. 6). Latch 2.5 Installing the battery fig.
Page 14: Installing The Front And Rear Fenders
Step 4. Fix the two parts above with the rear fender screw, then tighten the screw with a wrench and adjust the height of the rear fender at the same time, the rear fender installation is completed. WHEELSPEED ARIES 27.5" E-Bike 10...
Page 15: Charging Your Aries E-Bike
Section 3 CHARGING YOUR ARIES E-BIKE WARNING: Ensure the E-Bike is turned off before charging and remains off while charging. 3.1 How to charge the Battery Step 1. Connect the adapter and the charging cable together. Step 2. Rotate the battery's charging port cover to expose the charging port, insert one end of the charging cable into the charging port and connect the other Charging end to a wall outlet(fig.7).
Page 16 • In order for the battery to operate at maximum efficiency, avoid charging your E-Bike in extremely hot or extremely cold environments. • Use only the battery and charging cable provided to you by WHEELSPEED, use of third party products may compromise the battery and damage the E-Bike. If a replacement is needed, please contact WHEELSPEED directly.
Page 17: How To Ride And Lcd Display Description
Section 4 HOW TO RIDE AND LCD DISPLAY DESCRIPTION 4.1 How to Ride The instructions below will ensure you have a comfortable and safe riding experience. Please read carefully. There’s a power switch beside the battery charging port. Remember to turn the battery power switch to “ I ” if you plan to use the throttle and/or battery power.
Page 18: Lcd Display Description
Single mileage-TRIP Single driving time-TIME Current voltage-VOL Running current-CUR 4. Power motor gear-5 gears to switch Gear1: 7.5MPH / 12KM/H Gear2: 12MPH / 20KM/H Gear3: 15.5MPH / 25KM/H Gear4: 18.6MPH / 30KM/H Gear5: 20MPH / 32KM/H WHEELSPEED ARIES 27.5" E-Bike 14...
Page 19 5. Speed display CUR MAX: Current Max.Speed AVG: Average Speed MPH, KM/H：Speed Uint 6. E-bike status display 6KM/H Push asist mode Cruise mode Power asist mode Battery undervoltage Brake tips Controller failure Motor failure Throttle failure 7. E-bike display settings When the display is powered on, long press the “...
Page 20: Safe Riding Techniques & Tips
• Never get off the E-Bike when it is in motion. FAILURE TO USE COMMON SENSE AND HEED THE ABOVE WARNINGS INCREASES THE RISK OF SERIOUS INJURY, OR IN VERY RARE CASES, DEATH. USE WITH APPROPRIATE CAUTION AND SERIOUS ATTENTION TO SAFE OPERATION. WHEELSPEED ARIES 27.5" E-Bike 16...
Page 21: Disposal At End-Of-Life
The substances contained inside the battery present chemical risks to the environment. The recommended disposal for any WHEELSPEED product at its end- of-life is to dispose of the entire unit at or through an e-waste recycling center, program, or facility. Local regulations and laws pertaining to the recycling and disposal of lithium-ion batteries and/or products containing them will vary according to country, state, and local governments.
Page 22: Cleaning
Lithium-ion batteries are considered hazardous materials, therefore transportation is governed by federal, state, and local laws. International law prohibits the shipping of bare lithium-ion batteries. If you are shipping your WHEELSPEED ARIES Electric Bike, you must ship it with the battery installed.
Page 23: Specifications
Section 7 SPECIFICATIONS Parameters ITEM Model Name ARIES Net Weight 49.6 lbs / 22.5 kg Product Dimensions 68.9 x 24.8 x 41.7 inch. / 1750 x 630 x 1060 mm. Motor Power 500W rated, 800W peak Maximum Climbing Angle 25° Battery Capacity 48V 11.6 Ah Charging Voltage...
Page 24: Troubleshooting
Tighten or replace the throttle The motor does not respond when the Loose or damaged motor plug wire Secure or replace the motor plug wire bike is powered on Damaged motor Repair or replace the motor WHEELSPEED ARIES 27.5" E-Bike 20...
Page 25 Low tire pressure Adjust tire pressure Low or faulty battery Check connections or charge battery Assist with pedals or adjust route Driving with too many hills, headwinds,braking, and/or excessive load Reduced range Battery discharged for a long period of time without regular Balance the battery;...
Page 26: Warranty
Warranty services are provided by WHEELSPEED. If a hardware defect arises and a valid claim is received within the Warranty Period, at its option and to the extent permitted by law, WHEELSPEED will: (1) repair the hardware defect by using new or refurbished parts that are equivalent to new in performance and reliability;...
Page 27 Important: Do not disassemble the Product. Disassembling the Product will void this Warranty. Only WHEELSPEED or a party expressly authorized by WHEELSPEED should perform service on this Product. DISCLAIMER OF WARRANTY: THE REMEDIES DESCRIBED ABOVE ARE YOUR SOLE AND EXCLUSIVE REMEDIES AND OUR ENTIRE LIABILITY FOR ANY BREACH OF THIS LIMITED WARRANTY.
