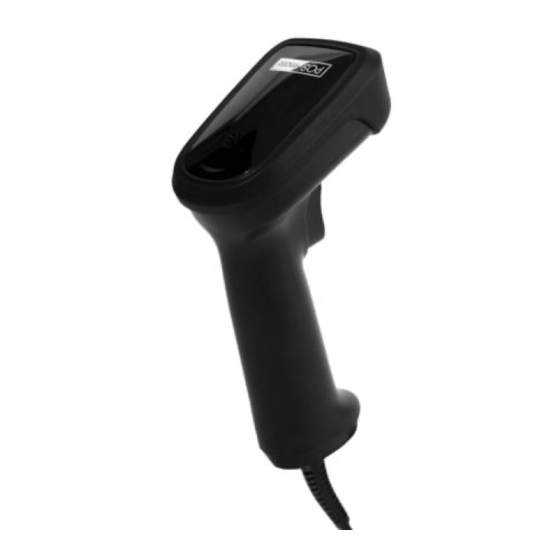

- Page 1 USB Barcode Scanner PM-BCU1D-B Instruction Manual...
-
Page 3: Table Of Contents
Contents Warranty Get To Know Your POS-mate Barcode Scanner LED Indicators Beep Indicators Setting Up Your POS-mate Barcode Scanner Volume Settings Automatic Scanning Mode Continuous Scanning Mode Suffix Settings Inversed Barcode Setting Hide Character Settings Keyboard Language Settings Lock Configuration... -
Page 4: Warranty
Warranty POS-mate reserves the right to make changes to any product to improve reliability, function, or design. POS-mate does not assume any product liability arising out of, or in connection with, the application or use of any product, circuit, or application described herein. No license is granted,... -
Page 5: Get To Know Your Pos-Mate Barcode Scanner
Get To Know Your POS-mate Barcode Scanner PM-BCBT2D-W Instruction Manual v.1.0... -
Page 6: Led Indicators
LED Indicators LED Sequence Description Blue - Flash Reading Barcode Beep Indicators Beep Sequence Description 2 short beeps Connected 1 short beep Barcode read successfully 1 long beep Data upload unsuccessful PM-BCBT2D-W Instruction Manual v.1.0... -
Page 7: Setting Up Your Pos-Mate Barcode Scanner
Remove your POS-mate USB Barcode Scanner from its packaging and place it on your countertop. Insert one end of the cable supplied into the POS-mate USB Barcode Scanner, the other end into a USB port on you PC or Mac. -
Page 8: Automatic Scanning Mode
Automatic Scanning Mode Your POS-mate USB Barcode Scanner can be programmed to automatically scan when movement is detected without the need for the scanner button to be pressed. Scan the Turn On Auto Mode barcode to enable this feature, you can disable this feature at any time by scanning the Turn Off Auto Mode barcode. -
Page 9: Suffix Settings
Suffix Settings Your POS-mate USB Barcode Scanner will simulate pushing the Return or Enter key on your keyboard at the end of each scan, also known as Carriage Return (CR). Your scanner can be programmed to simulate a Tab on your keyboard or simulate nothing after each scan. -
Page 10: Inversed Barcode Setting
Disable Inversed Barcodes Enable Inversed Barcodes Hide Character Settings Your POS-mate USB Barcode Scanner can hide 1, 2, or 3 characters at the start or the end of a barcode. Simply scan the barcode required below to set you POS-mate USB Scanner. - Page 11 Hide First 3 Barcode Characters Cancel Hide First Barcode Characters Hide Last Barcode Character Hide Last 2 Barcode Characters Hide Last 3 Barcode Characters Cancel Hide Last Barcode Characters PM-BCBT2D-W Instruction Manual v.1.0...
-
Page 12: Keyboard Language Settings
Keyboard Language Settings The POS-mate USB Barcode Scanner default keyboard language is American English. You can adjust your keyboard language setting by scanning the desired language barcode. American English British English French Spanish Other languages can be found at www.pos-mate.com/support use your scanner to scan the code into your browser. -
Page 13: Lock Configuration
Lock Configuration You can lock your POS-mate USB Barcode Scanner from accepting any configuration barcodes by scanning the Disable Configuration barcode. You will need to scan the Enable Configuration barcode to unlock your POS-mate USB Scanner make further configuration changes. -
Page 14: Technical Information
Technical Information Product name POS-mate USB Barcode Scanner Product code PM-BCU1D-B 746935310318 Scanner type Light source Red LED 32bit Resolution 2500 Reading precision 3mil Decoding speed 300t scans/s Depth of field 3cm – 60cm Scan mode Manual (default) Autosensing Scan Angle Roll: 30°... -
Page 15: Troubleshooting
Troubleshooting Scanner not working Scanner not connected Check USB cable is connected at both ends. Scanner does not decode barcode Barcode is unreadable Ensure barcode is complete, try another barcode Some barcodes disabled Review Barcode Type Settings Distance between scanner Move barcode scanner to and barcode is incorrect between 3cm and 50cm from... - Page 16 © POS-mate 2022...
