Summary of Contents for POS-Mate PM-BCBT2D-W

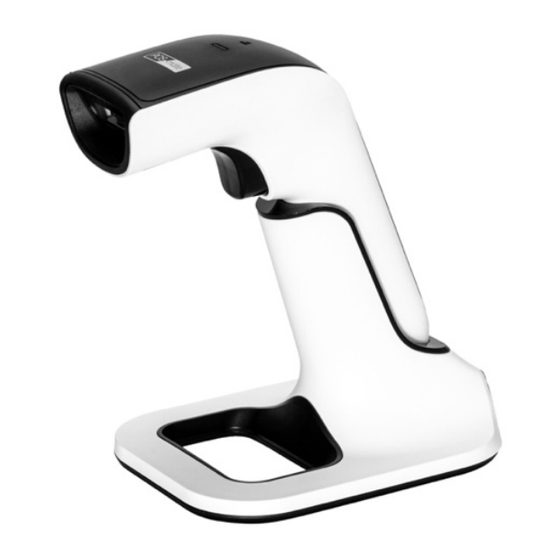

- Page 1 Wireless Barcode Scanner PM-BCBT2D-W Instruction Manual...
-
Page 3: Table Of Contents
Manual Pairing Sleep Settings Automatic Scanning Mode Barcode Type Settings Data Transfer Settings Suffix Settings Letter Conversion Settings Hide Character Settings Keyboard Language Settings Restore Factory Settings System Information SPP and BLE Pairing Technical Information Troubleshooting PM-BCBT2D-W Instruction Manual v.1.0... -
Page 4: Warranty
Warranty POS-mate reserves the right to make changes to any product to improve reliability, function, or design. POS-mate does not assume any product liability arising out of, or in connection with, the application or use of any product, circuit, or application described herein. No license is granted,... -
Page 5: Get To Know Your Wireless Barcode Scanner
Get To Know Your Wireless Barcode Scanner PM-BCBT2D-W Instruction Manual v.1.0... -
Page 6: Led Indicators
Beep Indicators Beep Sequence Description 1 long beep Power ON/OFF 1 short beep Scan or pairing success 2 short beeps Wireless disconnection (out of range) 3 short beeps Scanner memory full 5 short beeps Recharge scanner PM-BCBT2D-W Instruction Manual v.1.0... -
Page 7: Setting Up Your Wireless Barcode Scanner
App for iOS, iPadOS or Square Stand, follow the setup instructions at http://square.com/help/article/5143 or use your scanner to scan the QR code into your browser POS-mate Wireless Barcode Scanner is not compatible with Square App for Android or Square Terminal. PM-BCBT2D-W Instruction Manual v.1.0... -
Page 8: Automatic Pairing
8 seconds. The blue LED lights on the scanner will start alternatively flashing. Turn on Bluetooth on your smartphone, tablet, Mac or PC, search for “POS-mate Scanner” and pair. Your POS-mate Wireless Barcode Scanner will give a short beep, the blue LED will remain solid and is connected. -
Page 9: Ios / Ipados Virtual Keyboard Control
/ iPadOS Virtual Keyboard Control To show or hide your keyboard from your POS-mate Wireless Barcode Scanner, simply double click the scanner button to show the keyboard, and double click the scanner button to hide. You may choose to disable this feature by scanning the Disable Show/Hide Keyboard barcode. -
Page 10: Volume Settings
Volume Settings Your POS-mate Wireless Barcode Scanner will beep each time the scanner button is pressed. Adjust the volume of the scanning beep on your POS-mate Wireless Barcode Scanner to mute, low volume or high volume by scanning the desired barcode below. -
Page 11: Sleep Settings
Wireless 2.4G Pair Sleep Settings Your POS-mate Wireless Barcode Scanner will go to sleep after 5 minutes of no use. Press the scanner button to wake your scanner, it will connect to your device in a few seconds. To adjust the duration before your scanner sleeps, scan the desired barcode. - Page 12 1 Minute 2 Minutes 5 Minutes (default) 10 Minutes 30 Minutes Never Sleep Sleep Immediately PM-BCBT2D-W Instruction Manual v.1.0...
-
Page 13: Automatic Scanning Mode
Automatic Scanning Mode Your POS-mate Wireless Barcode Scanner can be programmed to automatically scan when movement is detected without the need for the scanner button to be pressed. Scan the Auto Scan Mode barcode to enable this feature, you can disable this feature at any time by scanning the Manual Scan Mode barcode. -
Page 14: Data Transfer Settings
Instant Mode (default) Storage Mode Data Transfer Control If your POS-mate Wireless Barcode Scanner is set to Storage Mode, you will need to transfer the data manually when within signal range of your connected device. When in range, scan the Upload Data barcode to upload all the stored barcodes. - Page 15 Clear All Data Total Data Stored Data Transfer Rate Your POS-mate Wireless Barcode Scanner has multiple data transfer rates for Bluetooth HID/SPP/BLE. Depending on your environment (electrical interference) you may need to slow down your transfer rate to ensure all data is transferred correctly. Scan the required scan rate barcodes to adjust.
-
Page 16: Suffix Settings
Very Low Suffix Settings Your POS-mate Wireless Barcode Scanner will simulate pushing the Return or Enter key on your keyboard at the end of each scan, also known as Carriage Return (CR). Your scanner can be programmed to simulate a Tab on your keyboard or simulate nothing after each scan. -
Page 17: Letter Conversion Settings
Cancel Letter Conversion (default) Hide Character Settings Your POS-mate Wireless Barcode Scanner can hide 1, 2, 3 or 4 characters at the start or the end of a barcode. Simply scan the Hide First “X” Barcode Characters and the Hide 1,2,3 or 4 Character barcodes to hide the first characters. - Page 18 Hide First “X” Barcode Characters Hide Last “X” Barcode Characters Hide 1 Character Hide 2 Characters Hide 3 Characters Hide 4 Characters Cancel Hide First “X” Barcode Characters Cancel Hide Last “X” Barcode Characters PM-BCBT2D-W Instruction Manual v.1.0...
-
Page 19: Keyboard Language Settings
Keyboard Language Settings The POS-mate Wireless Barcode Scanner default keyboard language is American English. You can adjust your keyboard language setting by scanning the desired language barcode. American English British English French Japanese International General Keyboard Other languages can be found at www.pos-mate.com/support... -
Page 20: Restore Factory Settings
Restore Factory Settings Your POS-mate Wireless Barcode Scanner can be restored to its factory setting by scanning the barcode. Restore Factory Settings System Information Firmware Version Battery Level SPP and BLE Pairing SPP and BLE Pairing requires additional software. Bluetooth SPP Mode Pairing Bluetooth SPP mode supports additional software connected to Windows, MacOS, iOS, iPadOS, Android and other systems. - Page 21 BLE Mode and Pair barcodes. The blue LED lights on the scanner will start simultaneously flashing. Turn on Bluetooth on your smartphone, tablet, Mac or PC, search for “POS-mate Scanner” and pair. Your POS-mate Wireless Barcode Scanner will give a short beep, the blue LED will remain solid and is connected.
-
Page 22: Technical Information
Battery capacity 2200mAh Charge time » 3 hours Operating time » 16 hours Power requirements DC 5v@200mA Operating temperature -20°C to 55C Storage temperature -20°C to 60C Humidity 5% to 95% (non-condensing) Certificates FCC, RoHS, CE, RCM PM-BCBT2D-W Instruction Manual v.1.0... -
Page 23: Troubleshooting
Scanner decodes barcode but does not transmit data Scanner is too far from Move closer to connected connected device device or change to Storage Mode Scanner is in Storage Mode Upload data manually or change to Instant Mode PM-BCBT2D-W Instruction Manual v.1.0... - Page 24 © POS-mate 2020...
