Installation guide / Einbauanleitung /
Guide dꞌinstallation / Guía de instalación

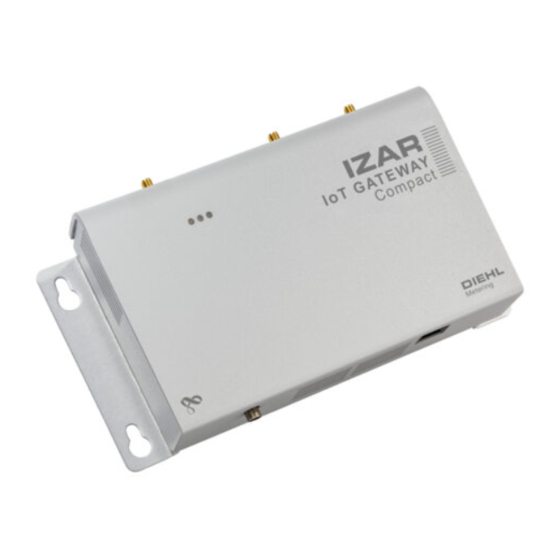

IZAR IoT GATEWAY Compact
Radio frequency 868 MHz
Funkfrequenz / Fréquence radio / radio frecuencia
Frequency
bands
Frequenzband /
Bande de fré-quence /
Banda de frecuencia
Antenna gain max. 0dBd/2.2dBi
max. Antennengewinn / Gain d'antenne max. /
max. ganancia de antena
Connection SMA
Anschluss / Connexion / Conexión
• LTE-FDD: B1/B3/B7/B8/B20/B28A
• WCDMA: B1/B8
• GSM/ EDGE: B3/B8
• LoRa: EU863-870 MHz
• mioty®: 868-870 MHz (EU1 band)
• wM-Bus: 868-870 MHz
15 mm
max.
+70°C
min.
-20°C
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Diehl IZAR IoT GATEWAY Compact
Summary of Contents for Diehl IZAR IoT GATEWAY Compact
- Page 1 Installation guide / Einbauanleitung / Guide dꞌinstallation / Guía de instalación IZAR IoT GATEWAY Compact max. +70°C min. -20°C Radio frequency 868 MHz Funkfrequenz / Fréquence radio / radio frecuencia 15 mm Frequency • LTE-FDD: B1/B3/B7/B8/B20/B28A • WCDMA: B1/B8 bands •...
- Page 2 IZAR IoT GATEWAY Compact User guide LED blue (power) ® ® LoRaWAN mioty network network RJ45 Power Login: admin Password: admin-<M-number> License key from supplier...
- Page 3 IZAR IoT GATEWAY Compact * not included 50 cm...
- Page 4 25 mW e.r.p. ≤ 1% duty cycle Simplified EU declaration of conformity Hereby, Diehl Metering declares that the radio equipment type described in this manual is in compliance with Directive 2014/53/EU . The full text of the EU declaration of conformity is available at the following internet address: www.diehl.com/metering...
