Kenwood GTM 10 Installation Sheet

Kenwood GTM 10 Installation Sheet

Fm tmc traffic receiver
Hide thumbs

Advertisement

Available languages
  • EN

Available languages

  • ENGLISH, page 1

Quick Links

Download this manual
Due to the location of the vehicle's radio antenna, Kenwood highly recommends that the GTM 10
be installed by a professional installer. Installing the GTM 10 without the aid of a professional
installer may damage the GTM 10 and void your warranty.
The GTM 10 FM TMC Traffi c Receiver installs between a vehicle's radio and its antenna cable.
Carefully read this Installation Sheet and follow the instructions to install the GTM 10 in the vehicle.

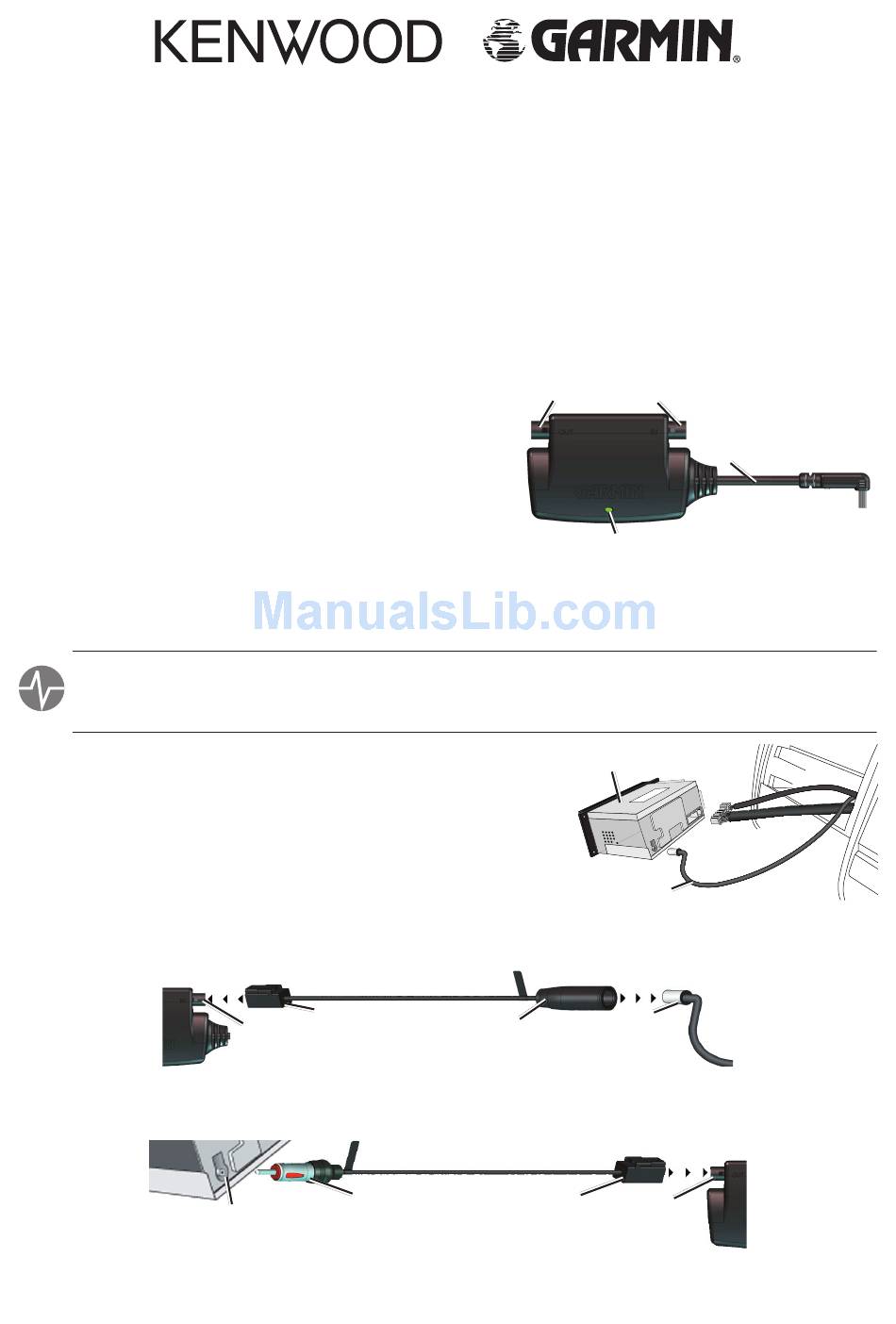

GTM 10 Overview
The GTM 10 has two cable connectors that allow it to be
installed in series between the antenna and radio. Do not
open the GTM 10 or loosen the case screws.
In: In from antenna. Connect the antenna adapter here.
Out: Out to radio. Connect the radio adapter cable here.
LED: displays the signal status.
Mini-B USB cable: 1.5-meter built-in cable to connect to a
GPS device.
Step 1: Prepare the Radio
TEST: Before installation, test the vehicle's radio to ensure that the antenna is functioning properly and the
radio can receive all normal FM signals. If the antenna functions improperly, the GTM 10 may not work
properly. Consult the owner about continuing with installation.
Remove the trim panel and other parts of the dashboard to access
the vehicle's radio antenna cable. You may need to remove the
radio as well. Detach the antenna cable.
Step 2: Connect to the Radio
The GTM 10 connects in series between the antenna and radio.
1. Connect the antenna plug to the female (receptacle) adapter cable. Connect the Fakra plug to the In
connector on the GTM 10. The Fakra plug locks fi rmly in place.
2. Connect the Fakra connector of the adapter cable to the Out connector of the GTM 10. Connect the
male (plug) adapter cable into the radio receptacle, as shown below.
receptacle
GTM 10 FM TMC T
I
NSTALLATION
Fakra
connector
GTM 10
In
Male
Radio
adapter
R
RAFFIC
ECEIVER
S
HEET
Out
Radio
Antenna Cable
Female
adapter
Fakra
connector
EN-1
In
Mini-B USB cable
(cord is not to scale)
LED
Antenna
connector
GTM 10
Out
