sescom SES-DIPRO Manual

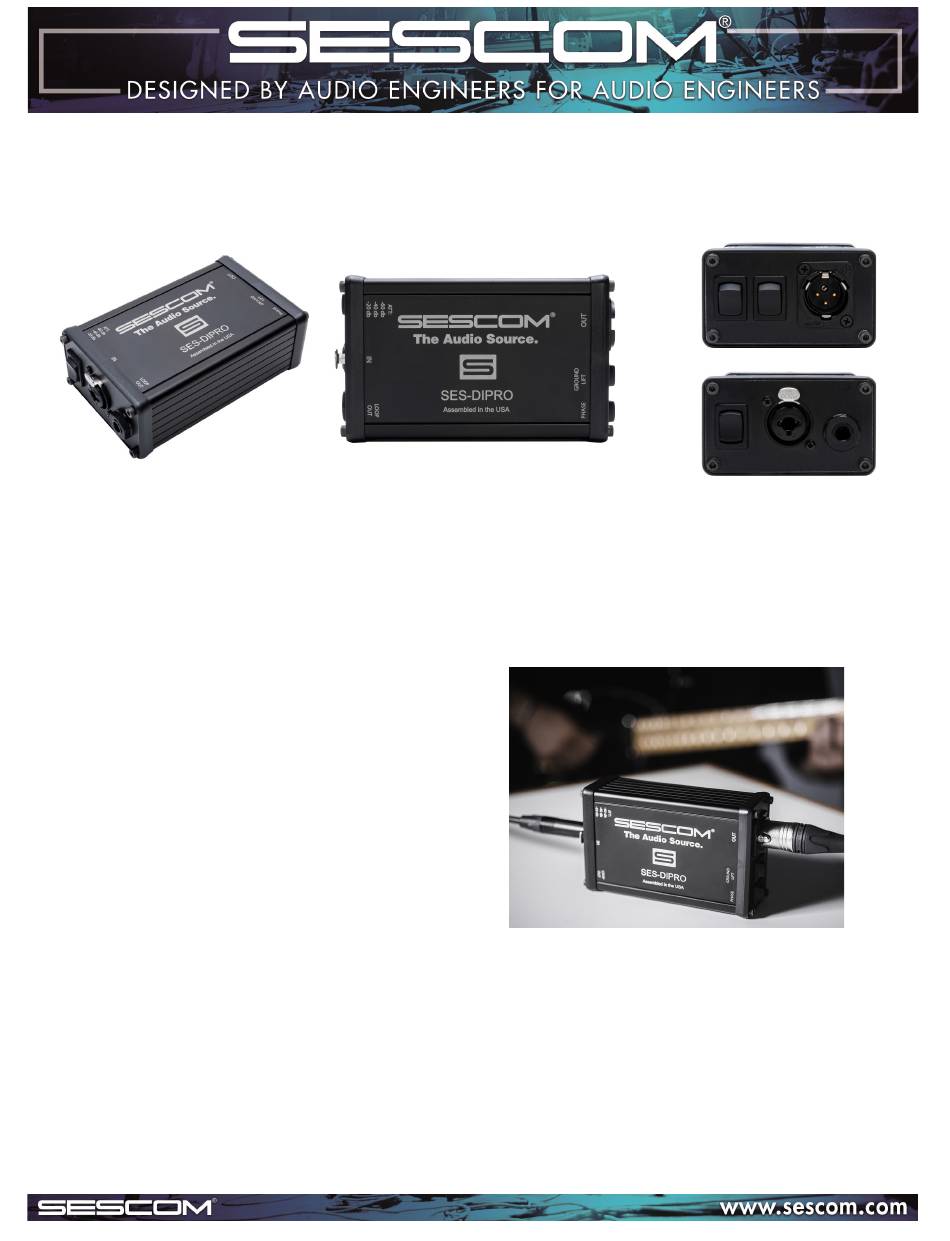

Sescom SES-DIPRO Studio-Quality High Fidelity Passive
The Sescom SES-DIPRO is a studio-quality, passive direct box that's designed to connect high-impedance or line-level
unbalanced signals to low-impedance, microphone-level balanced inputs. Built with high-fidelity circuitry in a rugged,
extruded-aluminum case, the SES-DIPRO is perfect for both studio and stage applications.
The unit is equipped with a 3-position attenuation switch (-20 dB, -40 dB, -60 dB) to help ensure that overly hot signals
won't overload the input. A ground lift switch and a phase-select switch are also included on the unit. The Loop Out jack
is a pass-through for connecting your instrument to an amplifier for localized monitoring.

FEATURES

•
Passive Operation
•
High-Fidelity Circuitry
•
Balanced/Unbalanced Sensing at Input
•
Ground Lift Switch
•
Phase Select Switch
•
3-Position Attenuation Switch
•
Heavy Duty Construction
•
Loop Out Jack

SPECIFICATIONS

•
Input Connectors: 1 x ¼"/XLR Combo Jack
•
Output Connectors: 1 x Neutrik XLR-M Mic-Level (Balanced) 1 x ¼" Loop Out (TS or TRS)
•
Input Impedance: 66kΩ @ -20 dB / 75kΩ @ -40 dB / 800kΩ @ -60 dB
•
Output Impedance: 1kΩ
•
Frequency Response: 20 Hz to 20 kHz +/- 0.25 dB
•
Controls: 3-position Attenuation Switch: -20 dB, -40 dB, -60 dB / Phase Select Switch / Ground Lift Switch
•
Dimensions (LxWxH): 5.4" x 3.2" x 1.9"
•
Weight: 313g
Direct DI Box
