Smartro U80H Instruction Manual

Automatic upper arm blood pressure monitor

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Automatic Upper Arm Blood Pressure Monitor

Instruction Manual

Model: U80H

Table of Contents

Troubleshooting

Need help?

Do you have a question about the U80H and is the answer not in the manual?

Questions and answers

Raymond P Biggs

May 28, 2025

Why won't my BP monitor shut off whether on AC power, or battery? I have to disconnect power, or remove batteries to shut it off.

Summary of Contents for Smartro U80H

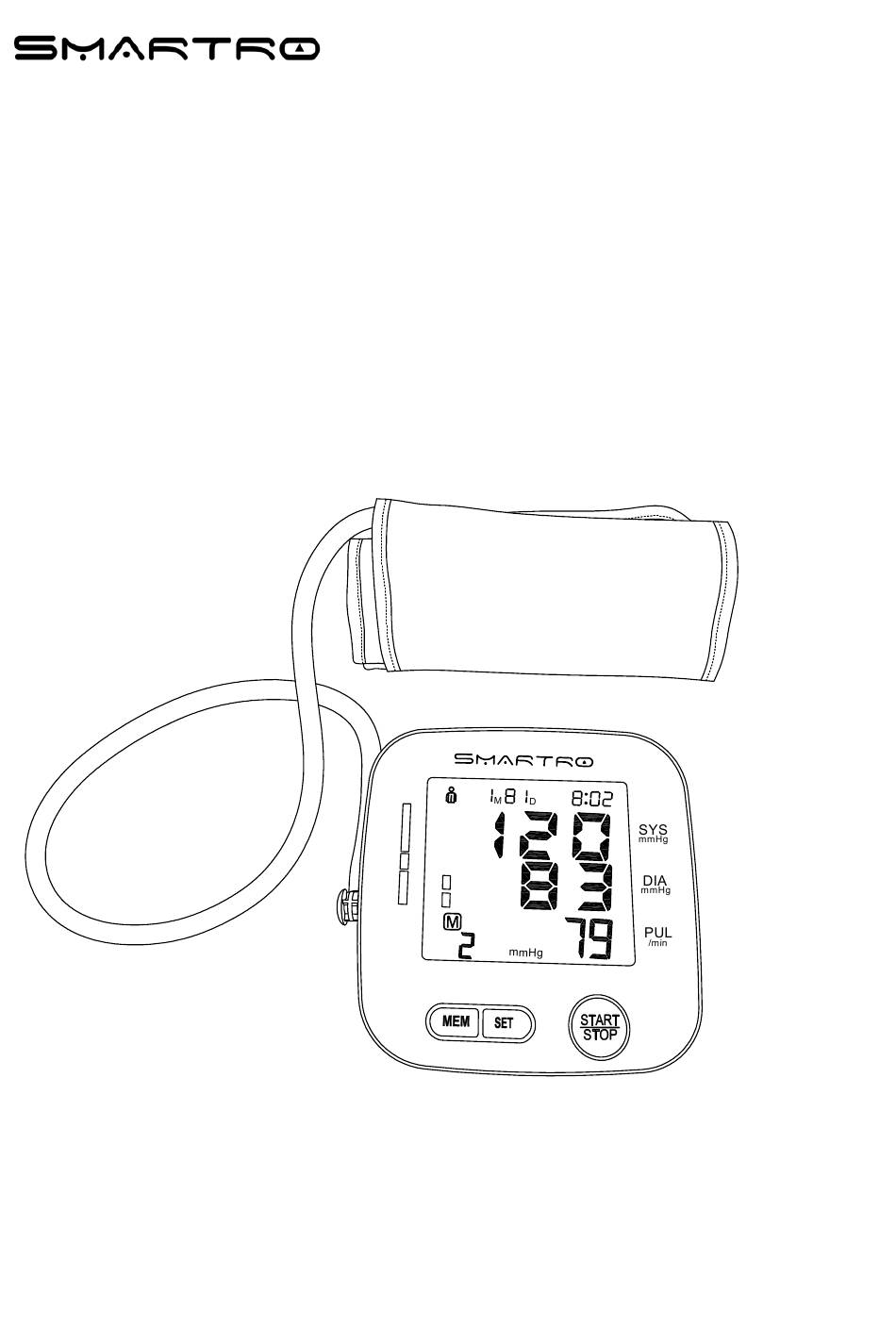

Page 1 Automatic Upper Arm Blood Pressure Monitor Instruction Manual Model: U80H...
Page 3: Table Of Contents
Content Introduction................2 Classification................2 Important Safety Information............3 1. Know Your Device................7 1.1 Display Symbols..............8 1.2 Before Taking a Measurement..........8 2. Preparation..................8 2.1 Battery Installation...............8 2.2 Setting Mode................9 3. Using the Device................10 3.1 Applying the Arm Cuff............10 3.2 How to Sit Correctly...............12 3.3 Taking a Measurement............13 3.4 Using the Memory Function..........14 4.
Page 4: Introduction
Introduction Thank you for purchasing the SMARTRO Automatic Upper Arm Blood pressure monitor. The SMARTRO U80H is a compact, fully automatic upper arm blood pressure monitor, operating on the oscillometric principle. It measures your blood pressure and pulse rate simply and quickly. For comfortable...
Page 5: Important Safety Information
Important Safety Information Warning: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. (General Usage) DO NOT adjust medication based on measurement results from this blood pressure monitor. Take medication as prescribed by your physician. Only a physician is qualified to diagnose and treat High Blood Pressure.
Page 6 The air tube or the AC adapter cable may cause accidental strangulation in infants. Contained small parts that may cause a choking hazard if swallowed by infants. (General Usage) Always consult your physician. Self-diagnosis of measurement results and self-treatment are dangerous. People with severe blood flow problems, or blood disorders, should consult a physician before using the device, as the arm cuff inflation can cause bruising.
Page 7 mmHg” of this instruction manual, if your systolic pressure is known to be more than 210 mmHg. Inflating to a higher pressure than necessary may result in bruising where the cuff is applied. (Battery Usage) Do not insert the batteries with their polarities incorrectly aligned.
Page 8 Read and follow the “Important information regarding Electro Magnetic Compatibility (EMC)” in the “6. Specifications”. Read and follow the “WARNING” in “Important Safety Information” when disposing of the device and any used accessories or optional parts. Please check (for example, by observation of the limb concerned) if the device is not causing a prolonged impairment of PATIENT blood circulation.
Page 9: Know Your Device
1. Know Your Device Contents: Monitor, arm cuff, instruction manual, storage case Monitor: Display START/STOP button AC adapter jack Setting button Air jack Memory button Battery compartment Arm cuff: Air tube Arm cuff (Arm circumference 22-42 cm) Air plug Display:...
Page 10: Display Symbols
1.1 Display symbols Average Value Symbol The average value symbol is displayed when you press the MEM button when power off. The latest 3 times average value will be shown. Pulse Rate Symbol When the device detects the signal, the pulse rate symbol on the display starts to flash.
Page 11: Setting Mode
ensure each battery is in the proper direction. 3. Replace the battery cover. Notes: When the depleted battery symbol appears on the display, turn the monitor off and remove all the batteries. Replace with 4 new batteries at the same time. Long life alkaline batteries are recommended.
Page 12: Using The Device
2. Setting the Date and Time Set the monitor to the correct date and time before taking a measurement for the first time. When the year flashes, press MEM button each time and the year will increase 1, you could choose from 2018 to 2099.
Page 13 2. Apply the arm cuff to your left upper arm. The bottom edge of the arm cuff should be 2 to 3 cm above the elbow. Cuff should be positioned on the upper arm with the air tube pointing towards your hand. 3.
Page 14: How To Sit Correctly
The blood pressure can differ between the right arm and the left arm, and the measured blood pressure values can be different. SMARTRO recommends to always use the same arm for measurement. If the values between both arms differ substantially, please check with your physician which arm to use for your measurement.
Page 15: Taking A Measurement
3.3 Taking a Measurement The monitor is designed to take measurements and store the measurement values in the memory for 2 people using USER ID 1 and USER ID 2. 1. Press the START/STOP button. The arm cuff will start to inflate automatically. When the device detects the signal, the heart symbol ♥...
Page 16: Using The Memory Function
To stop a measurement, press the START/STOP button once to release the air in the arm cuff. R e m a i n s t i l l a n d d o n o t t a l k w h i l e t a k i n g a measurement.
Page 17: Error Messages And Troubleshooting
4. Error Messages and Troubleshooting 4.1 Error Messages Error Cause Solution Display Weak signal a. Wrap the cuff properly. or pressure b. Repeat the measurement change with correct operation. suddenly a. When near cell phone or other high radiant device, the External strong measurement will be failed.
Page 18: Troubleshooting
4.2 Troubleshooting Problem Cause Solution Arm cuff is Apply the arm cuff tighter. applied too Refer to section 3.1. loosely. Movement or Remain still and do not measurement talking during talk during measurement. result is measurement. Refer to section 3.3. extremely high Remove any clothing (or low).
Page 19: Maintenance And Storage
Other Replace the batteries with new problems. ones. If the problem continues, contact SMARTRO customer service team. 5. Maintenance and Storage 5.1 Maintenance To protect your device from damage, please observe the following: Do not use petrol, thinners or similar solvents to clean the device.
Page 20: Storage
5.2 Storage 1. Unplug the air plug from the air jack. 2. Gently fold the air tube into the arm cuff. Note: Do not bend or crease he air tube excessively. 3. Place the monitor and the arm cuff in the storage case. Do not store the device in the following situations: When the device is wet.
Page 21 Measuring Upper arm localization Pressure 0-299 mmHg Measurement range Pulse 40-199 beats/min Pressure ±3mmHg Accuracy Pulse ±5% of display reading Pressure 3 digits display of mmHg Pulse 3 digits display LCD indicator Memory/Heartbeat/Low Symbol battery Memory 90 measurements with date and time for function each user (1 and 2) 4xAAA alkaline battery 6V or optional...
Page 22 Main unit Approx. 230g without batteries weight Main unit size L107mm x W104mm x H65mm Main unit 10.000 times under normal use lifetime Could be used for 300 times for normal Battery life condition Package Monitor, Arm cuff, Instruction manual, contents Storage case Temperature...
Page 23 Symbols description Applied part- Type BF Degree of protection against electric shock (leakage current) Manufacturer Serial number Authorized Representative in the European Community CE Mark: Conforms to essential requirements of the Medical Device Directive 93 / 42 / EEC DISPOSAL: To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this product from...
Page 24 EMC Information Guidance and manufacturer's declaration -Electromagnetic immunity The U80H is intended for use in the electromagnetic environment specified below. The customer or the user of the U80H should ensure that it is used in such an environment. Electromagnetic IEC 60601...
Page 25 70% UT interruptions. It is input lines (30% dip in (30% dip in recommended that IEC 61000-4-11 the Model: U80H be for 25 cycles for 25 cycles powered from an uninterruptible power <5% UT <5% UT supply or a battery.
Page 26 Environment-guidance Portable and mobile RF communications equipment should be used no closer to any part of the Model: U80H, Conducted including cables, than the 3 Vrms recommended separation 150 kHz to IEC 61000-4- distance calculated from the...
Page 27 d=1.2 √p 80MHz to 800MHz d=2.3 √p 80MHz to 2.5GHz Here P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer and d is the recommended separation distance in meters (m).Field strengths from fixed RF Radiated RF 3 V/m transmitters, as determined...
Page 28 RF transmitters, an electromagnetic site survey should be considered. If the measures field strength in the location in which the Model: U80H is used exceeds the applicable RF compliance level above, the blood pressure monitor should be observed to verify normal operation.
Page 29: After-Sales Support
Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. 7. After-sales Support Thank you for buying SMARTRO product. If your device fails to work despite these measures or your experience with us was less than perfect in anyway, please contact us via following methods.
Page 30: Some Useful Information About Blood Pressure
8. Some Useful Information about Blood Pressure What is Blood Pressure? Blood pressure is the pressure exerted the arteries. The systolic blood pressure value represents the blood pressure produced by contraction of the heart muscle. The diastolic blood pressure value represents the blood pressure produced by relaxation of the heart muscle.
Page 31 According to blood pressure classification by the WHO / ISH.SYS lower than 100mmHg (13.3kPa) is considered as hypotension. Blood pressure types...
Page 32 What is Arrhythmia? Arrhythmia is a condition where the heartbeat rhythm is abnormal due to flaws in the bio-electrical system that drives the heartbeat. Typical symptoms are skipped heartbeats, premature contraction, an abnormally rapid (tachycardia) or slow (bradycardia) pulse. Why is it a Good Thing to measure Blood Pressure at Home? Many factors such as physical activity, anxiety, or the time of the day, can influence your blood pressure.
Page 33: Manufacturer Information
How is Hypertension related to Stroke? Hypertension (high blood pressure) is the key risk factor for Stroke. It is estimated that amongst hypertensive patients, effective treatment would prevent 1 in 4 hemorrhagic strokes (bleeding around the brain). Hypertension guidelines have endorsed the use of Home Blood Pressure.
