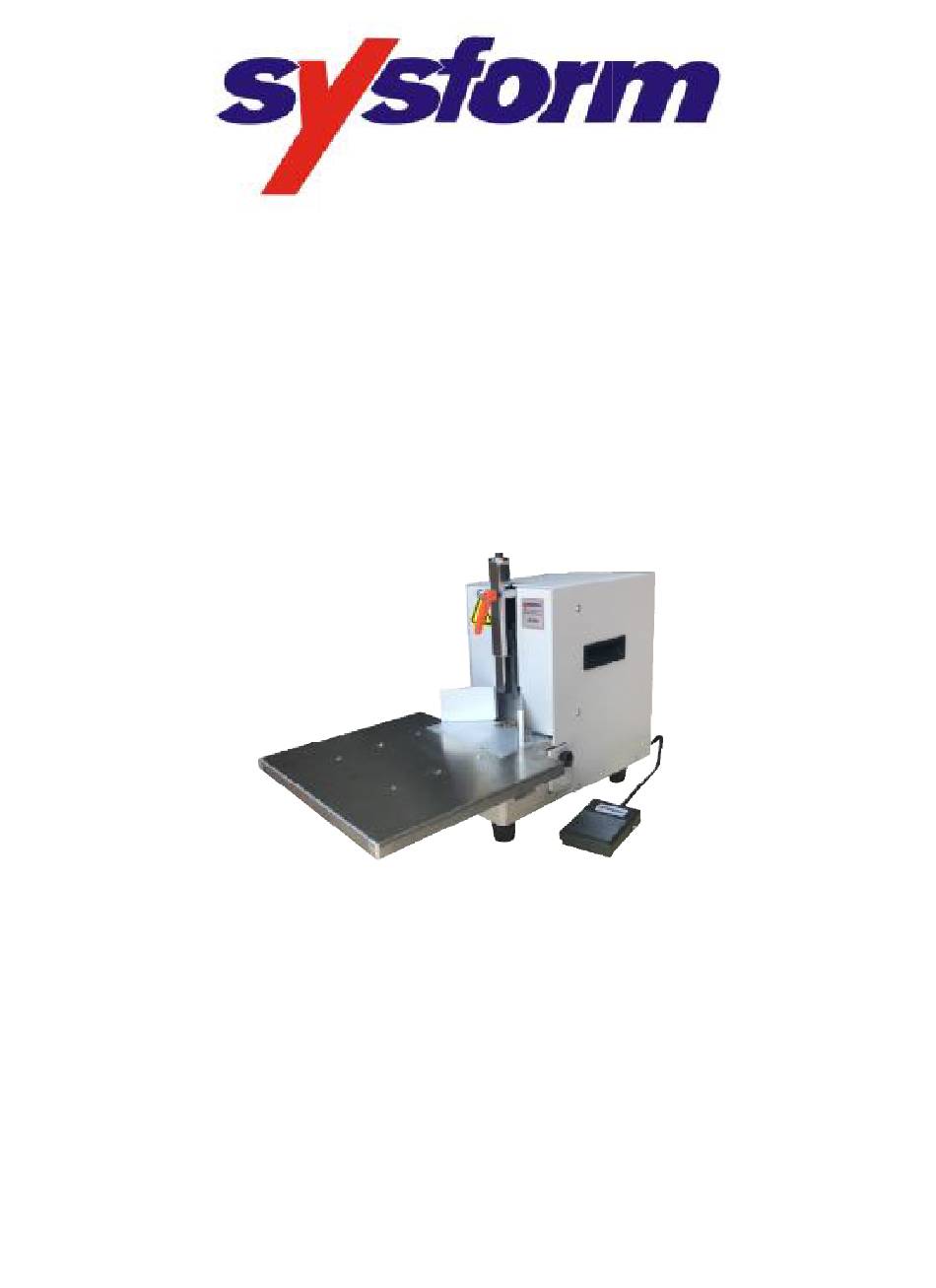

- Page 1 S-500 Electric Corner Cutter Electric Corner Cutter OPERATING MANUAL OPERATING MANUAL...
- Page 2 Safety Please use this machine carefully, do not put your hand beneath the blade to avoid hurt and contingency. Please note the followings when you use this machine: Place: The machine is approximate 21Kg.please fix the machine in a flat and sturdy and well-ventilated place.
- Page 3 1. Unpack and check After you open the box, please check the machine and attached parts, if you find any damage or something lost, please contact us immediately. a. Machine 1 set b. Manual 1 pc c. Hexagon wrench 3 pc(3,4,5mm) d.
- Page 4 1. Names and Functions A．Clamp B．Screw for adjusting clamp C．Side lay D．Lower die E．Inching button F. Foot pedal G. Power switch H. Waste box Upper blade...
- Page 5 2. Operation Instructions l Place the machine on ttop of a sturdy working bench Make sure the waste box is in position l Loosen the screw at right side of the working table. l Directly plug in the expanding table and tighten the screw a bit.
- Page 6 Plug foot pedal and power cord into the socket l Press down the inching button to let the upper blade slowly go down intermittently to touch the lower blade, check if the blade is if the blade is ready to work. l Loosen the screw to adjust position of the clamp.
- Page 7 l Use left and right edges of the stacker to knock the stack of sheets in parallel till sheets are neat. l Use the stacker by left hand to push the stack of sheets to close right and left side lays.(keep finger out of the clamp) l Press down the foot pedal by right hand for...
- Page 8 3. Changing blade l Switch the machine off l Remove the clamp l Remove the left and right side lays l Loosen the two lower die fixing screws. Take away the lower die...
- Page 9 l Loosen the four fixing plate screws. l Replace a new upper blade back into the original position and make sure screws fasten tightly. l Switch the machine on then press the inching button to have the upper blade cut down to the lowest point.
- Page 10 l As shown in the photo, left hand push pushes the lower die to press the upper blade slightly then fasten then fasten two screws. l After replacing the blade, the side lays the side lays must be recalibrated 4. Calibration for side lay l Switch the machine on then press the inching button to have the upper...
- Page 11 l Push the left and right side lays to close the left and Push the left and right side lays to close the left and right edges of the calibration gauge then fasten their right edges of the calibration gauge then fasten their fixing screws.
- Page 12 l Switch the machine off, unplug the power cord. l Remove the cover, lubricate sliding motion mechanism. l Adjust sliding gap every 90 days for using frequently, for not often use every 180 days. l Loosen the two screws of lower die, , loosen the two screws of left sliding bar then let the sliding bar clamp ing bar then let the sliding bar clamp...
- Page 13 7. warning n The machine shall not be operated by two operators at the same time. n The machine shall be well-connected and well maintained. If you want to maintain machine, please disconnect the machine from power.
