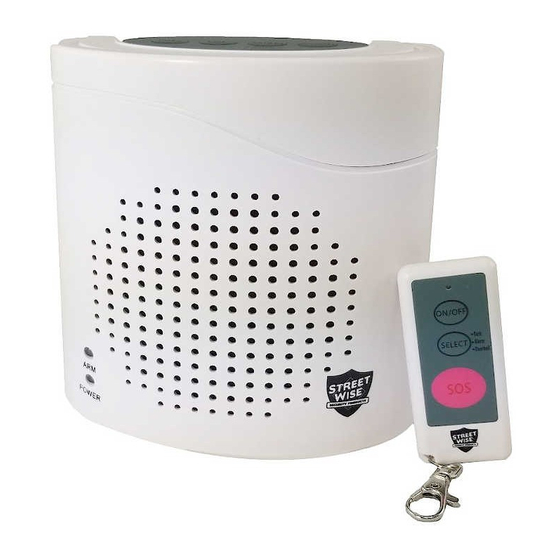

Virtual K9 Barking Dog Alarm Instructions

INTRODUCTION

The Virtual K9 Barking Dog Alarm by Streetwise Security Products uses microwaves to "see" through walls and detect someone

approaching your home or business. It can activate an alarm or the sound of a barking dog to scare away an intruder. It can also be

used as an automatic doorbell to alert you to visitors approaching your home or customers approaching your business. There is also

an SOS button on the remote control that will instantly sound an alarm in case of an emergency.

1. Do not expose unit to direct sunlight or rain; for indoor use only.

2. Keep the unit away from heat sources such as heaters and stoves as this could affect the detection range or cause the unit to

turn on randomly.

3. The unit monitors 360 degrees but the largest detection range is on the backside. Therefore, when monitoring the front

of your home the backside should face toward the outside wall and the front (with speaker holes) should face inward

toward the room.

1. Long range (50+ feet) remote control works through walls.

2. Detects motion through walls.

3. Three different modes: doorbell (chime), barking dog, or alarm.

4. Eight volume levels can be adjusted using the button on top of the unit. Maximum volume is about 120dB.

5. Remote control can be used to arm/disarm, change sound mode, or activate an instant alarm (SOS).

6. Operates on AC power (adapter included).

7. Battery backup will power the unit for about 10 hours.

The Virtual K-9's microwaves can penetrate through dry wall, wood, plastic, glass, brick, vinyl siding and cement (7 inches or less in

thickness). It cannot penetrate through metal.

SWVK9

Revised 4/23/2021

Table of Contents

Do you have a question about the Virtual K9 and is the answer not in the manual?

Page 1 INTRODUCTION The Virtual K9 Barking Dog Alarm by Streetwise Security Products uses microwaves to “see” through walls and detect someone approaching your home or business. It can activate an alarm or the sound of a barking dog to scare away an intruder. It can also be used as an automatic doorbell to alert you to visitors approaching your home or customers approaching your business.
Page 2 The diagram below illustrates the detection range based on open space with no obstructions. As you can see the longest detection range is on the back side of the unit so this side should face toward the area you want to monitor. Detecting through a wall will shorten the “open space”...
Page 3 OPERATION 1. When the batteries are installed or the power adapter is connected, the “POWER” LED and “ARM” led will illuminate. 2. Press the Select button on either the remote control or the top of the unit to choose barking, alarm, or doorbell. 3.
