CABINET DOORS LID STAY

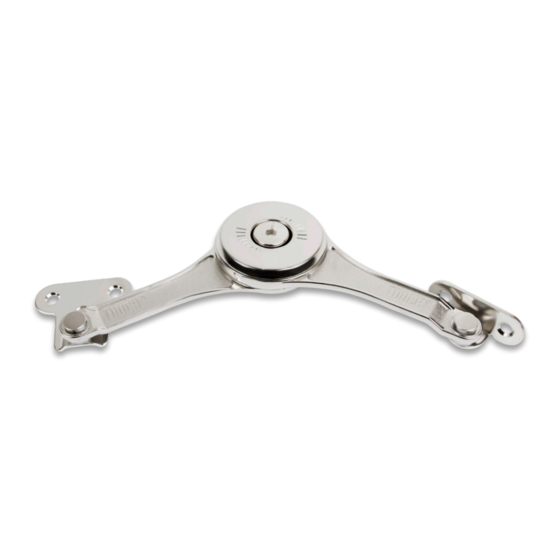

HEAVY DUTY FREE STOP LID STAY
●
Installation
Adjusting screw
Fix always the brake leaving the adjusting
screw always inside the cabinet.
170
●
Basic spec
●
Cabinet internal depth : Min. 150 mm
●
Cabinet internal height : Min. 255 mm
●
Edge distance : 37 mm
●
Opening angle : 75°, 90° or 110°
●
Arms material : Zinc alloy
●
Brackets material : Cold - rolled steel
Adjust with allen key friction force according
to flap door according to flap door dimension
and weight using the adjusting screw.
TCH-313012 SERIES
●
Finishing : Nickel plated
●
Mounting : Could be installed for
one side ( left or right )
●
Installation : Wood screws
●
Supplied with : Lid stay, Wood screws,
Allen key and Instruction manual
Advertisement
Summary of Contents for Touch TCH-313012 Series

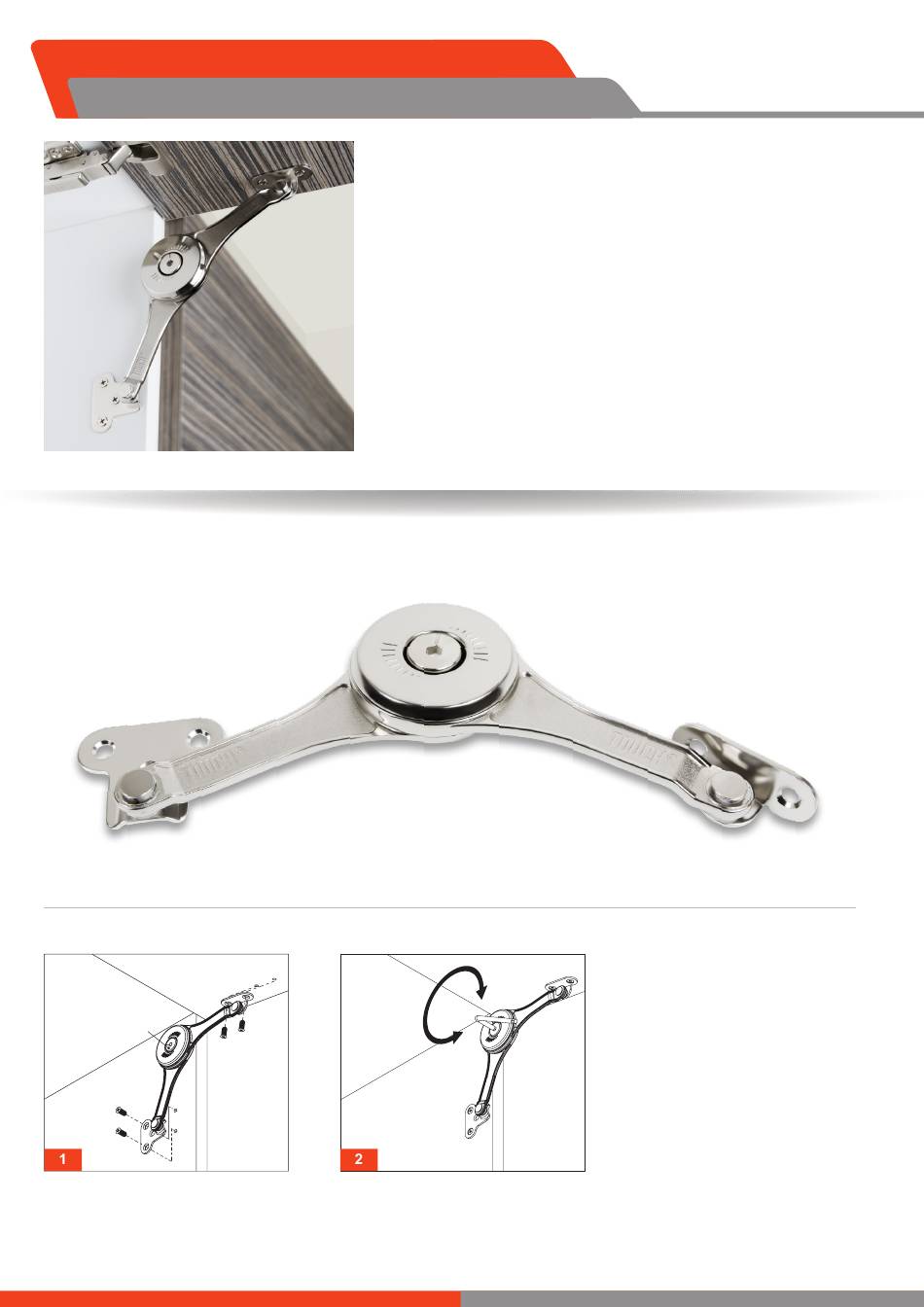

- Page 1 CABINET DOORS LID STAY HEAVY DUTY FREE STOP LID STAY TCH-313012 SERIES ● Basic spec ● Cabinet internal depth : Min. 150 mm ● Finishing : Nickel plated ● Cabinet internal height : Min. 255 mm ● Mounting : Could be installed for one side ( left or right ) ●...
- Page 2 ● Specification Maximun opening angle C Size (A) Size (B) 75° 164mm 126mm 90° 132mm 119mm 105° 132mm 87mm Left Right ● Uses Brake in opening Brake in closing...
