Summary of Contents for Cypress Envirosystems WGR

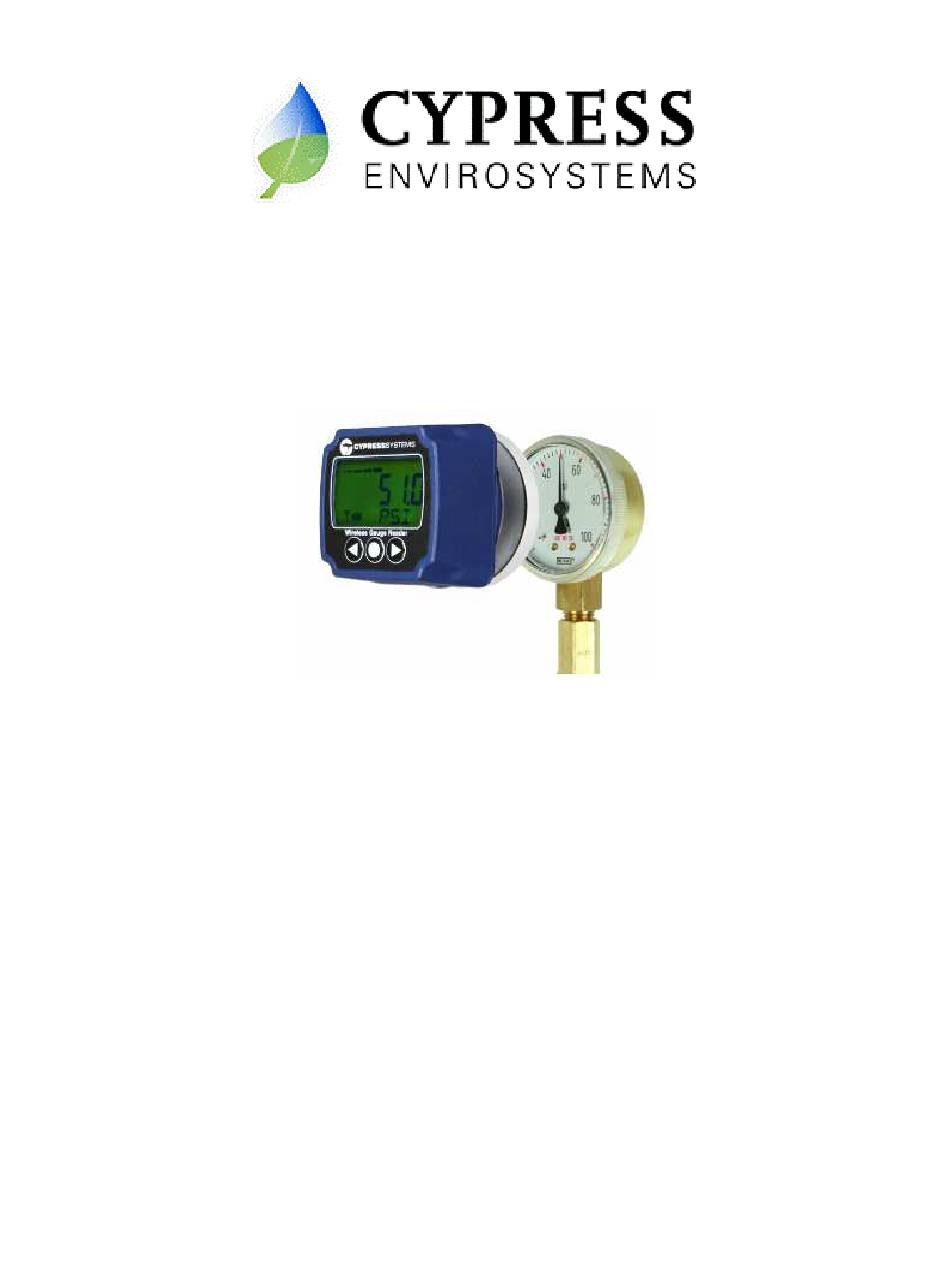

- Page 1 Wireless Gauge Reader User Manual Doc # 152-10101-01 Revision 1.2 May 2009...
- Page 2 The inclusion of Cypress Envirosystems’ product in mission or safety critical system applications implies that the manufacturer assumes all risk of such use and in doing so indemnifies Cypress Envirosystems against all charges. In no event is Cypress Envirosystems liable to anyone for any indirect, special or consequential damages.
-
Page 3: Table Of Contents
Configuration ......................10 Turning the WGR On and Off................10 Setting Sampling Rates ..................10 Accessing Node Identification Data ..............11 Accessing Informative Data Parameters in the WGR ........... 11 Configuration and Setup Menus................12 Care and Maintenance...................... 12 Calibration......................12 Battery Life...................... -
Page 4: Introduction
The Cypress Envirosystems Wireless Gauge Reader, WGR, is designed to read manual gauges and transmit the data to a PC or data acquisition system. The WGR is designed to be non-invasive. It is attached over the face of an existing analog gauge, as shown below. Each WGR comes with an adapter that is sized for the gauge it is reading. -
Page 5: Sample Collection
For example, a gauge could be mounted sideways on a system, but the WGR could be positioned upright for easier reading. Once the WGR is in position, it is secured in place for calibration. The range of the gauge, units of measure, and any offsets are entered into the WGR. The WGR is calibrated by a trained installation technician, and ready for use. -
Page 6: Cypress Envirosystems Monitoring System
System. This system can be setup one of two ways: Related Products The WGR sends data to the Cypress Envirosystems Blue Box Server, which stores the data in a SQL server. The WGR can communicate directly to the Blue Box Server, or through Wireless Range Extenders. -
Page 7: Wgr Lcd Menu Flow Chart
WGR LCD Menu Flow Chart The following flow chart displays all the menu options. Normal Sample Mode 3 3 3 3 ..Exit Exit Exit Exit Exit Fast Sample Mode Medium Sample Mode Data Display Image Capture Mode... -
Page 8: Setup
1. Press “●” to take a reading. 2. A red light at the back of the WGR should flash, and the SAMPLE icon on the LCD will briefly flash. 3. The display will still most likely indicate an error (small ERROR icon), since the WGR has not yet been calibrated for a gauge. - Page 9 VHB adhesive bond, and may weaken the Dual- Lock bond. 2. Ensure that the proper size mounting adapter is fastened to the WGR main housing by holding it up to the gauge or panel mount adapter collar.
-
Page 10: Operation
Routine data collection Whenever the WGR is on, it samples based on the routine data collection rate. This rate is between 0 and 65535 seconds, or approximately 18 hours. This value is defined by the user, and can be changed at the WGR. -
Page 11: Accessing Node Identification Data
Accessing Node Identification Data Each WGR has a unique NODE ID identifier. This NODE ID is a value between 0 and 255 and is used to identify the data within the database and the web interface. The NODE ID is assigned when the WGR is configured. -
Page 12: Configuration And Setup Menus
Battery Life Each WGR comes with two lithium batteries. Battery status can be monitored on the LCD of the WGR, or through the user interface connected to the Blue Box Server. Battery change-out must be performed by a qualified service technician. -
Page 13: Technical Specifications
(1) If you think the WGR has been moved or knocked out of place, contact a qualified service technician to re-calibrate the WGR. (2) If the WGR is installed on equipment that is prone to vibration, the WGR may have slipped out of place. Contact a qualified service technician to re-secure and re-calibrate the WGR. -
Page 14: Product Disposal
Weight 0.33lbs (150g) including batteries 9.0 Product Disposal The WGR is recycled by Cypress Envirosystems. Contact a service technician or Cypress Envirosystems headquarters to recycle the WGR. See Section 10.0, Support, for details. 10.0 Support For additional support, including configuration, maintenance, and troubleshooting, please contact us.
