A Wheel Rotator is needed to operate the Effect Wheels.
ASSEMBLY INSTRUCTIONS
1.

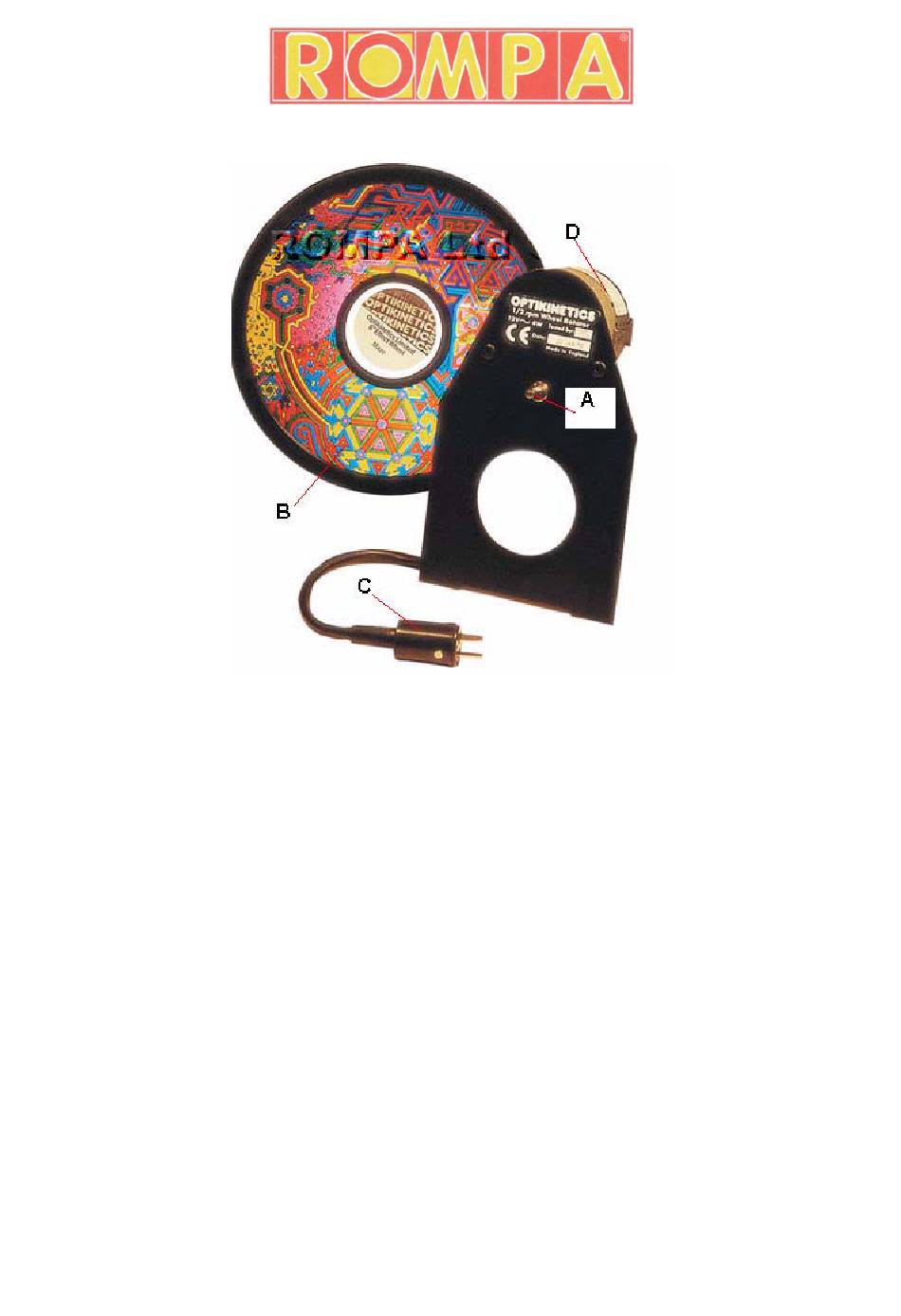

Slide the back of your Effect Wheel (not included) e.g. B onto the Wheel Rotator spindle A.
The front is flat and has a circular label in the middle. The front is shown above.
Earlier Effect Wheels incorporated a small screw – this had to be tightened against the flat
edge of the spindle. This screw is no longer required.
2.
Slot onto either gate on the projector. If slotted into the front gate, the Wheel Rotator will
turn in a clockwise direction. If it is slotted into the rear gate, it will turn in an anti-clockwise
direction.
3.
Plug into the socket on the side of the projector. One of the pins of the two-pin plug C is
wider than the other so the Rotator can only be plugged in one way.
SPECIFICATION
Motor D: 12V 50Hz
13170: 1 revolution in 2 minutes
16570: 1 revolution in 6 minutes
On nécessite une roue rotative pour faire tourner les roues à effets.
WHEEL ROTATOR 13170/16570
ROUE ROTATIVE 13170/16570
Copyright ROMPA® Ltd
WHEEL ROTATORS 13170, 16570, KH 4.07
