Instructions manual 1 - 16 pages CORAL 1050 - 1063 - 1080 FULLY RETRACTABLE OIL-HYDRAULIC BOLLARDS. POST DIAMETER 100 mm HALL MAGNETIC LIMIT SWITCH EN 13241 EN 12453 EN 12445 the gate opener...
CE DECLARATION OF CONFORMITY of the manufacturer: Meccanica Fadini snc (Via Mantova, 177/A - 37053 Cerea - VR - Italy) declares under own responsibility that: Coral complies with the 2006/42/CE Machinery Directive, and also that it is sold to be installed in an “automatic system”, along with original accessories and components as indicated by the manufacturing company.
Page 3
The oil-hydraulic bollards CORAL 1050 (500 mm height, with or without LEDs), CORAL 1063 (600 mm height, with or without LEDs), CORAL 1080 (800 mm height, with or without LEDs) are tted with posts made of rust-treated steel, 100 mm diameter.
Page 4

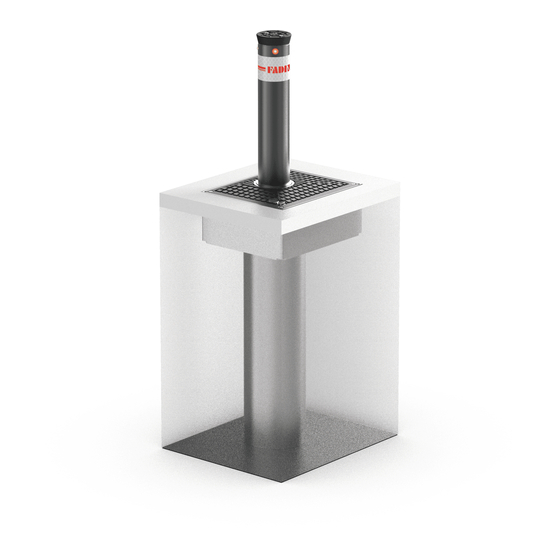

CORAL fully retractable oil-hydraulic bollard PRELIMINARY OPENING OF ALL FUNCTIONAL COMPONENTS Start by removing the cover plate to reveal the operator and separate the individual components, with the aid of a hoist (Pic. 2): this makes it easy to extract the internal piston and hydraulic main unit container unit. IMPORTANT: TAKE CARE NOT TO TEAR OR CUT WIRES.
Page 5
CORAL fully retractable oil-hydraulic bollard ELECTRICAL LAYOUT OF THE INSTALLATION To check that the mains supply and voltage to the electric motor is 230 V at 50 Hz. The power supply to the operator’s built-in motor must be made using electricity cables with a 1,5 mm² section for a maximum distance of 50 metres.
Page 6
CORAL fully retractable oil-hydraulic bollard ARRANGING THE HOUSING 400 mm Ø 60 Ø 195 Possible Soakaway pebbles submersed pump Check soil natural permeability: 50 liters of water must be able to soak away in not longer than 30/40 minutes. Otherwise provide a pipe to allow rain water to ow either into the sewage system or a sump well equipped with a submersed pump.
Page 7
CORAL fully retractable oil-hydraulic bollard PLACING THE TRAFFIC CONTROL POST INSIDE THE HOUSING Before performing this operation, wait for the housing to be secured rmly in place. Do not commence until the concrete has set and the electric wire pipe has been secured and covered with soil. •...
Page 8
CORAL fully retractable oil-hydraulic bollard MAGNETIC LOOP PREPARATIONS IMPORTANT: make sure that no other electro-magnetic sources are located on or under the ground near the installation to prevent interference or any affecting action with the magnetic loops of the vehicle detecting device if installed or with any other electronic equipment included in the system for commanding and controlling operations.
Page 9
CORAL fully retractable oil-hydraulic bollard ELECTRICAL CONNECTIONS TO THE CONTROL BOARD Coral with LED lights 55 56 20 µF ELPRO S40 11 12 13 16 17 18 22 23 52 53 52 53 CORAL bollard with HALL STABILIZER limit switches FINECORSA EFFETTO HALL - cavo blu HALL LIMIT SWITCHES...
Page 10
CORAL fully retractable oil-hydraulic bollard VERSION OF CORAL WITH SOLENOID VALVE In the version of CORAL with solenoid valve no manual overriding action is needed, and in case of power failure the post descends automatically ush with pavement level. To enable the solenoid valve to operate properly, the electric wires labelled “ELETTROVALVOLA - Solenoid valve”...
Page 11
Working temperature -20 °C +80 °C Absorbed current 1,8 ÷ 3,5 A (6 A) Motor revolutions 2.800 rpm Oil type Oil Fadini - Item 708L Capacitor 20 µF Oil reservoire 0,7 liters Total weight (without oil) 7 kg Service mode...
Page 12
Meccanica Fadini is not liable for any possible damages derived from incorrect use or from any use not indicated in this manual, furthermore it is not answerable for malfunctioning caused by the use of materials or accessories not approved by the company itself.
NOTE WELL: this document must record any ordinary and extraordinary services including installation, maintenance, repairs and replacements to be made only by using Fadini original spare parts. This document, for the data included in it, must be made available to authorized inspectors/officers, and a copy of it must be handed over the end user/s.
GUIDANCE FOR PROPER USE (for the end user) MAINTENANCE OPERATIONS FOR ORDINARY ROUTINE MAINTENANCE OF FADINI AUTOMATIC BOLLARDS (EVERY SIX MONTHS) The standard maintenance routine sequence is as follows: • Clean the ground cylinder and suck all material settlements.
