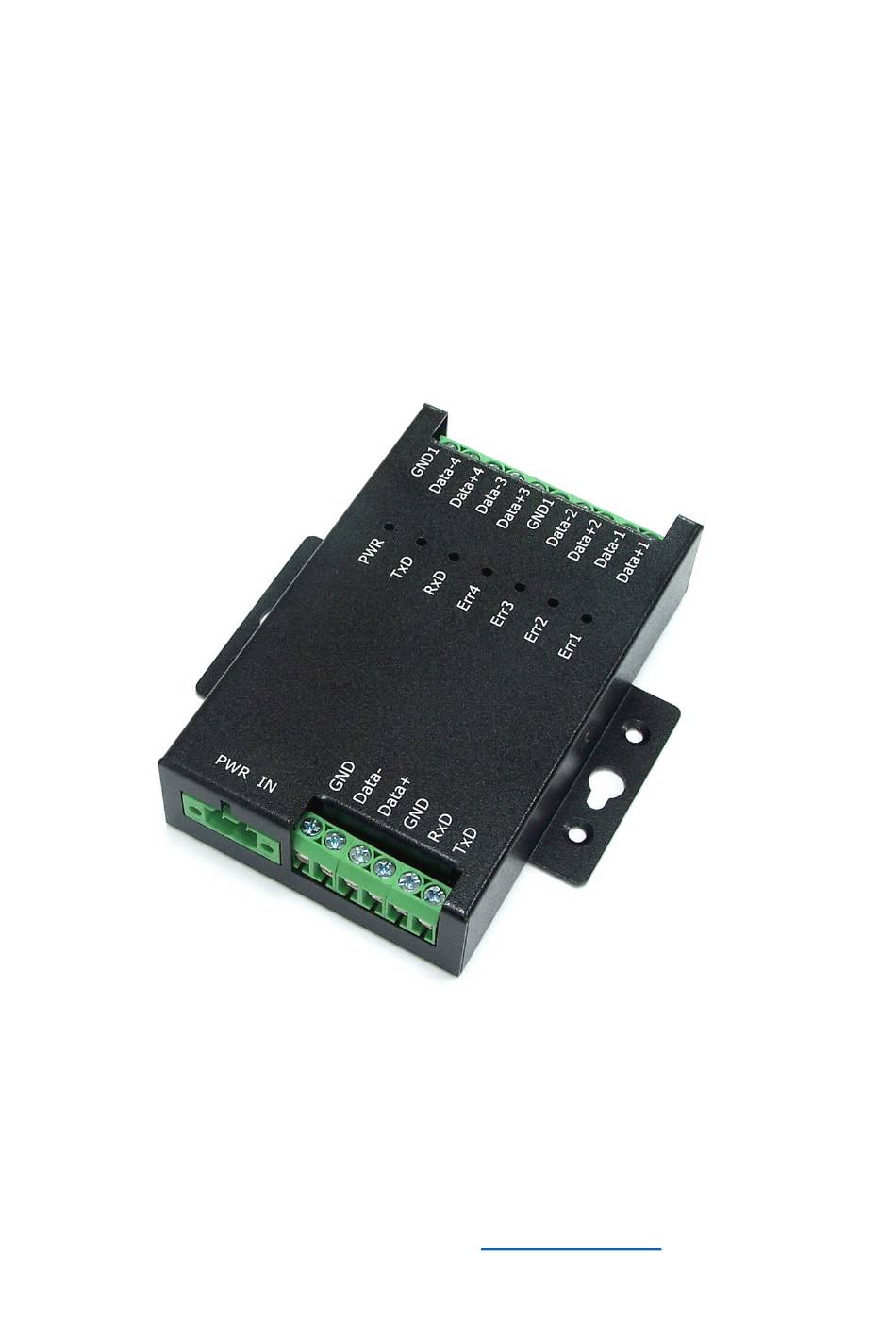

- Page 1 SER-4485-SI-M USER’S MANUAL 2019 Edition Titan Electronics Inc. Web: www.titan.tw...
- Page 2 TITAN Electronics Inc. Trademarks TITAN and the logo is a registered trademark of TITAN Electronics Inc. in Taiwan. Microsoft, Windows, Windows XP, Windows Vista, Windows Server, Windows 7, Windows 8, Windows 10 are trademarks of Microsoft Corporation. All other trademarks and brands are property of their respective owners.
-
Page 3: Table Of Contents
Contents INTRODUCTION ......................3 FEATURES ........................4 SPECIFICATIONS ......................5 HARDWARE SETTINGS....................6 Block Diagram of SER-4485-SI-M ................6 Installation ......................... 7 PIN-OUT INFORMATION ....................9 Terminal Block (TB3) Pin-out ..................9 Terminal Block (TB1) Pin-out ..................9 APPLICATIONS ......................10 1. -
Page 4: Introduction
RS-485 ports to ensure reliable operation. The SER-4485-SI-M 4-Port RS-485 hubs can be added to RS-485 network to increase the maximum nodes up to 512 nodes of RS-485 devices and to increase the transmission distance more than 1.2km with stable and reliable performance. -
Page 5: Features
FEATURES • Industrial-grade 4 port RS-485 hub/splitter/repeater with rugged metal case • Isolates and protects RS-485 devices from a RS-485 bus • Electrical isolation up to 3000VDC from RS-485 upstream port to RS-485 downstream port • Suitable for DIN-rail mounting •... -
Page 6: Specifications
SPECIFICATIONS Interface Ports Input (upstream) 1 RS-485 port (Data+, Data-) or 1 RS-232 port (TxD, RxD, GND) Output (downstream) 4 RS-485 ports (Data+, Data-) Transmission Media 2P twisted-pair or shielded cable Transfer Distance 1.2km at 9.6kbps 400m at 115.2kbps Max. Devices Supported 128 devices each channel Speed 300bps to 230.4kbps... -
Page 7: Hardware Settings
HARDWARE SETTINGS Block Diagram of SER-4485-SI-M... -
Page 8: Installation
• For converting RS-232 to RS-485, connect the data cable to TxD, RxD and GND signals in upstream ports of SER-4485-SI-M. You need to connect the TxD pin to an external RS-232 TxD signal (pin3 of DB9), the RxD pin to an external RS-232 RxD signal (pin2 of DB9) and the GND pin to external RS-232 GND pin (pin5 of DB9). - Page 9 485 Bus1, Err2 the RS-485 Bus2, and so on. The SER-4485-SI-M power input is designed with a diode bridge circuit. You don’t need to care the input DC power polarity, and you can also use an AC to AC 9V ~ 48V power adapter for SER-4485-SI-M.
-
Page 10: Pin-Out Information
PIN-OUT INFORMATION Terminal Block (TB3) Pin-out The following are the connector pin-outs for 6-pin terminal block connector. Pin Number Pin Type Description 1 TxD Input Receive data from RS-232 TxD signal 2 RxD Output Send data to RS-232 RxD signal 3 GND Ground GND: signal ground... -
Page 11: Applications
APPLICATIONS 1. Connect to a RS-232 port of computer The SER-4485-SI-M can convert RS-232 to RS-485 interfaces for extension to 4 highly reliable RS-485 interfaces. 2. Connect to existing RS-485 bus The SER-4485-SI-M can connect to existing RS-485 bus for extension to 4 highly reliable RS-485 interfaces, and as many as 128 RS-485 hubs are supported on each RS- 485 bus. -
Page 12: Connect To A Rs-232 Port For More Rs-485 Devices
RS-485 interfaces. 4. Connect to existing RS-485 bus for more RS-485 devices The SER-4485-SI-M can connect to existing RS-485 bus for extension to more highly reliable RS-485 interfaces, and as many as 128 RS-485 hubs are supported on each RS-...
