Summary of Contents for ALCO 4000 Series

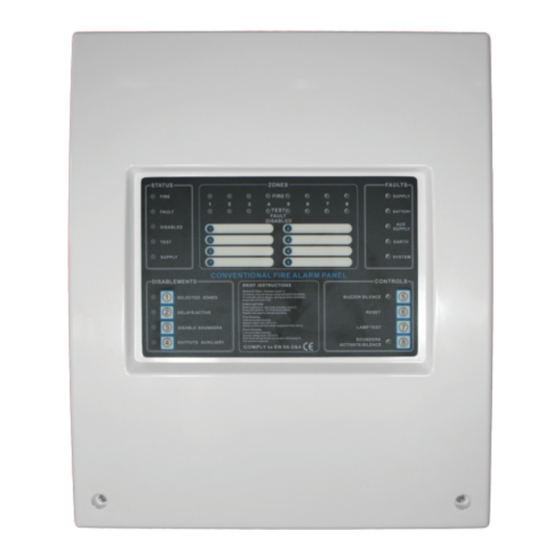

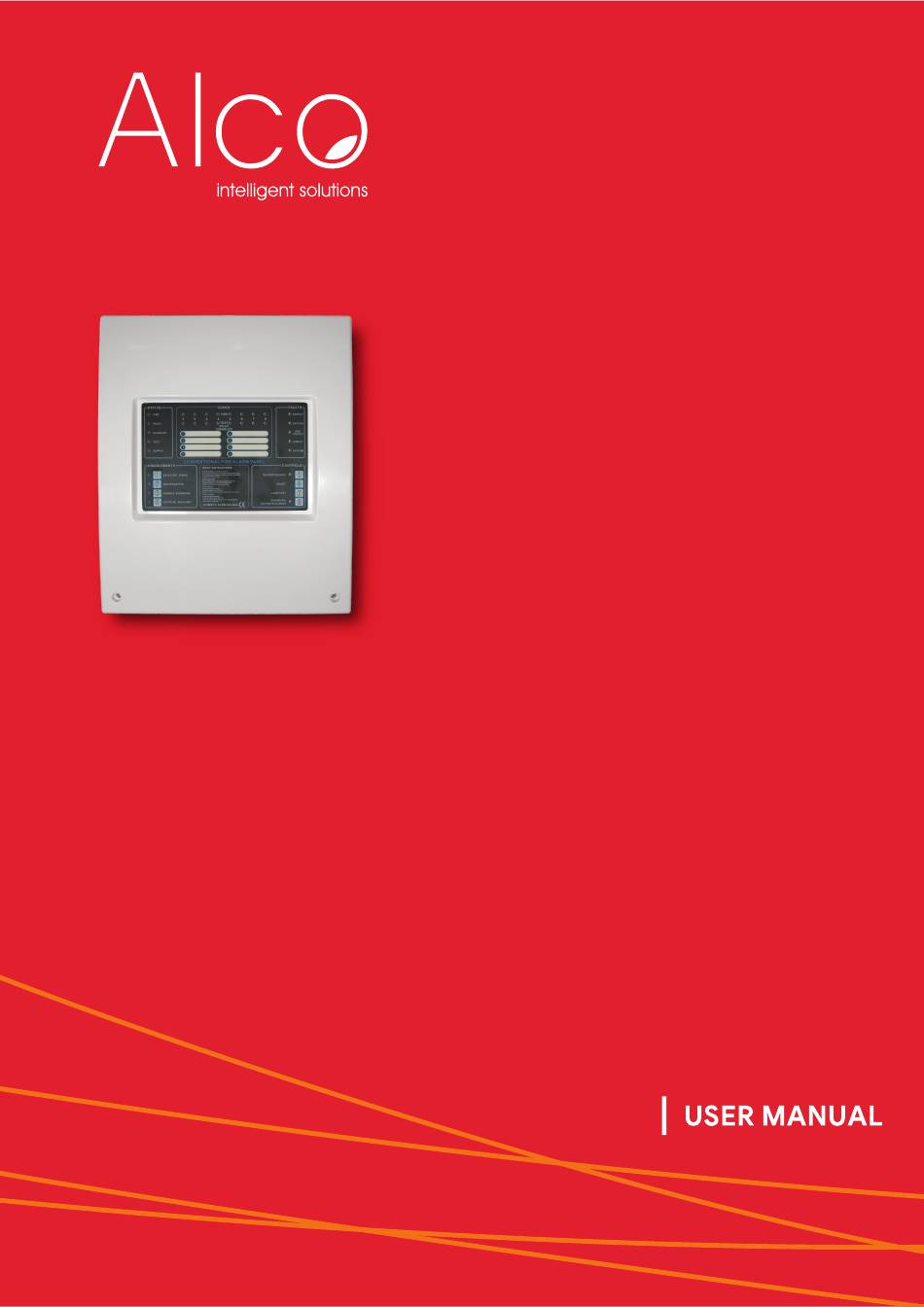

- Page 1 CFS-FAP 4000 SERIES CONVENTIONAL - FIRE ALARM CONTROL PANEL...
- Page 2 CONTENTS CONTROL PANEL DESCRIPTION - Access Levels Access Levels 1 Access Levels 2 Access Levels 3 Reset Passcodes to Factory Default Settings - CONDITIONS Alarm Condition Actions During The Alram Condition Fault Condition Actions During The Fault Condition Disable Condition Test Condition In Activity Timeouts - TROUBLE SHOOTING GUIDE...
- Page 3 CONVENTIONAL FIRE ALARM SYSTEM intelligent solutions Building Name Building Address Installation Company Company Contact Date Installed Service Company Contact intelligent solutions...
-
Page 4: Control Panel Description
CONVENTIONAL FIRE ALARM SYSTEM intelligent solutions 1. CONTROL PANEL DESCRIPTION STATUS Indicates the alarm condition. Alarm zone information will also be displayed on the ZONE indicators. FIRE Indicates the fault condition. Fault information will be displayed on the zone indicators or in the FAULT faults area of the control panel, depending on the source of the fault. - Page 5 CONVENTIONAL FIRE ALARM SYSTEM intelligent solutions CONTROL ACKNOWLDGE Acknowledges a new alarm or fault event and silences the internal sounder. The LED will illuminate when a new condition occurs. INDICATOR TEST Illuminates all LEDs and activates the internal sounder. SILENCE Activates audio/visual alarm devices.
-
Page 6: Access Level
CONVENTIONAL FIRE ALARM SYSTEM intelligent solutions 2. ACCESS LEVEL Three access levels are used to operate or configure the control and indicating equipment. 2.1 ACCESS LEVEL 1 Access Level 1 provides open access to perform the following functions: - Acknowledge a new event and silence the internal sounder. - Override any active delays in the alarm condition. - Page 7 CONVENTIONAL FIRE ALARM SYSTEM intelligent solutions - Press ACKNOWLEDGE button to confirm the passcode (Note) The ACKNOWLEDGE LED does not flash during this process. If the passcode is correct: - The internal sounder will give a double short beep. - The SUPPLY LED will flash twice, pause, then repeat.If the passcode is incorrect: - The internal sounder will give a single long beep.
- Page 8 CONVENTIONAL FIRE ALARM SYSTEM intelligent solutions 2.3 ACCESS LEVEL 3 Access Level 3 is used to configure the control and indicating equipment and accesses the following functions. - Configuration of co-incidence detection - Setting delay timer - System Test - Setting delays Changes made at Access Level 3 affect the factory default settings and the operation of the system.
- Page 9 CONVENTIONAL FIRE ALARM SYSTEM intelligent solutions 2.3.2. CHANGE ACCESS LEVEL PASSCODE 3 The access level 3 passcode may be changed from the factory default setting. The access level 3 passcode cannot be the same as the access level 2 passcode. To change the passcode, take the following actions: - Enter access level 3.
-
Page 10: Alarm Conditions
CONVENTIONAL FIRE ALARM SYSTEM intelligent solutions CONDITIONS 3.1 Alarm Conditions When the control and indicating equipment enters the alarm condition, the alarm sounders and output modules will operate according to their configuration programming. The ZONES FIRE LED(s) The FIRE LED will flash. The internal will flash. - Page 11 CONVENTIONAL FIRE ALARM SYSTEM intelligent solutions - If the cause of the alarm condition was not a fire, enter access level 2 and press the RESET button to reset the fire detection and alarm system. - If the cause of the alarm condition has not cleared, the control and indicating equipment will re-enter the alarm condition.
- Page 12 CONVENTIONAL FIRE ALARM SYSTEM intelligent solutions 3.4. Actions During the Fault Condition After the control and indicating equipment enters the fault condition, take the following actions: - Press ACKNOWLEDGE to acknowledge the fault and silence the internal sounder. The FAULT LED will be on steady and the sounder will silence.
-
Page 13: Enable Functions
CONVENTIONAL FIRE ALARM SYSTEM intelligent solutions - In the alarm condition, delays can be disabled at Access level 1. - If there is an alarm waiting to be processed when the delays are disabled, the control and indicating equipment will immediately enter the alarm condition. - For the delays active disabled function, the zones must first be configured to enable the delay access level 3. -
Page 14: Device Test
CONVENTIONAL FIRE ALARM SYSTEM intelligent solutions 3.6.2. Device Test To re-enable a disabled function, follow the steps above and note that the relevant disablement LED indicator is off. - Enter Access Level 3. - Press INDICATOR TEST button. The TEST LED will flash and the ACKNOWLEDGE LED will flash. -
Page 15: Troubleshooting Guide
CONVENTIONAL FIRE ALARM SYSTEM intelligent solutions 4. TROUBLE SHOOTING GUIDE General Fault Indicator The FAULT indicator in the STATUS area of the display is always illuminated when ever the control and indicating equipment is in the fault condition. The General fault indicator is associated with a specific fault that will be indicated in the ZONES or FAULTS area of the display. - Page 16 CONVENTIONAL FIRE ALARM SYSTEM intelligent solutions 5. GLOSSARY AND REFERENCES The following terms are associated with the CFS-FAP non-addressable control panel. TERM DESCRIPTION REFRENCE Hierarchical levels to gain access to specific control Access EN 54-2, Control and and configuration functions. indicating equipment Levels When an event from an input device (e.g.
- Page 17 CONVENTIONAL FIRE ALARM SYSTEM intelligent solutions NOTES intelligent solutions...
- Page 18 CONVENTIONAL FIRE ALARM SYSTEM intelligent solutions intelligent solutions...
- Page 19 intelligent solutions...
