RASHA PROFESSIONAL PHOTON User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PHOTON
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PHOTON and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RASHA PROFESSIONAL PHOTON

Summary of Contents for RASHA PROFESSIONAL PHOTON

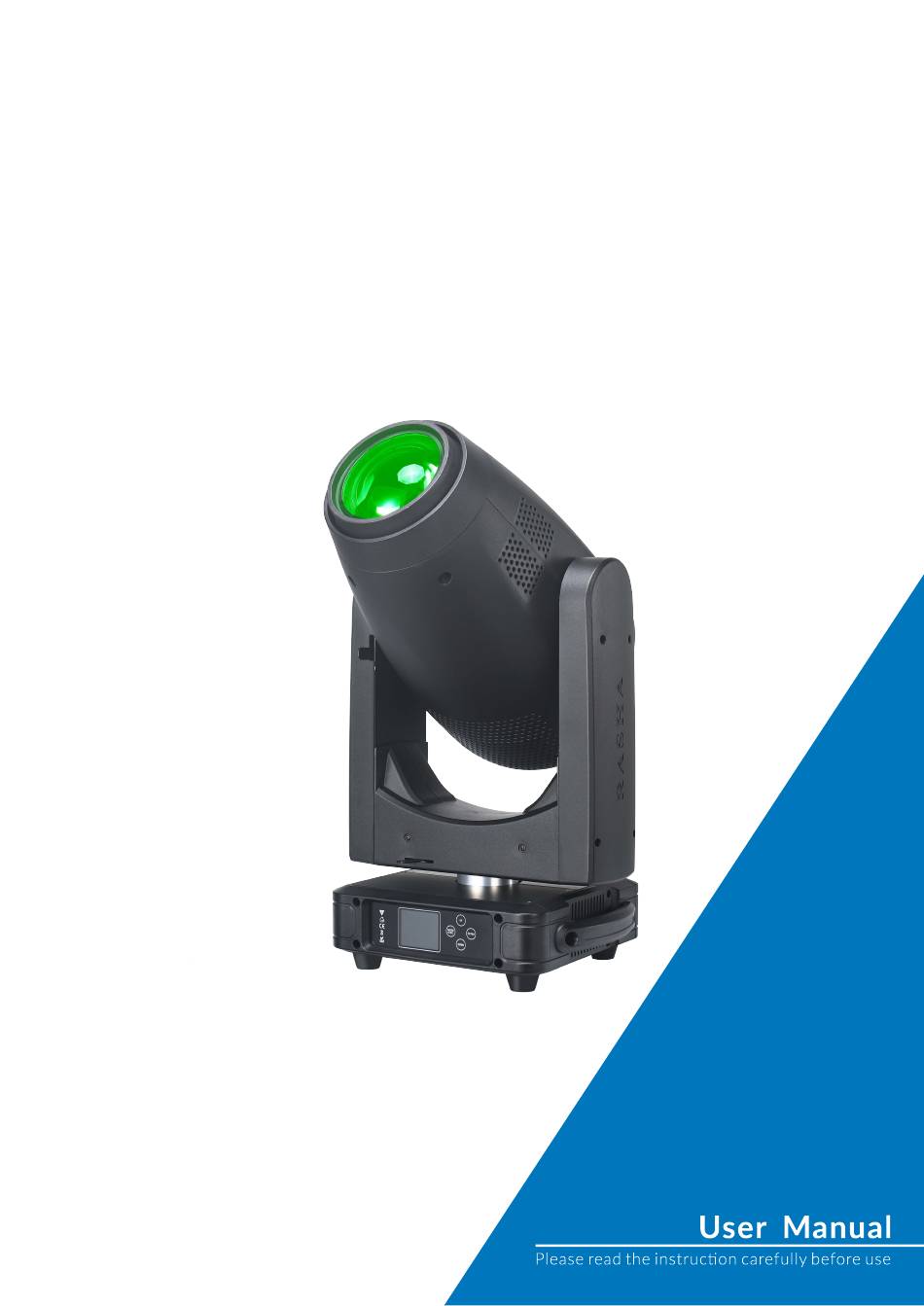

  • Page 1 PHOTON USER MANUAL...
  • Page 2 Summary 3-Introduction 6-Dispaly 10-Dimension 11-Installation instructions 12-DMX chart 19-Error mesages 20-Technical parameter 21-Illumination 22-gobos...
  • Page 3 However, if you notice a defect, immediately contact our factory before use. Failure to observe the safety, installation or assembly instructions contained herein, or any modification made to the Photon hybrid fixture will render the warranty null and void. Check that the supply voltage does not exceed the maximum authorized limit.

  • Page 4: Conditions Of Use

    Photon fixture is a moving-head luminaire equipped with LED light source intended for professional use (e.g., architectural, stage, television, theater, or museum lighting). Photon hybrid fixture has an IP20 protection rating. It is intended strictly for Condensation may indoor use. It must never be partially or fully submerged, even temporarily.

  • Page 5: Presentation And Features

    Do not use your 4600W LED profile before being familiar with these recommendations and do not allow unqualified personnel to handle the product. To transport your 460W LED fixture , we strongly recommend that you use the complete original packaging, including the dense protective foam inserts. If your 460W LED Profile is not being used for a long period, you should disconnect the luminaire from the power source.
  • Page 6 Display: To show the various menus and the selected functon. Buton: MENU To enter into move backward or leave the menu To go backward to move up in the menu DOWN To go to move down in the menu ENTER To perform the desired functons ETHERNET: Transfers fixture’s informaton to a main controller.
  • Page 7 Address 25CH DMX MODE 36CH Slave Auto Speed Auto Sound Sensitivity Mode Manual Control Menue Prism Rot control Signal select Artnet USER MANUAL _ 7...
  • Page 8 Display Off Key Lock Off Celsius Temp Unit Fahrenheit Hold DMX Fail Blackout Square Law INV SQ Law Dimmer Curve Linear S Curve Pan Reverse Off Tilt Reverse Off Encoders Off Auto Fan Set High Silent Password Tilt Color Wheel Cyan Magenta Yellow...
  • Page 9 Set IP 0000.00000.0000.0000 ETHERNET Set Mask IP 0000.00000.0000.0000 Set Universe V1.00 Software Ver Current Time Info . . . Time Info Total Run time . . . LED Run Time 0000.00000.0000.0000 USER MANUAL _ 9...

  • Page 10: Installation Instructions

    INSTALLATION INSTRUCTIONS. This luminaire should be installed by a qualified technician. The fixture should be used in an environment with a temperature between -5°C and +45°C. Do not operate the luminaire outside this temperature range. The luminaire must be hung so that the weight of this unit multiplied by 10 can be sustained for 1 hour without causing the suspension system or the supporting structure to be deformed.
  • Page 11 Dimension USER MANUAL _ 11...

  • Page 12: Dmx Channel List

    DMX 512 Configuration Please refer to below configurations to control the fixtures Attentions: 1. The unit will maintain the last condition until reset if you cut-o ffthe DMX signal. 2. For the channel Function, keep the value for about 5 seconds, then the corresponding function will take into effect.
  • Page 13 Zoom Fine: 0-255 Zoom adjustment Fine Focus: 0-255 Continuous adjustment from near to far Focus Fine: 0-255 Continuous adjustment Fine Auto Focus: 0-45 Auto Focus Off 46-87 88-129 130-171 7m 172-213 10m 214-255 15m Auto Focus Fine: 0-255 Continuous adjustment Fine Color Wheel: 0-15 Open...
  • Page 14 86-92 Color5/Color6 93-99 Color6 100-106 Color6/Color7 107-113 Color7 114-120 Color7/Open 121-127 Open 128-189 Forwards rainbow effect from fast to slow 190-193 No rotation 194-255 Backwards rainbow effect from slow to fast Color Wheel Fine: 0-255 Color Wheel colour change to any position Fine Cyan Color: 0-255 Cyan (0-white,255-100% Cyan)
  • Page 15 Rotating gobos,cont.rotation 1: Open 8-20 Rot.gobo1 21-33 Rot.gobo2 34-46 Rot.gobo3 47-59 Rot.gobo4 60-72 Rot.gobo5 73-85 Rot.gobo6 86-98 Rot.gobo7 99-111 Gobo 1 shake slow to fast 112-124 Gobo 2 shake slow to fast 125-137 Gobo 3 shake slow to fast 138-150 Gobo 4 shake slow to fast 151-163 Gobo 5 shake slow to fast 164-176 Gobo 6 shake slow to fast 177-189 Gobo 7 shake slow to fast...
  • Page 16 Fixed Gobo2: Open 10-19 Gobo 1 20-29 Gobo 2 30-39 Gobo 3 40-49 Gobo 4 50-59 Gobo 5 60-69 Gobo 6 70-79 Gobo 7 80-89 Gobo 8 90-99 Gobo 9 100-109 Gobo 1 shake slow to fast 110-119 Gobo 2 shake slow to fast 120-129 Gobo 3 shake slow to fast 130-139 Gobo 4 shake slow to fast 140-149 Gobo 5 shake slow to fast...
  • Page 17 Animation wheel: 0-127 Animation indexing 128-158 Forwards rotation from fast to slow 159-162 No rotation 163-193 Backwards rotation from slow to fast 194-255 Animation rotation from slow to fast Iris: 0-255 Max.diameter to Min.diameter Iris Fine: 0-255 Iris Fine Prism: 0-127 Open 128-255 Prism...
  • Page 18 Reset、LCD、Fans unused 10-19 Display Off 20-29 Display On 30-39 Display Invert Off 40-49 Display Invert On 50-59 Auto fan control mode 60-69 High fan control mode 70-79 Silent fan control mode 80-89 Square Law 90-99 Inv SQ Law 100-109 Linear 110-119 S Curve 120-129 unused 130-139 unused...

  • Page 19: Error Messages

    ERROR MESSAGES When you turn on the 600W LED profile , it will first perform an automatic reset. The display may show “Err channel is XX” indicating there is a problem with one or more of the channels. “XX” represents channel 1, 2, 3, 4, 5 or 6, which contain the testing sensor for positioning.
  • Page 20 Technicial Parameter LIGHT SOURCE Light source: 460W white LED CT:6500K Life: >30,000H Flicker-free source POWER SUPPL Y AC100-240V 50/60Hz Switch power supply Input power: 550w MOVEMENT Pan movement: 540°/630° optional (16 bit) Tilt movement: 270° (16 bit ) Advanced motion system: auto repositioning, fast, quiet and smooth COLORS CMY color mixing CTO linear...
  • Page 21 Photometric Distance(m) 6° 42° 6° Lux 53100 12600 5820 Diameter(m) 0.52 1.04 1.56 42°Lux 2070 Diameter(m) 3.838 7.67 11.5 USER MANUAL _ 22...

  • Page 22: Static Gobos

    Static GOBOs Rotating GOBOs Animation Wheel Color wheel: 7 dichroic lters +open CMY+CTO USER MANUAL _ 23...
