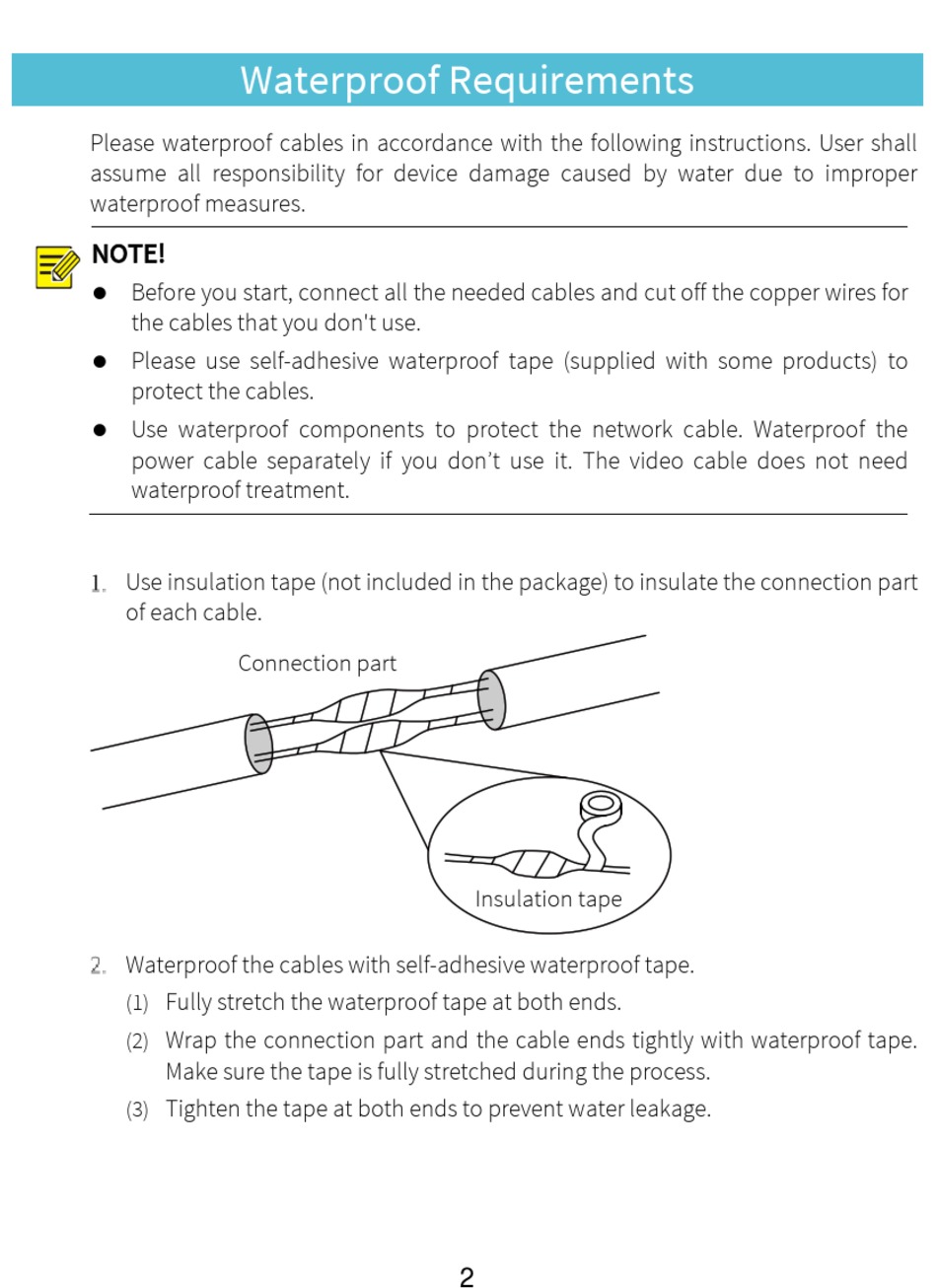

Waterproof Requirements

Please waterproof cables in accordance with the following instructions. User shall

assume all responsibility for device damage caused by water due to improper

waterproof measures.

NOTE!

Before you start, connect all the needed cables and cut off the copper wires for



the cables that you don't use.

Please use self-adhesive waterproof tape (supplied with some products) to



protect the cables.

Use waterproof components to protect the network cable. Waterproof the



power cable separately if you don't use it. The video cable does not need

waterproof treatment.

Use insulation tape (not included in the package) to insulate the connection part

of each cable.

Connection part

Waterproof the cables with self-adhesive waterproof tape.

Fully stretch the waterproof tape at both ends.

(1)

Wrap the connection part and the cable ends tightly with waterproof tape.

(2)

Make sure the tape is fully stretched during the process.

Tighten the tape at both ends to prevent water leakage.

(3)

Insulation tape

Table of Contents

Need help?

Do you have a question about the NVR-108E2-P8-3TB and is the answer not in the manual?

Questions and answers

Summary of Contents for UNIARCH NVR-108E2-P8-3TB

Page 1 Waterproof Requirements Please waterproof cables in accordance with the following instructions. User shall assume all responsibility for device damage caused by water due to improper waterproof measures. NOTE! Before you start, connect all the needed cables and cut off the copper wires for ...
Page 2 Tighten Tighten Tighten Tighten Waterproof tape Wrap the used cables separately Wrap the unused cables together into a bundle Install the supplied waterproof components to the network cable in sequence. CAUTION! You need to mount the rubber ring onto the network cable interface first. If your camera has a DC cable and you will not use it, insert the plug into the interface.
Page 3: Packing List
Packing list The package contents may vary with device model. NVR × 1 Camera × 4 or 8 NVR power adapter × 1 Screw components × 5 or 9 Waterproof components × 4 or 8 Mouse × 1 Network cable (1m) × 1 Network cable (18m) ×...
Page 4: Ports And Interfaces
Ports and Interfaces 2.1 NVR LAN Audio out PoE PORTS AUDIO OUT USB3.0 HAXN AUDIO IN USB2.0 Grounding terminal PoE port Audio in HDMI Power input 2.2 IP Camera LED light Micro SD card slot Network interface Power interface Install the Device The illustrations are for reference only.
Page 5 3 and 4 to secure the hard disk. tighten all the screws. NOTE! Videos are also provided for reference. Please visit https://www.uniarch.cn/web/ video.html and search How to replace HDD for NVR. 3.2 (Optional) Insert Micro SD Card Some cameras support Micro SD card. You need to insert a Micro SD card by openning the bottom cover if you want to use the edge storage function.
Page 6: Install The Camera
Uniarch compatible SD card list. 3.3 Install the Camera Take wall mount as an example. Make sure the wall is strong enough to hold the camera. Please prepare hardware accessories in advance. 1. Paste a drill template on the wall 2.
Page 7: Connect The System
Connect the System The following part shows an example. The actual device may vary. Connect the NVR to a monitor with a HDMI or VGA cable. PoE PORTS AUDIO OUT USB3.0 HAXN AUDIO IN USB2.0 NOTE! The VGA cable is not shipped with device. Connect a router to the NVR’s LAN port with a network cable.
Page 8: System Start-Up
HAXN AUDIO IN USB2.0 NOTE! For more information, visit https://www.uniarch.cn/web/video.html and search How to install Uniarch PoE Security System. System Startup Make sure the cables are connected correctly and the NVR is grounded properly. Use a power supply that meets requirements.
Page 9 For more information, please visit https://www.uniarch.cn/web/video.html and  search PoE security system instruction. Uniarch App Download the Uniarch app and follow the instructions to access the NVR.  Download Uniarch on the App Store (iOS) or on Google Play (Android). ...
Page 10: Copyright Statement
Disclaimer and Safety Warnings Copyright Statement No part of this manual may be copied, reproduced, translated or distributed in any form or by any means without prior consent in writing from our company (referred to as us hereafter). The product described in this manual may contain proprietary software owned by our company and its possible licensors.
Page 11  The product described in this manual is provided on an "as is" basis. Unless required by applicable law, this manual is only for informational purpose, and all statements, information, and recommendations in this manual are presented without warranty of any kind, expressed or implied, including, but not limited to, merchantability, satisfaction with quality, fitness for a particular purpose, and noninfringement.
Page 12  Disable the automatic login and save password features: If multiple users have access to your computer, it is recommended that you disable these features to prevent unauthorized access.  Choose username and password discretely: Avoid using the username and password of your social media, bank, email account, etc, as the username and password of your device, in case your social media, bank and email account information is leaked.
Page 13: Regulatory Compliance
Power Requirements  Installation and use of the device must be in strict accordance with your local electrical safety regulations.  Use a UL certified power supply that meets LPS requirements if an adapter is used.  Use the recommended cordset (power cord) in accordance with the specified ratings. ...
Page 14 environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
Page 15: Technical Support
GUIDE www.uniarch.cn Technical Support If you need any technical help, please contact our technical support team before returning the products. For more Q&A information, please visit our oﬀicial website, www.uniarch.cn Disclaimer: All rights reserved, including ﬁnal interpretation and content amendment.
